FC4200-UM-251-03-9370 28
REPLACEMENT PROCEDURES
6.18 About the Position of the Register Sensor Height

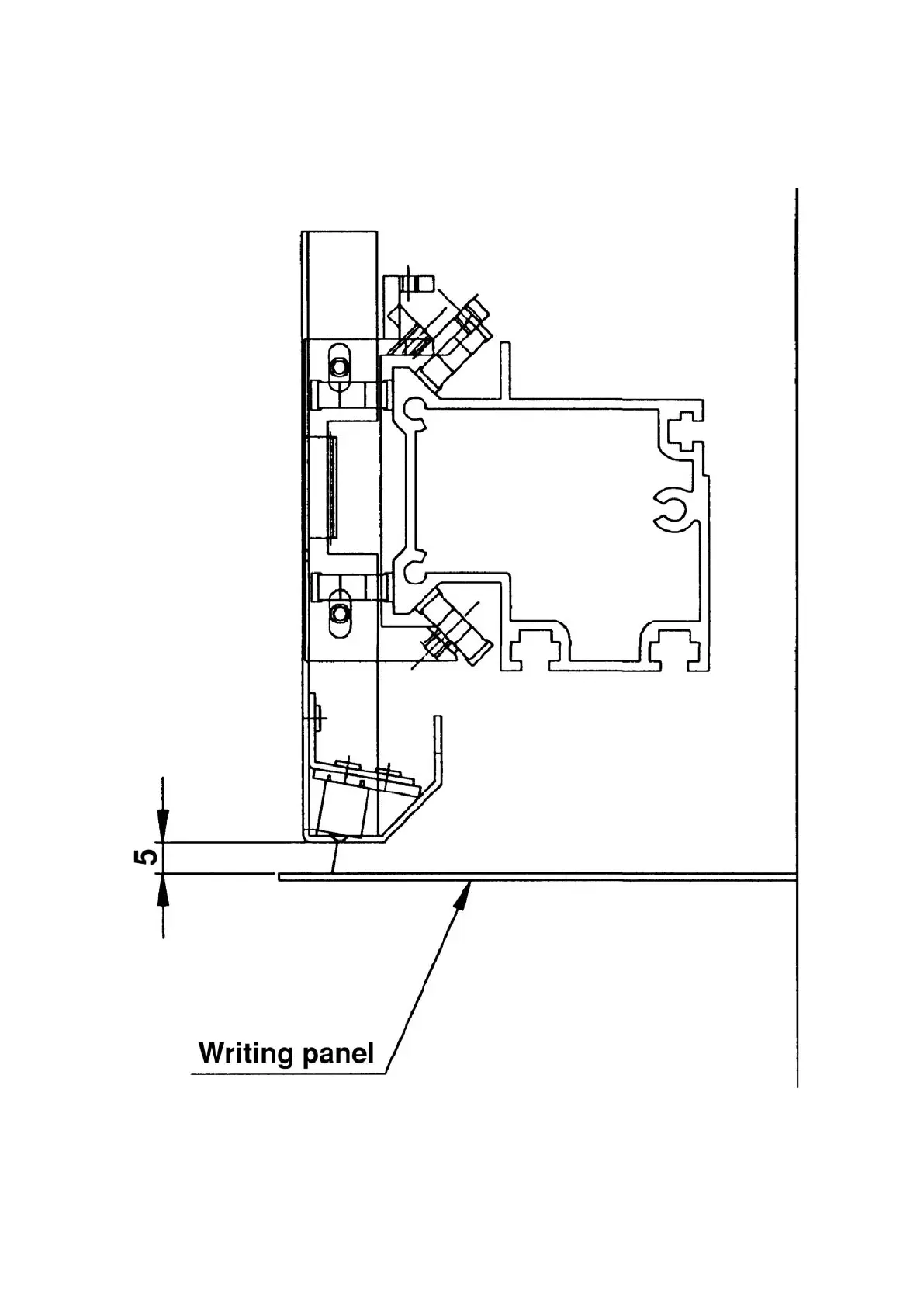

Adjust the sensor height from the sensor edge to the writing panel to 5 mm.
