Section 1

Introduction

The CM-4400 Jupiter Control Module (CM) is designed to control Grass

Valley Routing switchers, specific third party routers, and certain other RS-

422 devices. The devices to be operated are connected to the CM-4400,

which is in turn connected to Jupiter control panels. The CM-4400 is config-

ured using the Jupiter file server (Figure 3 on page 33).

Note Sony machine control is not supported by Jupiter AccuSwitch control soft-

ware.

This manual is for the CM-4400, which only supports the Jupiter AccuS-

witch control software. For all other systems, including the CM-4000

System

Controller, you should refer to that system’s manual. See head

CM-4400 System Controller

The CM-4400 System Controller (Figure 1 and Figure 2 on page 32) pro-

vides a hardware platform for the Jupi

ter AccuSwitch application.

The AccuSwitch application, when c

onnected to and operated by a suitable

automation system, allows deterministic switching of a Crosspoint Bus

router.

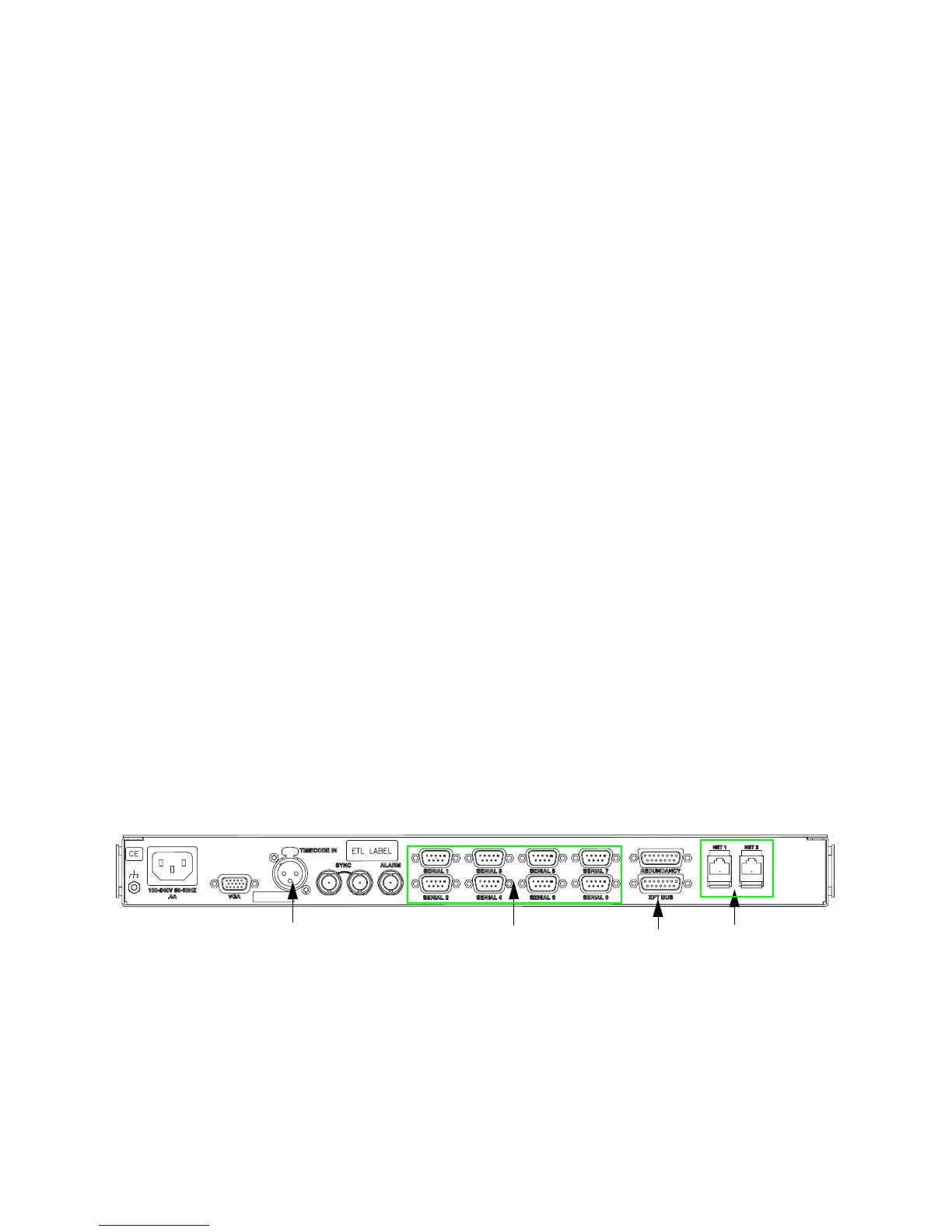

Figure 1. CM-4400 Control Module-Rear

Note Connect the Ethernet cable to the NET 1 port only. NET 2 is for future use.

0718766

00_CM-4400-Rearpn

Time Code 8 Serial ports LANXPT Bus
