Grasshopper 721DT - PTO Shaft & Clutch Assembly

42

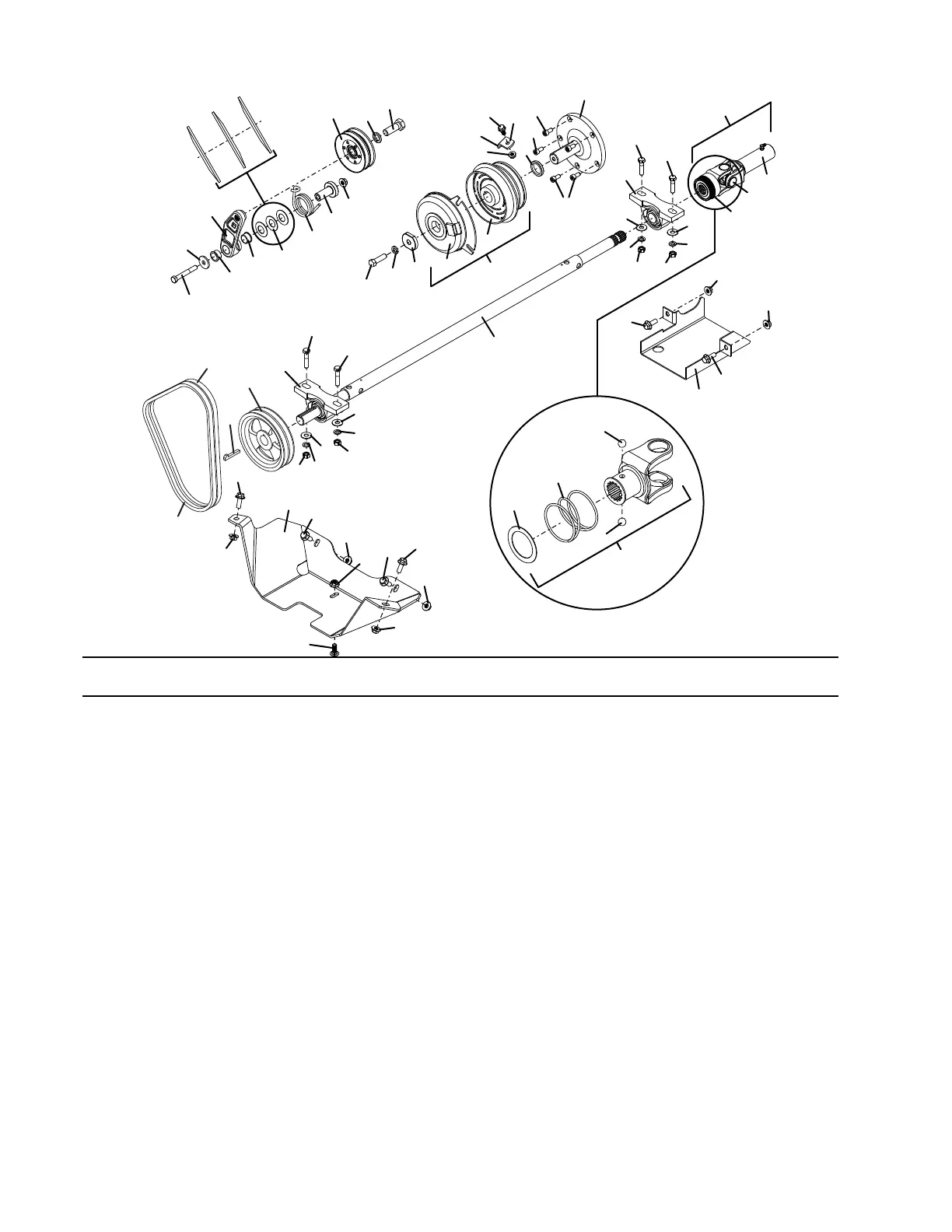

PTO SHAFT & CLUTCH ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
01-07073F
Rev. 01-17
1 644727 Power Shaft
2 122044 Pillowblock Bearing
3 398914 Universal Half Sleeve – QD
(includes items 4 – 6)
4 401019 Splined Yoke - Quick Disconnect
(includes items 7-9)
5 121010 Cross & Bearing
6 401017 Yoke with Sleeve
7 263660 External Retainer
8 283525 Compression Spring
9 300014 Steel Ball
10 415660 Sheave
11 281588 Gib Key .25 x 1.5
12 388771 Electric Clutch
13 388875 Field Assembly w/Brake
14 388866 Armature & Rotor Assembly
15 902583 Spacer – 1.125 x .225
16 257039 Washer 1.75 x 1.5 Double D
17 257412 Lock Washer .375
18 243337 Bolt .375-24 x 1.25 Grade 8
19 732407 Anti-Rotation Bracket
20 422087 Clutch Bracket Cover
21 253192 Whiz Bolt .312-18 x .75
22 253035 Whiz Nut .312-18
23 824467 Idler Arm (includes items 24-26)
24 121756 Flange Bearing - Oilite
25 121651 Bearing Pedestal
26 257319 Spring Washer
27 243360 Bolt .375-16 x 2.75
28 257040 Washer .375
29 253043 Whiz Nut .375-16
30 415610 Idler Pulley
31 243805 Bolt .625-11 x 1.75
32 257452 Lock Washer .625
33 644424 Sheave Guard
34 729287 Shield – PTO Shaft
35 253203 Whiz Bolt .375-16 x 1
36 243340 Bolt .375-16 x 1.5
37 381917 Belt
38 284428 Torsion Spring
39 774020 Washer .406
40 254450 Nut .375-16
41 247253 Carriage Bolt .375 x 1
42 824415 Shaft – Clutch Stub 1.125
43 270075 Socket Head Screw M8-1.25 x 16
44 243343 Bolt .375-16 x 1.75
