Grasshopper 721DT User Manual

52

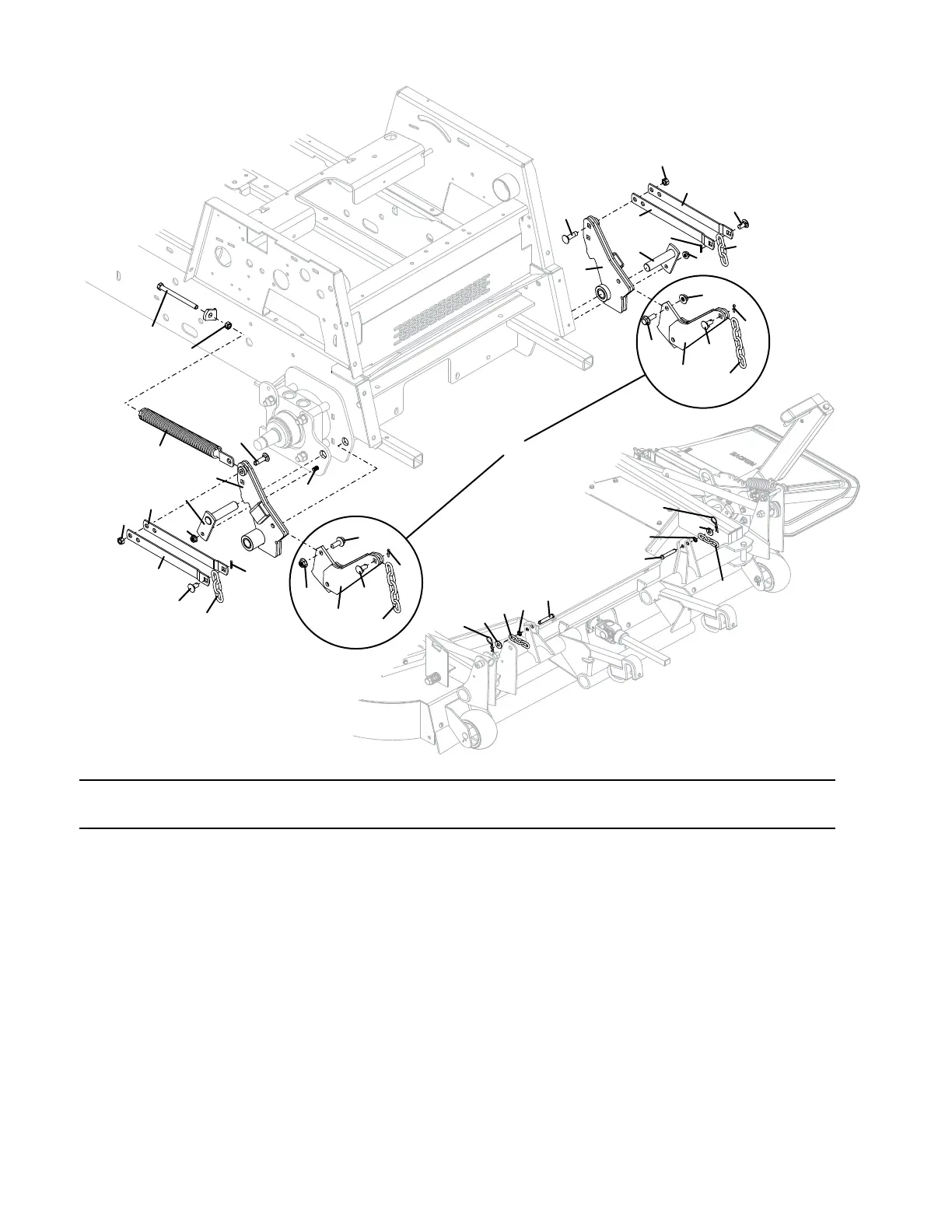

TRACTION KIT
04061 / 07066
Rev. 04-17
Item Order Description
No. No.
Item Order Description
No. No.
1 603699 Rocker w/Bearing Rt.
121764 Oilite Bearing
2 603700 Rocker w/Bearing Lt.
121764 Oilite Bearing
3 644635 Pin
4 604838 Spring Assembly
5 243395 Bolt .375-16 x 4.5 Full Thread
6 254450 Nut .375-16
7 247254 Carriage Bolt .375 x 1.375 Special
8 253890 Lock Nut .375-16
9 732410 Lift Strap
10 253192 Whiz Bolt .312-18 x .75
11 820320 Lift Chain (5 links)
12 253035 Whiz Nut .312-18
13 604708 Rocker Arm Extension Kit (opt.)
(includes 2 each of
items 11 & 18-22)
14 260523 Hair Pin .094 x 2
15 257040 Washer .375
16 261362 Clevis Pin .375 x 1.75
17 262950 Push-on Retainer
18 261339 Clevis Pin .375 x .875 Sq. Shank
19 260648 Cotter Pin .125 x .5
20 644706 Extension - Rocker Arm
21 253203 Whiz Bolt .375-16 x 1
22 253043 Whiz Nut .375-16
23 820317 Lift Chain (3 Links)
21
22
19
18
11
20
21
19
22
18
20
11
1
2
3
3
12
10
7
4
8
9
9
18
23
19
5
6
7
8
9
9
12
18
23
19
07066
13
NOTE: Item 13 is not used with
33, 34, 35, 96, 97 & 98 series decks;
use with all other decks and
attachments requiring traction
kit or hydraulic lift.
Not included with tractor assembly.
14
15
23
17
16
16
17
23
15
14
04061
