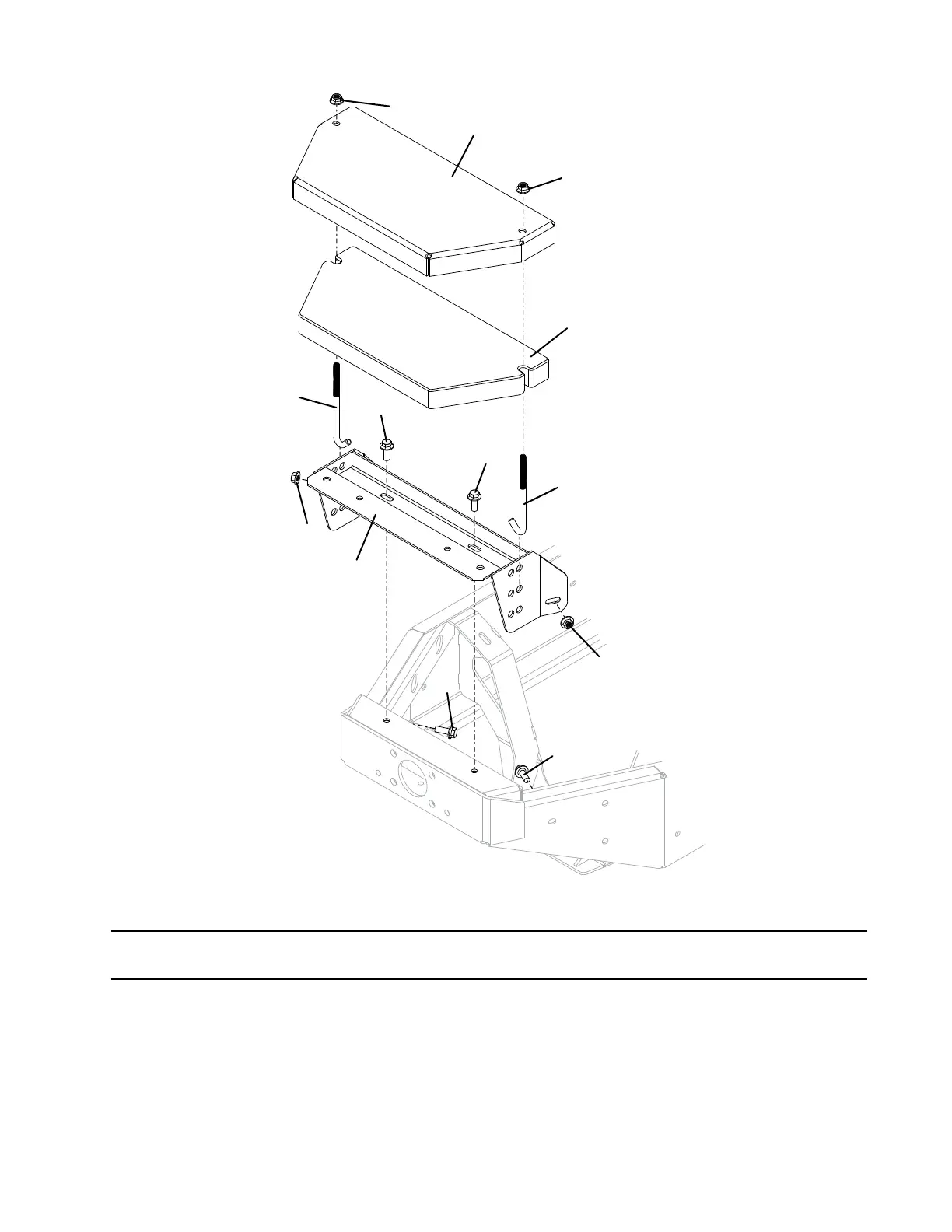

53
COUNTER
WEIGHT
MOUNT
KIT
Item Order
Description
No.
No.
Item Order
Description
No.
No.
503220
Counterweight
Mount
Kit
1
644915
Weight Mount
2
729691
Weight Cover
3
240151
Hook Bolt .375-16 x 6
4
253203
Whiz Bolt .375-16 x 1
5
253043
Whiz Nut .375-16 Lg Flange
*6
503218
Counterweight - 50#
*
Not Included in Kit
01-10133
Rev
. 05-10
1
2
3
3
4
4
4
4
5
5
5
6*
5
10133
52
54
Table of Contents
Table of Contents
3
Specifications
5
Safety Symbols
6
Safety Decals
7
Training
8
Preparation
8
Fuel Handling Safety
8
Filling the Fuel Tank
9
Operational Safety
9
Maintenance Safety
10
Storing Safely
11
General Information
12
Measurement Conversion
13
Bolt Size and Tightening Recommendations
13
Operation
14
Controls and Switches
14
Prestart Check List
14
Mounting and Dismounting the Tractor - with Mower Deck
16
Mounting and Dismounting the Tractor - with All Other Attachments
16
Starting the Engine
16
Cold Weather Starting Tips
17
Hight Temperature Shutdown
17
Uneven Terrain
17
Stopping Engine
18
Moving Unit Without Power
19
Steering Lever Operation
19
Loading / Transporting Machine
21
Lubrication and Maintenance
22
Lubrication
22
Capacities
22
Tire Air Pressure
22
Drive System
22
Crankcase Oil and Air Filter
22
Cooling System
22
Battery Maintenance
23
Checking Drive System Fluid Level
23
Changing Drive System Fluid and Filter
23
Adjustments and Troubleshooting
25
Loss of Power in the Drive System
25
No Positive Neutral Position
25
Neutral Adjustment
25
Fuel Solenoid Adjustment
25
Testing Fuel Solenoid
26
Engine Troubleshooting
26
Wiring Circuit Board Removal
27
Parking Brake Adjustment
27
Clutch Removal/Replacement
28
Clutch/Brake Burnishing
28
Steering Lever Adjustment
28
Foot Rest Block Installation
29
Adjusting Traction Spring Tension
30
Removing Mower Deck from Traction Kit Equipped Tractor
30
Rear Weight Requirements
30
Tractor Assembly
32
Engine Assembly
34
Drive Assembly
36
Brake Assembly
38
ROPS & Seat Assembly
40
PTO Shaft & Clutch Assembly
42
Steering Assembly
43
Wiring Diagram
44
Standard Universal Harness
46
High Temperature Wire Diagram
47
Tail Wheel Options
48
Optional Hydraulic Lift Assembly
50
Traction Kit
52
Counterweight Mount Kit
53
