Grasshopper 721DT User Manual

44
Item Order Description
No. No.
Item Order Description
No. No.

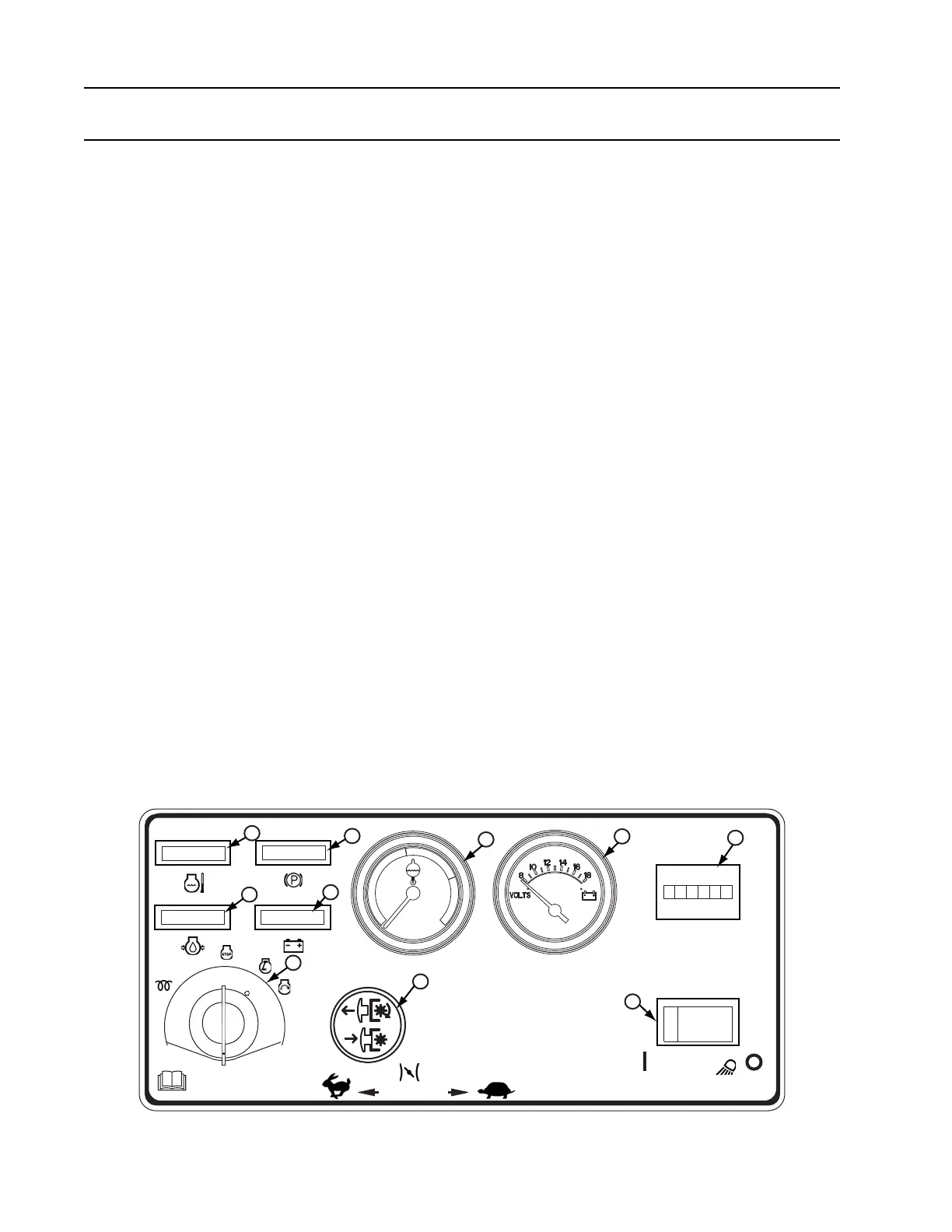

WIRING DIAGRAM - 721DT
605889 Wiring Assembly - 721DT
161117 Decal - Console
1 141165 Coolant Temperature Gauge
2 141203 Voltmeter Gauge
3 182327 Oil Indicator Light
4 182328 Temperature Indicator Light
5 182325 Battery Indicator Light
6 182326 Brake Indicator Light
7 184179 Light Switch (optional)
8 183925 Clutch Switch
9 183827 Ignition Switch
10 183860 Safety Switch - Rt. Steering
720160 Rt. Steering Switch Mount
11 183860 Safety Switch - Lt. Steering
720161 Lt. Steering Switch Mount
12 182261 Worklamp LED Flood (optional)
(includes item 13)
13 182251 Bezel (optional)
14 388840 Cable Assembly
15 603350 Fuel Solenoid
16 184220 Module - Switch Interlock
17 181735 Fuse Holder
181470 Fuse 30 Amp Auto
18 141224 Temperature Sender
19 183871 Seat Safety Switch
20 184266 Relay
21 181725 Fuse Block ATM
181726 Cover - Fuse Block
270821 Bolt - Hex Flange M6
184985 Cable Seal 5mm
184986 Cavity Plug 6.2mm
162341 Decal - Fuse
22 181456 Fuse 30 Amp Auto ATM
181453 Fuse 15 Amp Auto ATM
181452 Fuse 10 Amp Auto ATM
181451 Fuse 7.5 Amp Auto ATM
23 141551 Hour Meter
24 183894 Brake Switch
25 185530 Voltage Regulator
26 180130 Battery - 12V
243309 Bolt .375-16 x .375 Washer Head
644163 Battery Box
644478 Battery Box Lid
754135 Battery Hold Down Bracket
27 180313 Battery Cable 14"
425219 Starter Terminal Boot
425223 Battery Terminal Boot
28 180282 Ground Cable 20"
29 423690 Spacer - PC Board Support
30 184973 Weather Pack Connector
(Optional)
31 722747 Mount - Tilt Switch (Optional)
32 144950 Hydraulic Solenoid (Optional)
33 183710 Tilt Switch (Optional)
34 183954 Toggle Switch (Optional)
07-16004A
Rev. 03-17
PTO CLUTCH
PULL
OUT TO
ENGAGE
THROTTLE
LIGHTS
ON
OFF
161117
EQUIPPED WITH HIGH
TEMP SHUTDOWN
3
TEMP
4
OIL
BRAKE
6
5
CUT OUT
1
2
23
HOURS
7
8
S
t
a
r
t
e
r
S
w
i
t
c
h
S
t
a
r
t
C
o
n
t
a
c
t
P
r
e
h
e
a
t
9
BATTERY
