Grasshopper 721DT User Manual

43

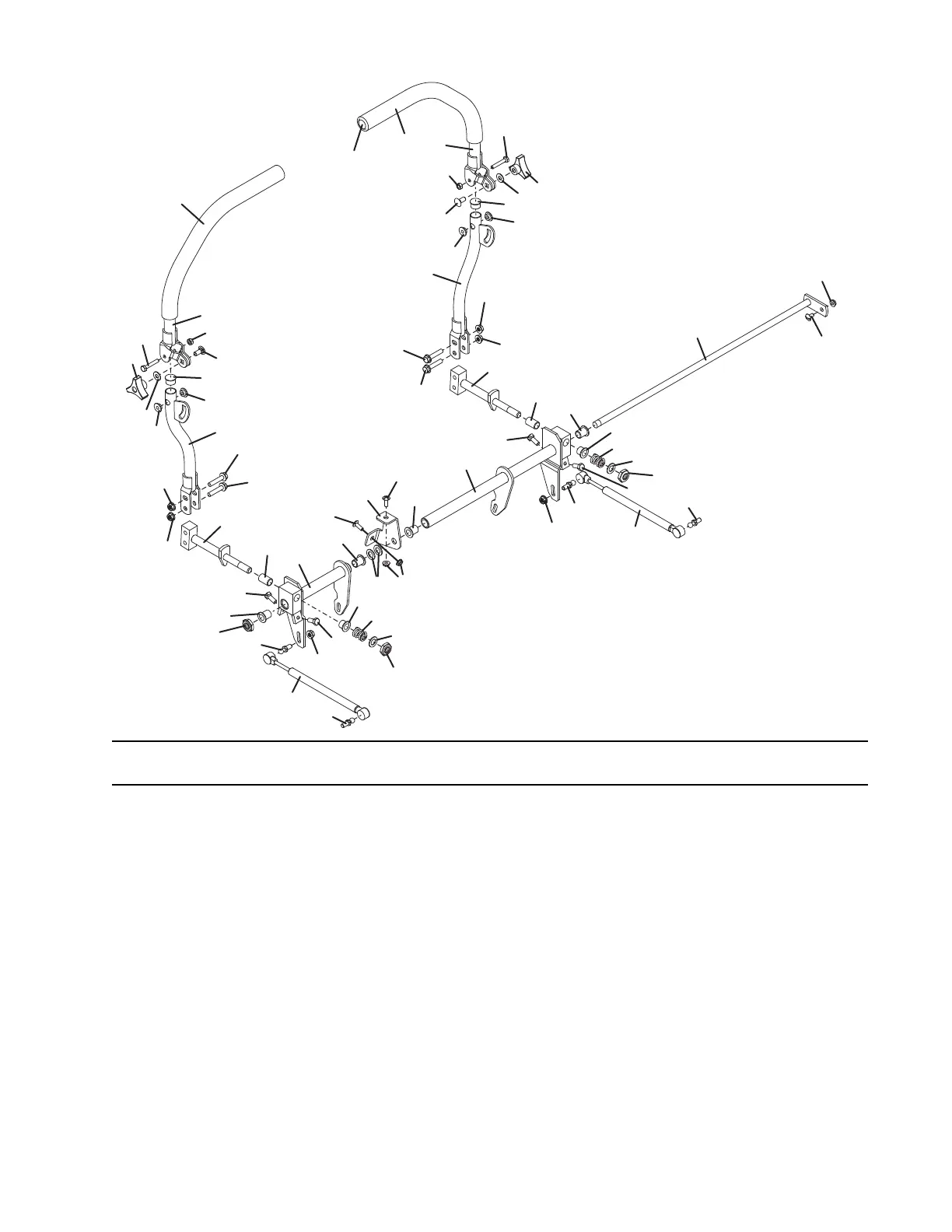

STEERING ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
05-13046A
Rev. 06-16
1 645748 Steering Lever – Lower Rt.
2 645749 Steering Lever – Lower Lt.
3 645744 Steering Lever – Upper Rt.
4 645745 Steering Lever – Upper Lt.
5 643926 Steering Lever Mount
6 253195 Whiz Bolt .312-18 x 1.5
7 253035 Whiz Nut .312-18
8 422063 Plug – Nylon .75
9 422508 Step Bushing
10 243035 Bolt .25-20 x 1.5
11 253850 Nut .25-20 – Lock
12 247130 Carriage Bolt .312 x .75
13 257019 Washer .25 – Hard
14 252858 Thumb Screw .312-18 3 Prong
15 422179 Grip – Foam
16 422095 Vinyl Cap
17 604608 Pivot w/Stop & Bearings Rt.
(includes items 19, 20, 30 & 31)
18 604609 Pivot w/Stop & Bearings Lt.
(includes items 19, 20, 30 & 31)
19 422559 Sleeve Bearing w/Flange
20 243197 Stop Bolt .312-18 x .75
21 257063 Nylon Washer
22 283324 Compression Spring
23 253470 Nut .5-13 Nylon Insert
24 644601 Steering Pivot
25 253179 Whiz Bolt .25-20 x .75 Phil Truss
26 253025 Whiz Nut .25-20
27 285032 Damper with Ball Socket
28 265680 Ball Stud
29 729700 Support – Steering Rod
30 422557 Sleeve Bearing
31 422556 Sleeve Bearing w/Flange
13046A
16
15
1
7
7
5
6
6
30
19
23
31
22
20
21
23
20
28
27
28
7
15
2
6
6
7
5
7
30
25
26
17
25
26
29
19
19
21
31
22
21
18
20
7
23
20
19
28
24
27
28
3
4
8
8
9
9
9
9
10
10
11
11
12
12
13
14
13
14
25
