Grasso RC6 - Main Dimensions and Space Requirements; Dimensioned Sketch of Compressor RC46; Dimensioned Sketch of Compressor RC46 W

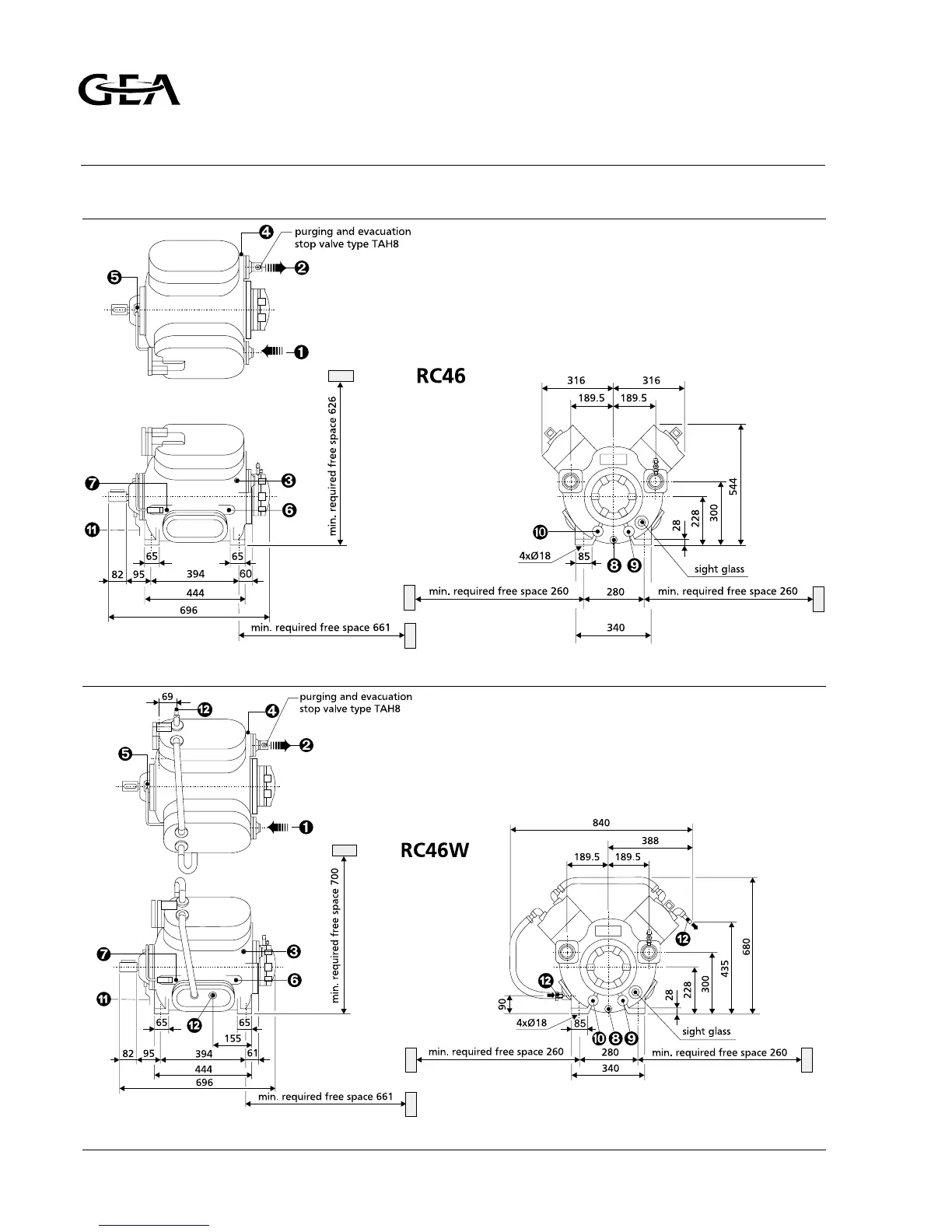

Fig. 4.1a Dimensioned sketch of compressor RC46
4.2 MAIN DIMENSIONS AND SPACE REQUIREMENTS (for connections see table 4.2 )
All dimensions in mm.
For unobstructed removal of the crankcase inspection side covers,
a block of at least 40 mm height should be placed under each foot
when installing the compressor on a foundation or base frame.
Fig. 4.1b Dimensioned sketch of compressor RC46W
For unobstructed removal of the crankcase inspection side covers,
a block of at least 40 mm height should be placed under each foot
when installing the compressor on a foundation or base frame.
Refrigeration Division
Grasso
4. GENERAL DATA
page C2.2 Installation and Maintenance Manual RC(U)6 v001.99.01.en
