Grasso RC6 - Dimensioned Sketch of Compressor RC66; Dimensioned Sketch of Compressor RC66 W

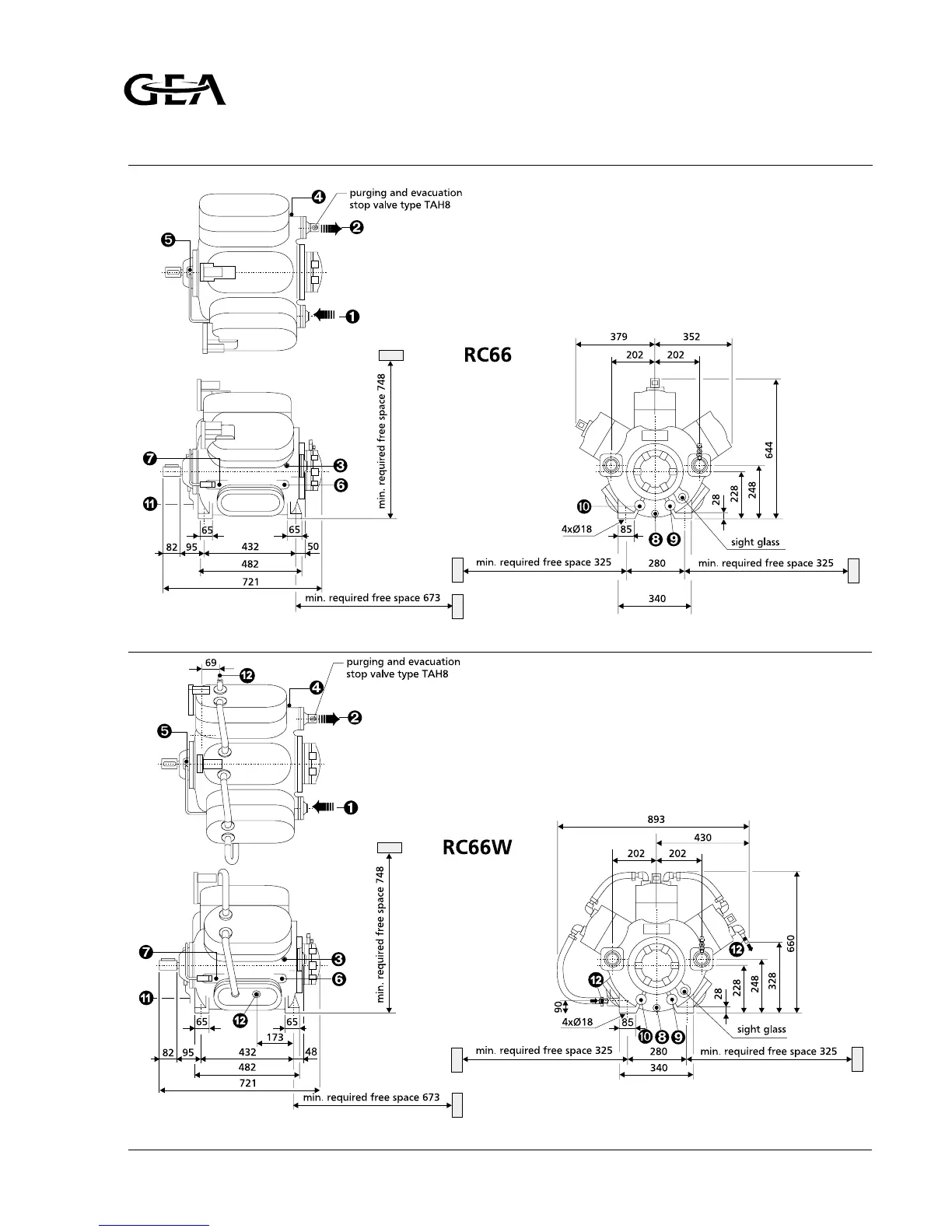

Fig. 4.2a Dimensioned sketch of compressor RC66
For unobstructed removal of the crankcase inspection side covers,
a block of at least 40 mm height should be placed under each foot
when installing the compressor on a foundation or base frame.
Fig. 4.2b Dimensioned sketch of compressor RC66W
For unobstructed removal of the crankcase inspection side covers,
a block of at least 40 mm height should be placed under each foot
when installing the compressor on a foundation or base frame.
