Grasso RC6 - Dimensioned Sketch of Compressor RC86; Dimensioned Sketch of Compressor RC86 W

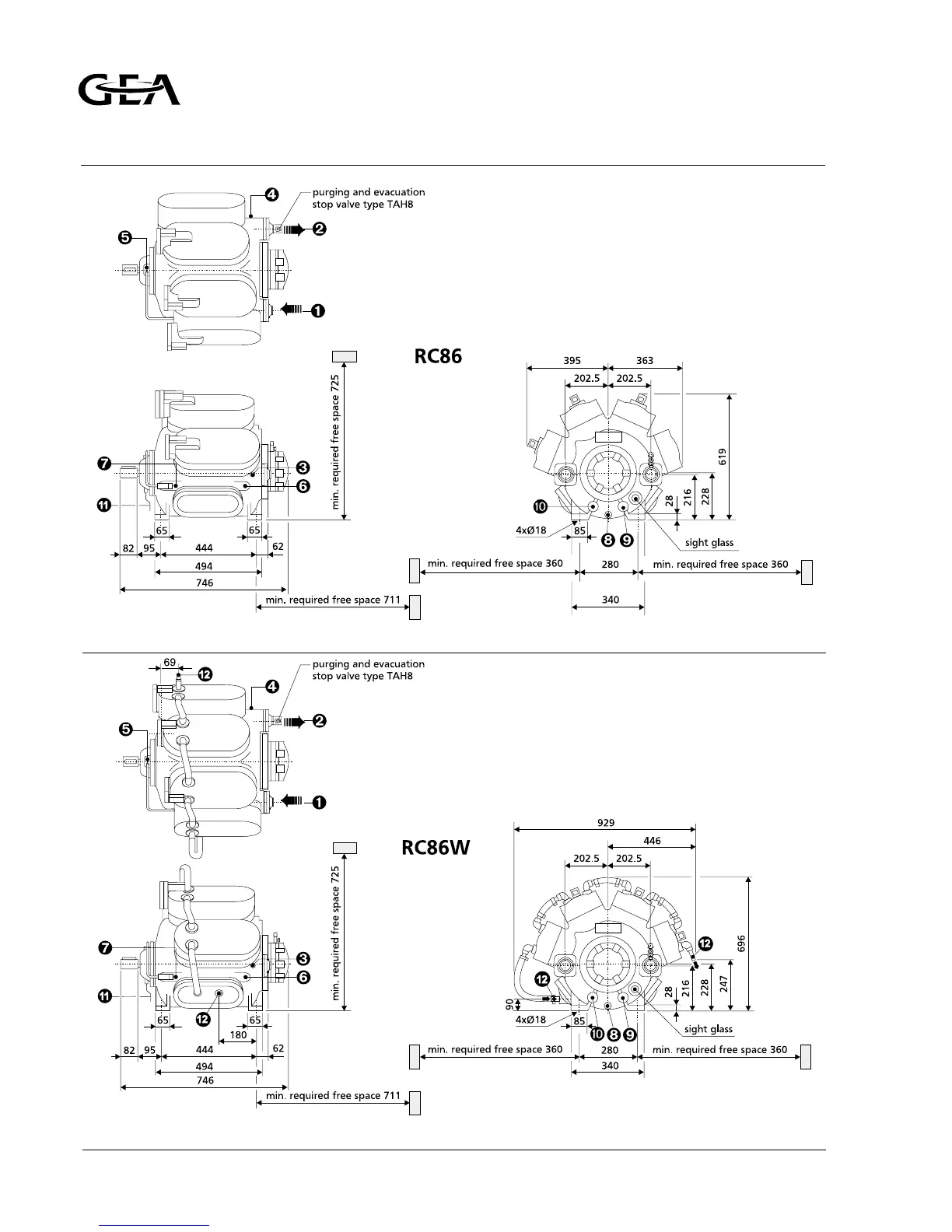

Fig. 4.3b Dimensioned sketch of compressor RC86W
Fig. 4.3a Dimensioned sketch of compressor RC86
For unobstructed removal of the crankcase inspection side covers,
a block of at least 40 mm height should be placed under each foot
when installing the compressor on a foundation or base frame.
For unobstructed removal of the crankcase inspection side covers,
a block of at least 40 mm height should be placed under each foot
when installing the compressor on a foundation or base frame.
