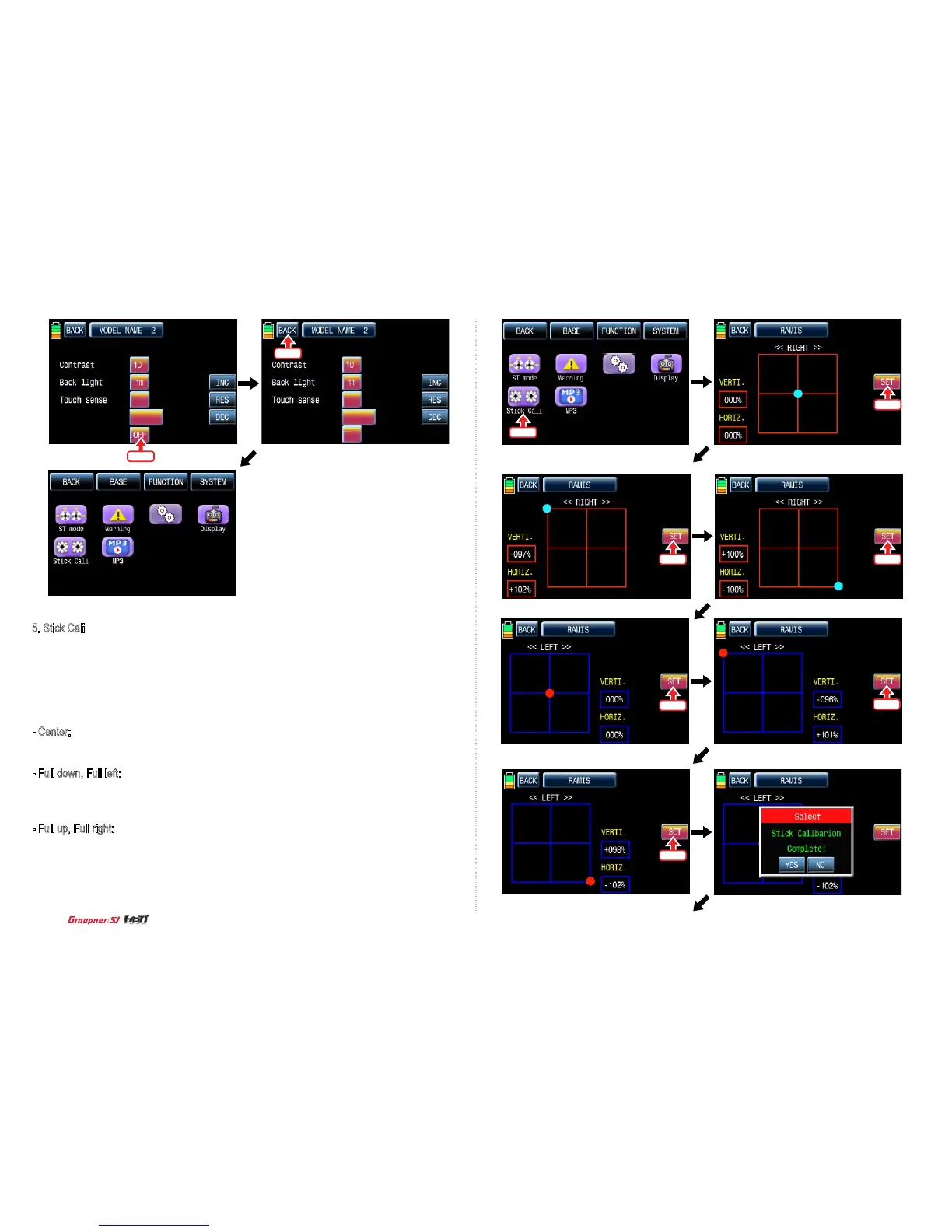

5. Stick Cali
It is used to calibrate the stick’s neutral position
Touch “Stick Cali” icon in the system menu page to call “Stick Cali’ page. The right stick and the
left stick of transmitter are calibrated in turn and the stick position is indicated on VERTI, HORIZ
with percentage
- Center: When the dot is centered on the graph, move and hold the stick at the desired neutral
position and touch “SET” icon then the stick’s neutral position is saved.
- Full down, Full left: When the dot is at the corner of the top left on the graph, move and hold the
stick at the desired end position of the top left and touch “SET” icon then the stick’s Full down/Full
left position is saved.
- Full up, Full right: When the dot is at the corner of the bottom right on the graph, move and hold
the stick at the desired end position of the bottom right and touch “SET” icon then the stick’s Full
up/Full right position is saved.
After Full up and Full right setup, ”Stick Calibration complete!” message is popped up. Now, touch
“Yes” icon to complete the Stick Calibration setup. Touch the “Back” icon to return to SYSTEM
menu page.
