4
Frequency band
M o d u l a t i o n
Output power
Current drain
Operating voltage
2.4~2.4835GHz
FHSS
100mW
approx 125mA
3.4V~6V
Transmitter mz-24 Receiver GR-24L
2.4~2.4835GHz
FHSS
-
approx 70mA
3.6V~8.4V

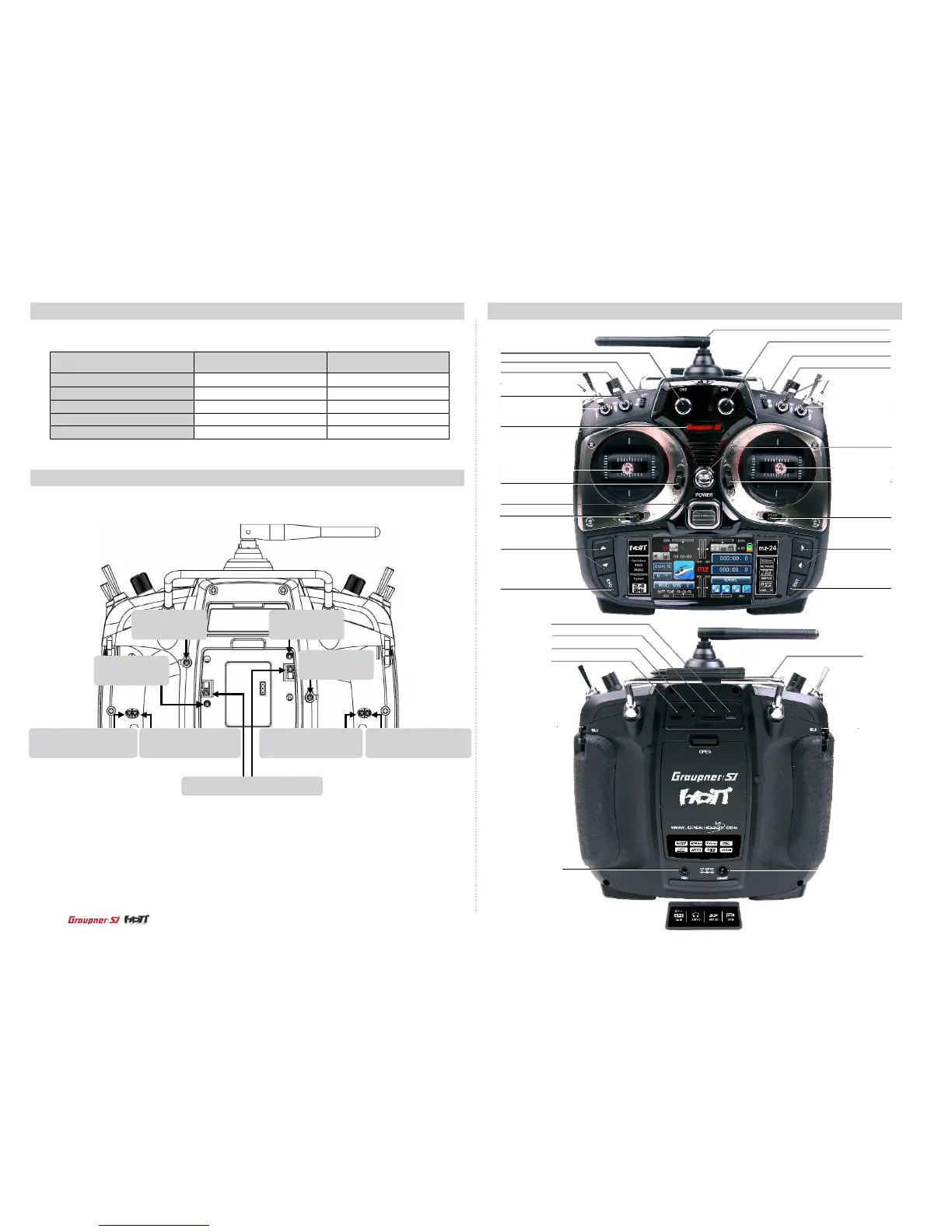

4. SPECIFICATION
You may release the stick tension with ST1 or ST3 tension release bolts. Turn the bolts
clockwise then the stick tension is released
- Mode 1: ST1 tension release bolt is used
- Mode 2: ST3 tension release bolt is used
The other can be adjusted for your purpose
ST1 tension adjustment
bolt for helicopter type
ST1 tension adjustment
bolt for airplane type
ST3 tension adjustment
bolt for airplane type
ST3 tension adjustment
bolt for helicopter type
6. TRANSMITTER CONTROL IDENTIFICATION
5. STICK TENSION ADJUSTMENT
ST4 tension
adjustment bolt
NECKSTRAP LUG
DV4
DT2
DV2
DT1
DV1
S5 SWITCH
S2 SWITCH
S1 SWITCH
POWER SWITCH
POWER SWITCH
ELEV/RUDD
STICK
ELEV TRIM
RUDD TRIM
AILE TRIM
S3 SWITCH
S4 SWITCH
THRO TRIM
ANTENNA
DV3
ENT BUTTON
ESC BUTTON
THRO/AILE STICK
DIRECTION
BUTTON
DIRECTION
BUTTON
R S
TELEMETRY
EARPHONE
SD CARD
USB
DSC
L S
Charge Socket
TX Handel
ST2 tension
adjustment bolt
ST3 tension
adjustment bolt
ST1, ST3 tension release bolt
ST1 tension
adjustment bolt
