12. Buttery (Glider)

It is used in glider type only. This function allows powerful brake operation by simultaneously

raising the left and right ailerons and lowering the aps. Buttery produces an extremely

efcient landing conguration by ying at a slower speed.

CAUTION: We recommend that you do several tests on high altitude to make the best use

of this function.

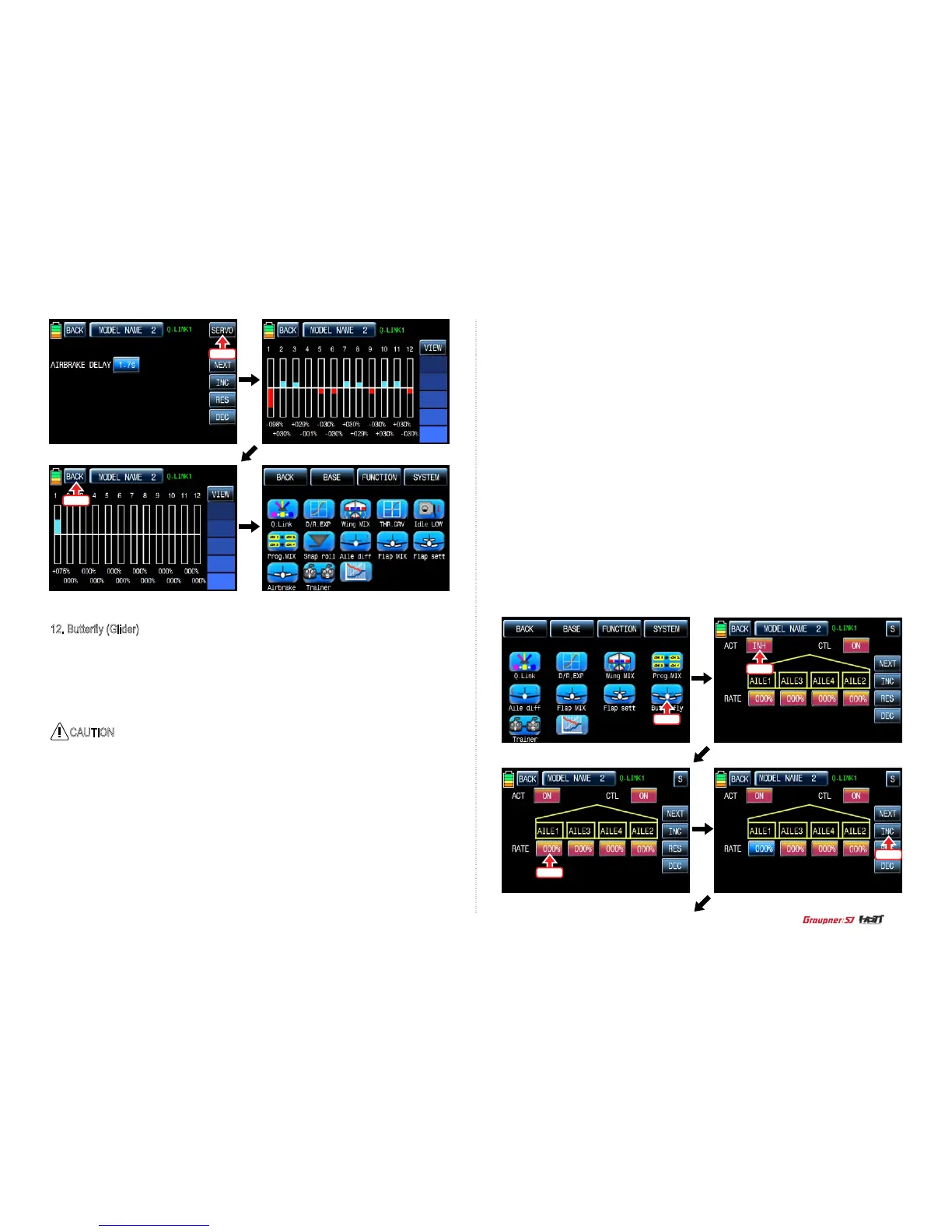

For the setup of buttery function, touch “Buttery” icon to access to the Buttery setup page.

Touch “INH” icon to switch to “ON” to call the “Select” message popup and move the switch or

stick or volume with your choice then that switch or stick or volume is designated as on/ off key

and then the key direction setup page appears. You may select ON or OFF by touching icons.

When the key is moved to the direction of ON, the function is operated. Touch “BACK” icon to

return to the Buttery setup page. The setup pages of AILE, FLAP, ELEV and BUTTERFLY

OFF appear by touching “NEXT” button. AILE, FLAP values are activated in blue by touching

and adjusted with INC and DEC buttons. ELEV can be set with curve in the graph. You need to

mark the point on graph rst and then adjust the operation curve with “DEC”, “INC”, X-axis and

Y-axis buttons.

Touch “ST OFF” to change to “ST ON” then the throttle position line appears on graph. Move

throttle stick and place the line at the desired position between point “L” and “H” then touch

“ENT” icon on the bottom right. Now the new point is marked in graph. You can mark ve

points between point “L” and “H” in the same way. Touch ST ON” to change to “ST OFF” and

complete the point setup. Now touch “DEC” or “INC” button to select point and touch X-axis or

Y-axis to activate and then touch DEC” or “INC” button to adjust the operation curve.

If you touch OFF icon in Curve line, it is changed to ON and the operation curve is smoother.

Now touch “NEXT” icon to call “BUTTERFLY OFF” setup page. This function is used to decide

the throttle stick position where the buttery function is off. Move and hold the throttle stick to

the desired position for the function off and touch the value then the stick position is decided

and the assigned value is displayed. The buttery function is operated under the assigned

value and it is not operated over the assigned value. When the setting for buttery is complet-

ed, touch “S” icon on the top right to access to Servo page. In Servo page, you may check the

setup value of AILE, FLAP, and ELEV.
