2.2 Desktop Flexible Media Support System Installation (Jaguar61)
Step 1
Please examine the following items in stand carton’s accessory box:
1 set of Roll Media Flange (2 pieces)
1 set of Roll Holder (2 pieces)
1 set of Roll Holder Guide Bushes (4 pieces)
1 set of Roll Holder Support (2 pieces)
1 set of Desktop Support Bracket (2 pieces)
4 pieces of Plastic Foot
4 pieces of M4 screws
12 pieces of M6 screws
1 piece of M4 L-shape hexagon screw driver
1 piece of M5 L-shape hexagon screw driver
1 piece of M6 L-shape hexagon screw driver (for adjusting the screws of Roll Holders)

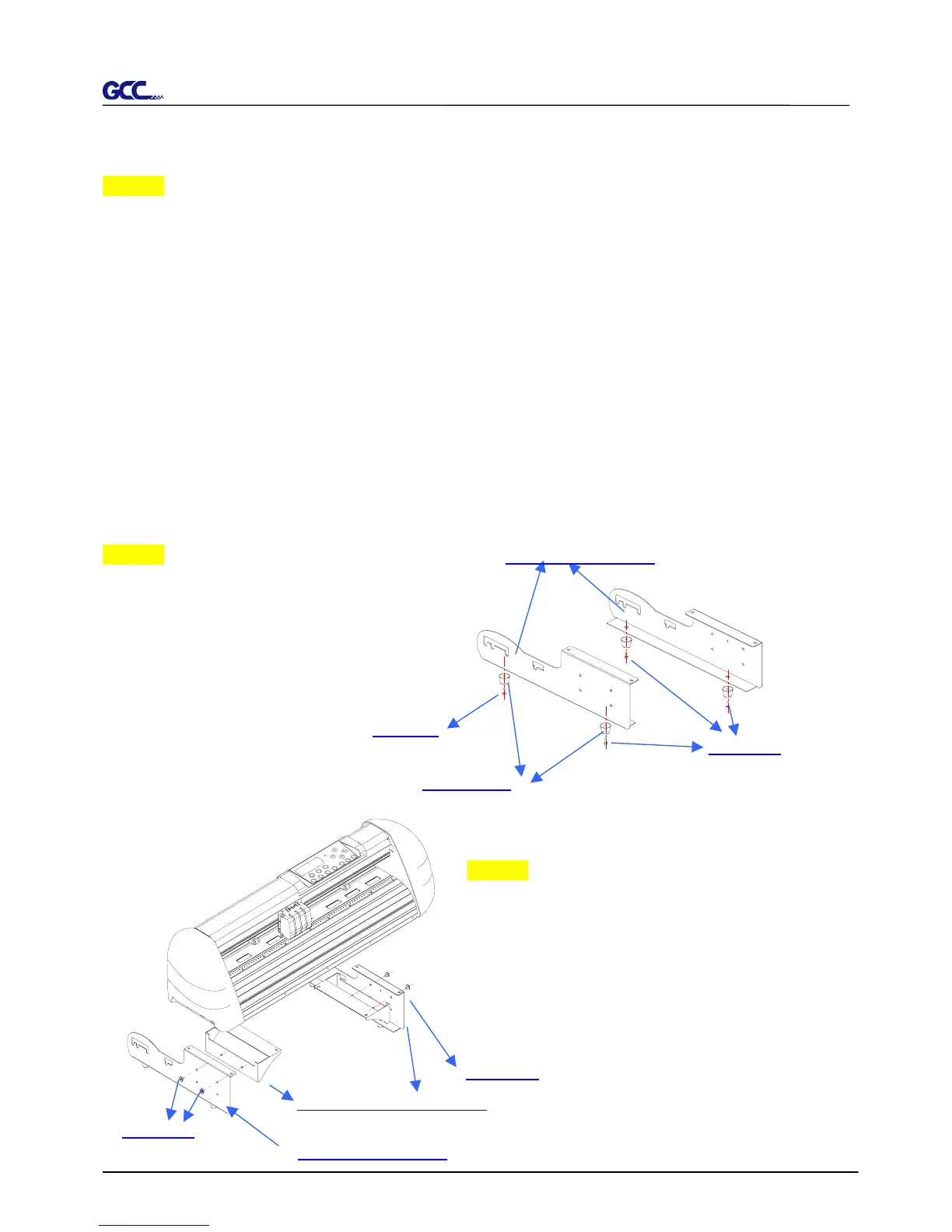

Step 2
Put the 4 Plastic Foot under the Roll Holder
Support and insert the M4 screw into the hole of
Plastic Foot and tighten them with the M4
L-shape screw driver. (Figure 2-3-1)
Step 3 Position the Desktop Support Brackets
beside the Roll Holder Support and insert M6
screws into the Roll Holder Support and tighten
them with M5 L-shape screw driver. (Refer to
Figure 2-3-2 at the left).
Roll Holder Support
Plastic Foot
M4 screw
M4 screws
Desktop Support Brackets
M6 screws
Roll Holder Support
M6 screws
Figure 2-3-2
To Next Page
