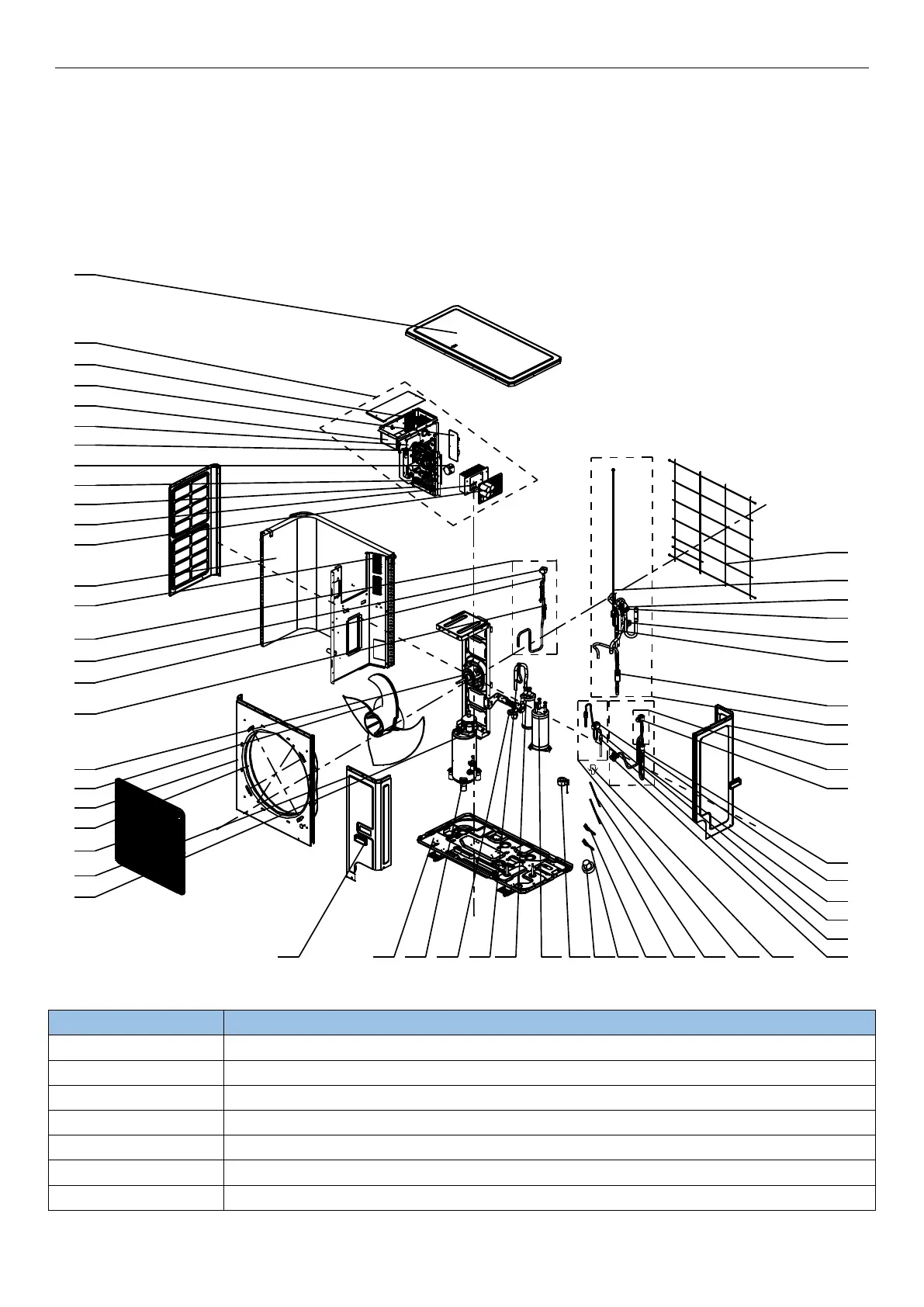

4.6 Explosive View and Lists of Parts
4.6.1 ODU Explosive View and Lists of Parts
FLEXX36HP230V1AO (Product code: CF090W1530)
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26 27 29 30 31 32 28 34 35 36 37 39 41
42
43
44
45
46
47
49
50
51
52
54
55
56
57
6
40 3833
53
48
No.
Material name
1
Coping
2
Electric Box Assy
3
PFC Inductance
4
Filter Board
5
Reactor Sub-Assy
6
Power Switch
7
Main Board
