Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
69
4.5 Removal of Major Components
4.5.1 Removal of ODU Major Components

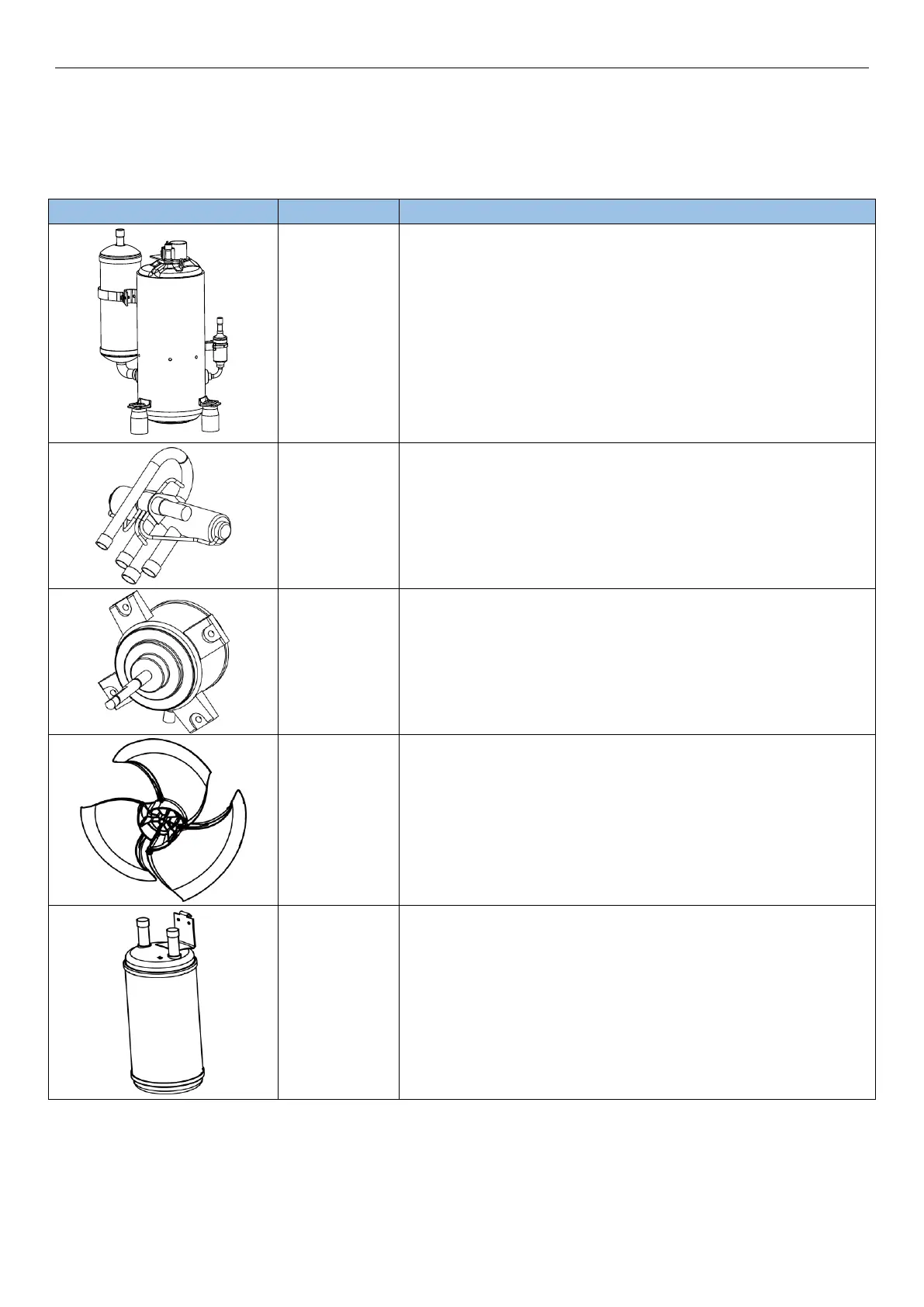

Name
Function
Compressor
Through compression, the low pressure refrigerant occupies a less space.
As its pressure and temperature both rise, it becomes high pressure and
high temperature refrigerant. It is the power drive of the system.
4-way valve
It is used to change directions, the flow of refrigerant in cooling/heating.
Motor
The power drive of the fan. It enables the fan to run so as to provide
smooth currents of air for forced convection and heat exchange of
condenser and evaporator.
Fan
It is used to provide smooth currents of air for forced convection and heat
exchange of condenser and evaporator.
Gas liquid
separator
Installed at the suction side of compressor, it can separate the liquefied
refrigerant from the gaseous refrigerant to make sure that only gaseous
refrigerant will be sucked into the compressor. If liquefied refrigerant gets
inside the compressor, ineffective compressor or slugging phenomenon
will occur.

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
