GREE DC INVERTER HEAT PUMP CONDENSING UNIT
95
Removal of gas liquid separator
NOTE: Before removing the gas liquid separator, make sure there is no refrigerant in the pipeline and power is cut off.
Step
Work instruction

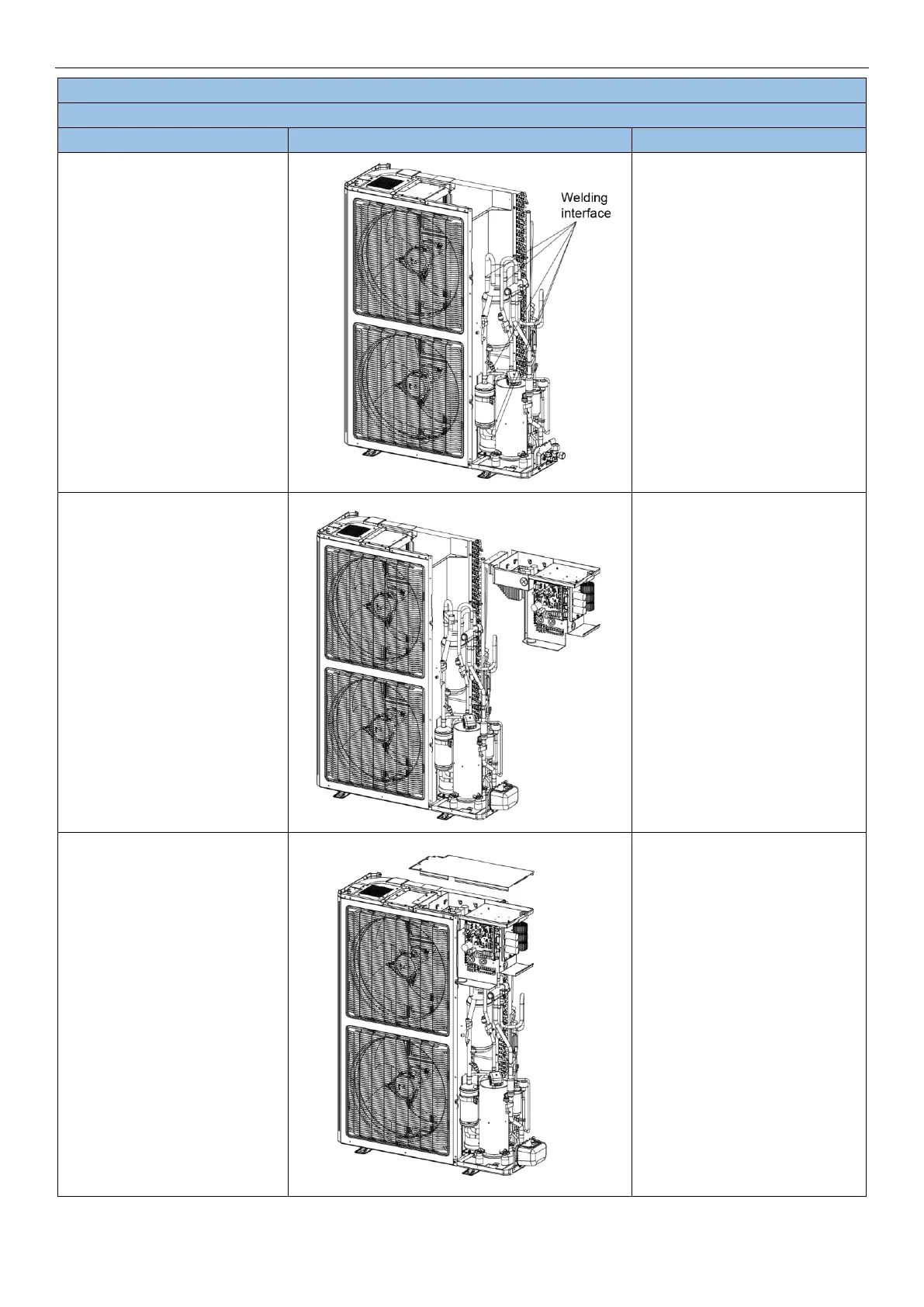

4. Install the new gas liquid
separator
 Install the gas liquid separator
by referring to the positions of
entering and leaving pipes.
Weld the 2 welding
interfaces.
 Nitrogen welding: the
pressure of nitrogen is
0.5±0.1kgf/ cm² (relative
pressure).
NOTE: When welding the
pipes, do not let the flame
burn the other components.
 Tighten the screws of gas
liquid separator.
5. Secure the electric box and
arrange the wires as
required.
 Put the electric box back in
place and tighten up the
screws.
 Arrange the wires as original.
6. Check and open the upper
and side panels.
 Check whether each
component and connection
wire is well connected.
 If everything is OK, install the
upper, left and right panels.
Tighten up the screws.
