101

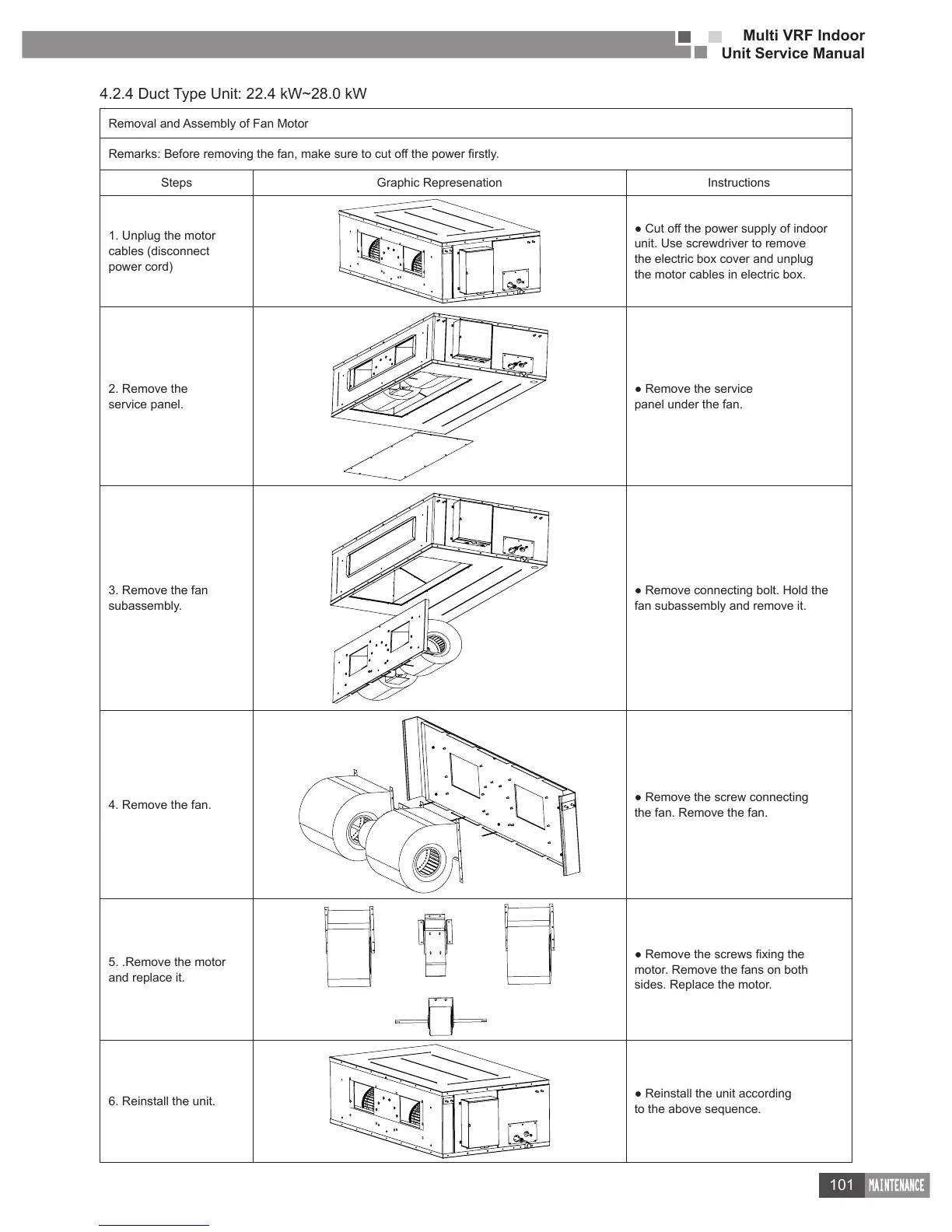

4.2.4 Duct Type Unit: 22.4 kW~28.0 kW
Removal and Assembly of Fan Motor

Steps Graphic Represenation Instructions
1. Unplug the motor
cables (disconnect
power cord)

unit. Use screwdriver to remove
the electric box cover and unplug
the motor cables in electric box.
2. Remove the
service panel.

panel under the fan.
3. Remove the fan
subassembly.

fan subassembly and remove it.
4. Remove the fan.

the fan. Remove the fan.
5. .Remove the motor
and replace it.

motor. Remove the fans on both
sides. Replace the motor.
6. Reinstall the unit.

to the above sequence.
