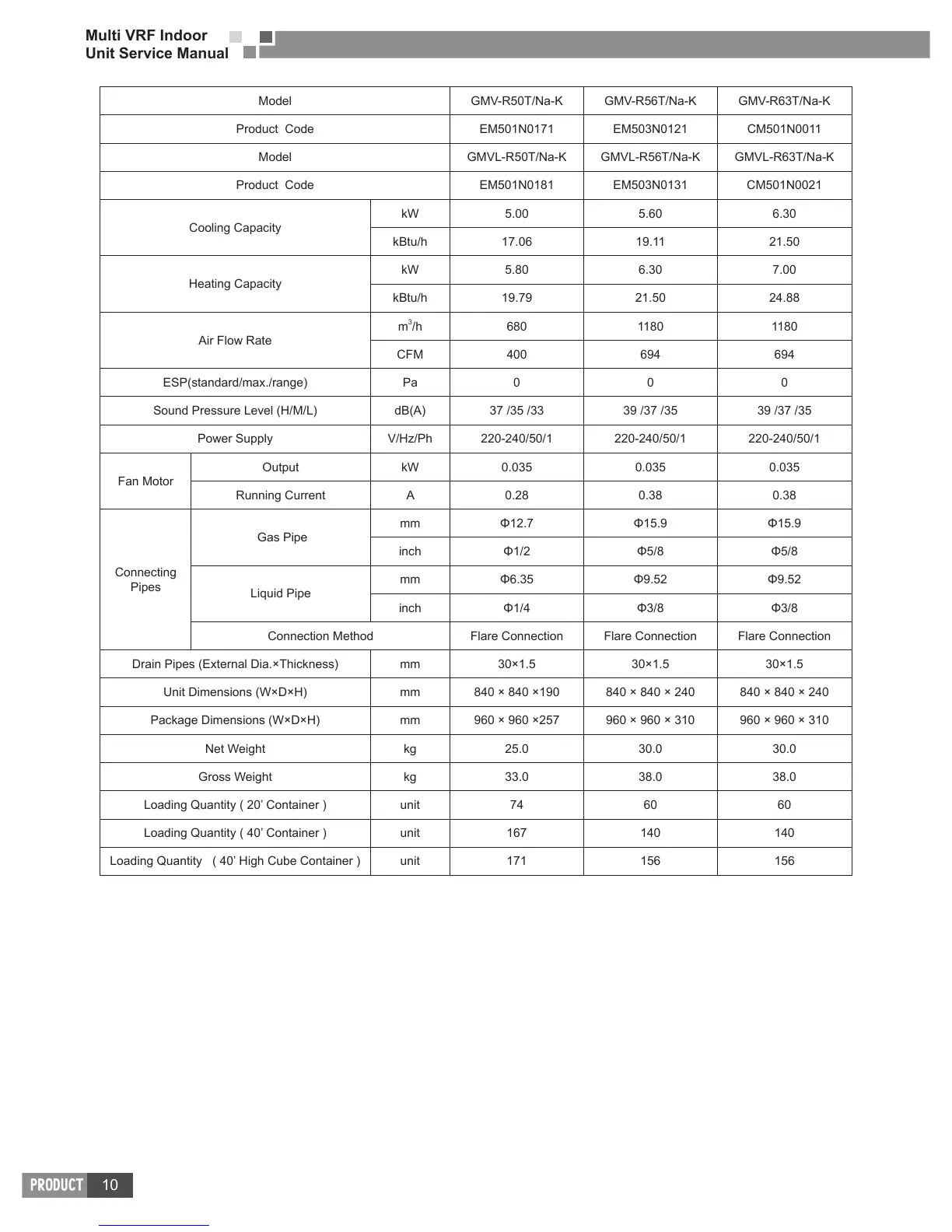

Gree GMV-R series

10
Multi VRF Indoor
Unit Service Manual
PRODUCT
Model GMV-R50T/Na-K GMV-R56T/Na-K GMV-R63T/Na-K
Product Code EM501N0171 EM503N0121 CM501N0011
Model GMVL-R50T/Na-K GMVL-R56T/Na-K GMVL-R63T/Na-K
Product Code EM501N0181 EM503N0131 CM501N0021
Cooling Capacity
kW 5.00 5.60 6.30
kBtu/h 17.06 19.11 21.50
Heating Capacity
kW 5.80 6.30 7.00
kBtu/h 19.79 21.50 24.88
Air Flow Rate
m
3
/h 680 1180 1180
CFM 400 694 694
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level (H/M/L) dB(A) 37 /35 /33 39 /37 /35 39 /37 /35
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.035 0.035 0.035
Running Current A 0.28 0.38 0.38
Connecting
Pipes
Gas Pipe
mm   
inch   
Liquid Pipe
mm   
inch   
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 30×1.5 30×1.5 30×1.5
Unit Dimensions (W×D×H) mm 840 × 840 ×190 840 × 840 × 240 840 × 840 × 240
Package Dimensions (W×D×H) mm 960 × 960 ×257 960 × 960 × 310 960 × 960 × 310
Net Weight kg 25.0 30.0 30.0
Gross Weight kg 33.0 38.0 38.0
Loading Quantity ( 20’ Container ) unit 74 60 60
Loading Quantity ( 40’ Container ) unit 167 140 140
Loading Quantity ( 40’ High Cube Container ) unit 171 156 156
