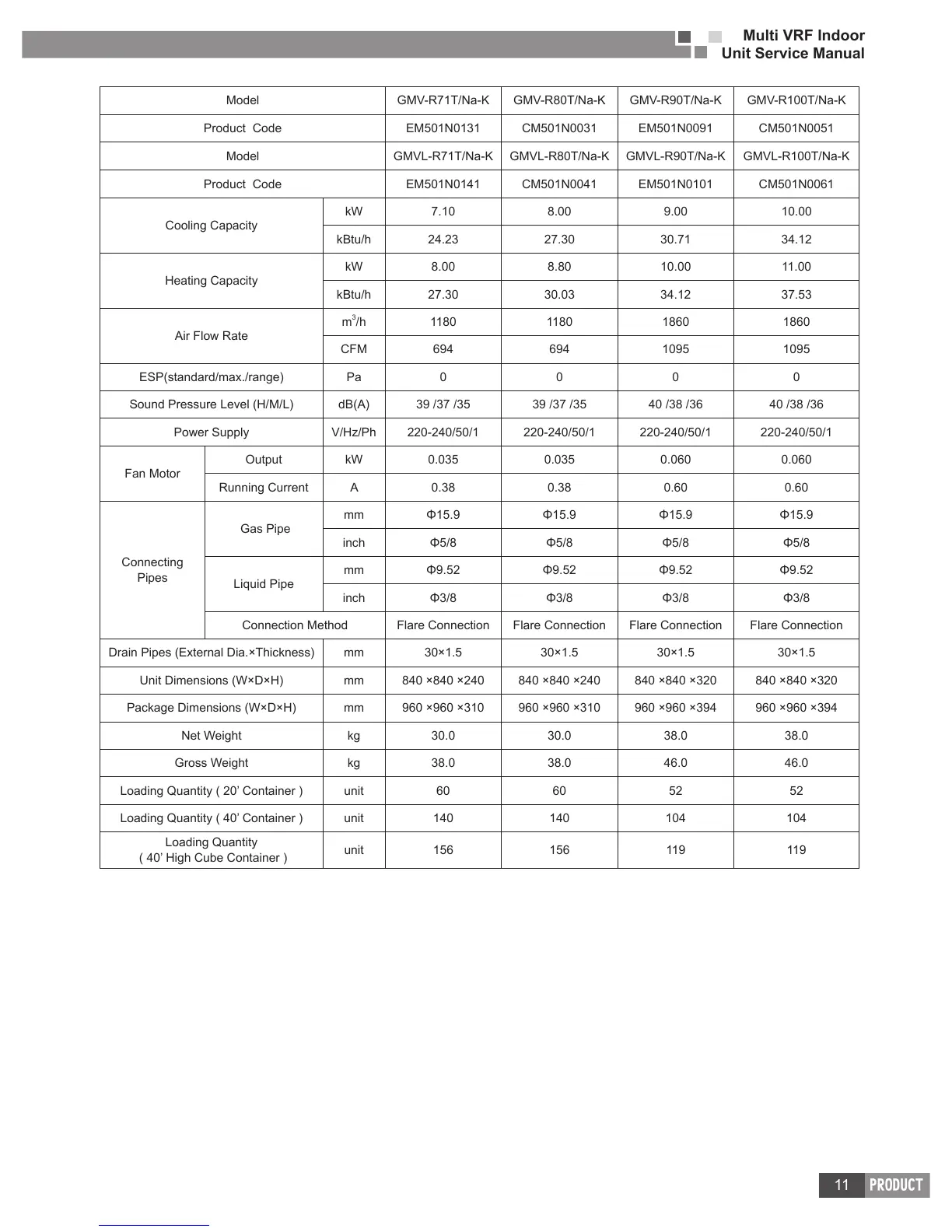

Gree GMV-R series

Multi VRF Indoor
Unit Service Manual
11
PRODUCT
Model GMV-R71T/Na-K GMV-R80T/Na-K GMV-R90T/Na-K GMV-R100T/Na-K
Product Code EM501N0131 CM501N0031 EM501N0091 CM501N0051
Model GMVL-R71T/Na-K GMVL-R80T/Na-K GMVL-R90T/Na-K GMVL-R100T/Na-K
Product Code EM501N0141 CM501N0041 EM501N0101 CM501N0061
Cooling Capacity
kW 7.10 8.00 9.00 10.00
kBtu/h 24.23 27.30 30.71 34.12
Heating Capacity
kW 8.00 8.80 10.00 11.00
kBtu/h 27.30 30.03 34.12 37.53
Air Flow Rate
m
3
/h 1180 1180 1860 1860
CFM 694 694 1095 1095
ESP(standard/max./range) Pa 0 0 0 0
Sound Pressure Level (H/M/L) dB(A) 39 /37 /35 39 /37 /35 40 /38 /36 40 /38 /36
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.035 0.035 0.060 0.060
Running Current A 0.38 0.38 0.60 0.60
Connecting
Pipes
Gas Pipe
mm    
inch    
Liquid Pipe
mm    
inch    
Connection Method Flare Connection Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 30×1.5 30×1.5 30×1.5 30×1.5
Unit Dimensions (W×D×H) mm 840 ×840 ×240 840 ×840 ×240 840 ×840 ×320 840 ×840 ×320
Package Dimensions (W×D×H) mm 960 ×960 ×310 960 ×960 ×310 960 ×960 ×394 960 ×960 ×394
Net Weight kg 30.0 30.0 38.0 38.0
Gross Weight kg 38.0 38.0 46.0 46.0
Loading Quantity ( 20’ Container ) unit 60 60 52 52
Loading Quantity ( 40’ Container ) unit 140 140 104 104
Loading Quantity
( 40’ High Cube Container )
unit 156 156 119 119
