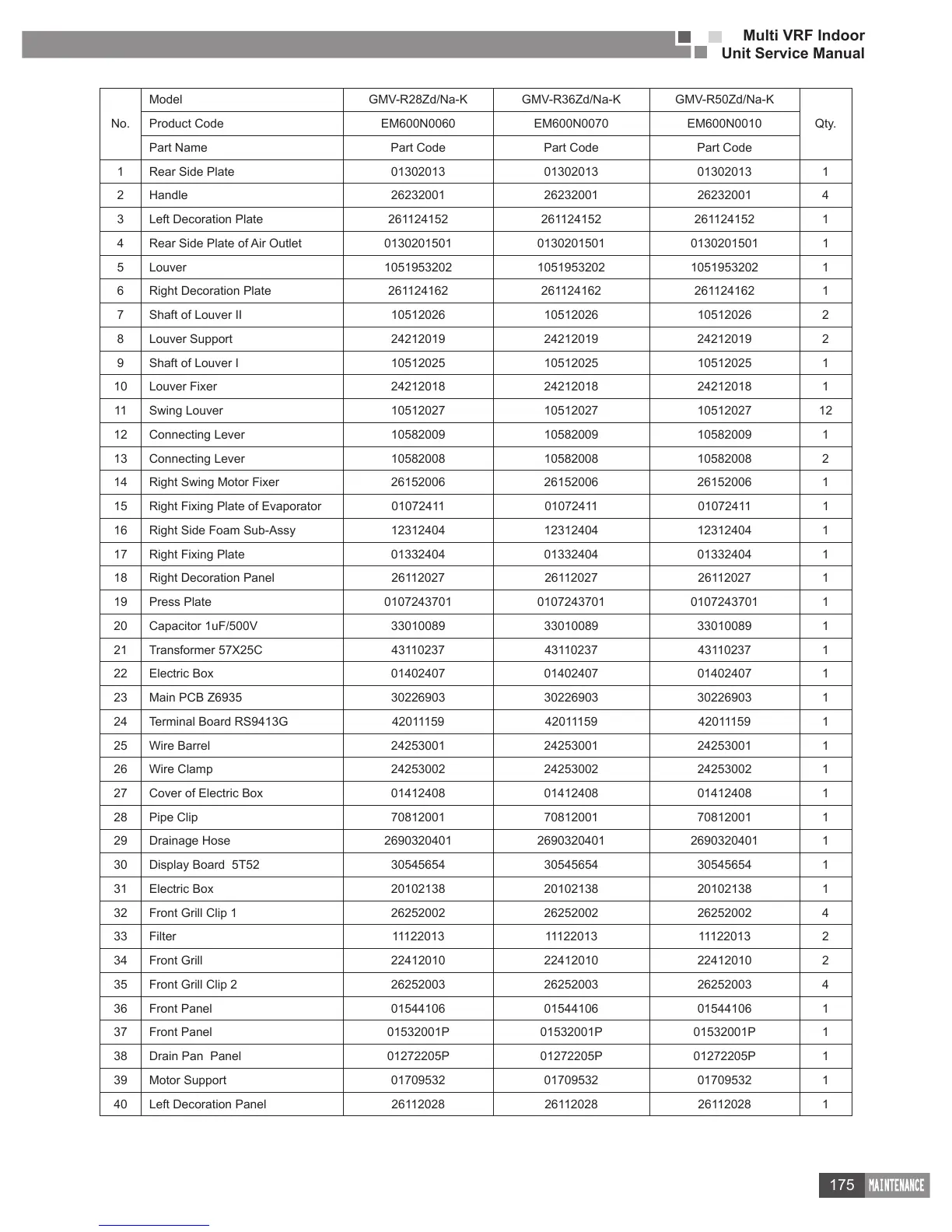

Multi VRF Indoor

Unit Service Manual

175

No.

Model GMV-R28Zd/Na-K GMV-R36Zd/Na-K GMV-R50Zd/Na-K

Qty.Product Code EM600N0060 EM600N0070 EM600N0010

Part Name Part Code Part Code Part Code

1 Rear Side Plate 01302013 01302013 01302013 1

2 Handle 26232001 26232001 26232001 4

3 Left Decoration Plate 261124152 261124152 261124152 1

4 Rear Side Plate of Air Outlet 0130201501 0130201501 0130201501 1

5 Louver 1051953202 1051953202 1051953202 1

6 Right Decoration Plate 261124162 261124162 261124162 1

7 Shaft of Louver II 10512026 10512026 10512026 2

8 Louver Support 24212019 24212019 24212019 2

9 Shaft of Louver I 10512025 10512025 10512025 1

10 Louver Fixer 24212018 24212018 24212018 1

11 Swing Louver 10512027 10512027 10512027 12

12 Connecting Lever 10582009 10582009 10582009 1

13 Connecting Lever 10582008 10582008 10582008 2

14 Right Swing Motor Fixer 26152006 26152006 26152006 1

15 Right Fixing Plate of Evaporator 01072411 01072411 01072411 1

16 Right Side Foam Sub-Assy 12312404 12312404 12312404 1

17 Right Fixing Plate 01332404 01332404 01332404 1

18 Right Decoration Panel 26112027 26112027 26112027 1

19 Press Plate 0107243701 0107243701 0107243701 1

20 Capacitor 1uF/500V 33010089 33010089 33010089 1

21 Transformer 57X25C 43110237 43110237 43110237 1

22 Electric Box 01402407 01402407 01402407 1

23 Main PCB Z6935 30226903 30226903 30226903 1

24 Terminal Board RS9413G 42011159 42011159 42011159 1

25 Wire Barrel 24253001 24253001 24253001 1

26 Wire Clamp 24253002 24253002 24253002 1

27 Cover of Electric Box 01412408 01412408 01412408 1

28 Pipe Clip 70812001 70812001 70812001 1

29 Drainage Hose 2690320401 2690320401 2690320401 1

30 Display Board 5T52 30545654 30545654 30545654 1

31 Electric Box 20102138 20102138 20102138 1

32 Front Grill Clip 1 26252002 26252002 26252002 4

33 Filter 11122013 11122013 11122013 2

34 Front Grill 22412010 22412010 22412010 2

35 Front Grill Clip 2 26252003 26252003 26252003 4

36 Front Panel 01544106 01544106 01544106 1

37 Front Panel 01532001P 01532001P 01532001P 1

38 Drain Pan Panel 01272205P 01272205P 01272205P 1

39 Motor Support 01709532 01709532 01709532 1

40 Left Decoration Panel 26112028 26112028 26112028 1
