Multi VRF Indoor
Unit Service Manual

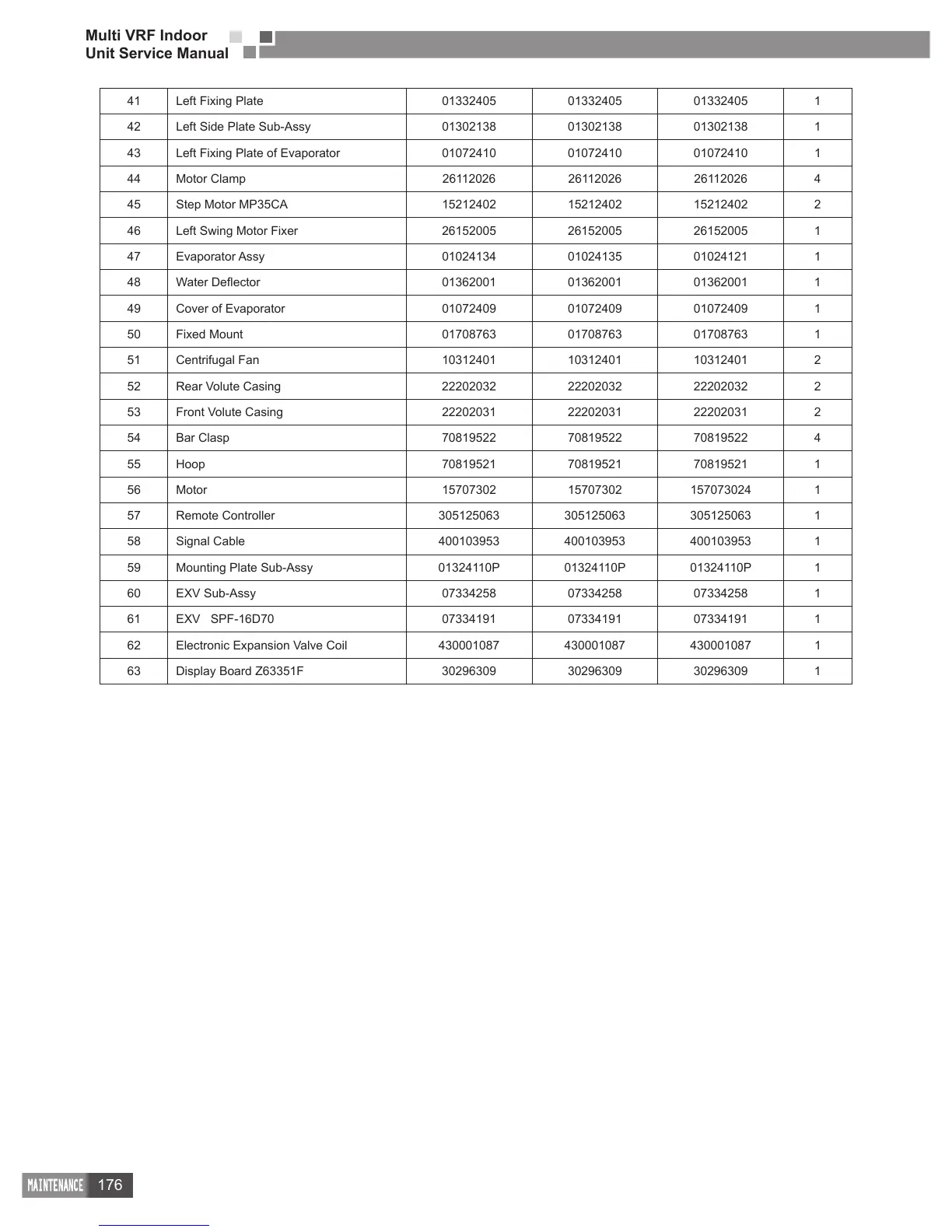

41 Left Fixing Plate 01332405 01332405 01332405 1
42 Left Side Plate Sub-Assy 01302138 01302138 01302138 1
43 Left Fixing Plate of Evaporator 01072410 01072410 01072410 1
44 Motor Clamp 26112026 26112026 26112026 4
45 Step Motor MP35CA 15212402 15212402 15212402 2
46 Left Swing Motor Fixer 26152005 26152005 26152005 1
47 Evaporator Assy 01024134 01024135 01024121 1
48 01362001 01362001 01362001 1
49 Cover of Evaporator 01072409 01072409 01072409 1
50 Fixed Mount 01708763 01708763 01708763 1
51 Centrifugal Fan 10312401 10312401 10312401 2
52 Rear Volute Casing 22202032 22202032 22202032 2
53 Front Volute Casing 22202031 22202031 22202031 2
54 Bar Clasp 70819522 70819522 70819522 4
55 Hoop 70819521 70819521 70819521 1
56 Motor 15707302 15707302 157073024 1
57 Remote Controller 305125063 305125063 305125063 1
58 Signal Cable 400103953 400103953 400103953 1
59 Mounting Plate Sub-Assy 01324110P 01324110P 01324110P 1
60 EXV Sub-Assy 07334258 07334258 07334258 1
61 EXV SPF-16D70 07334191 07334191 07334191 1
62 Electronic Expansion Valve Coil 430001087 430001087 430001087 1
63 Display Board Z63351F 30296309 30296309 30296309 1
