Multi VRF Indoor
Unit Service Manual
177

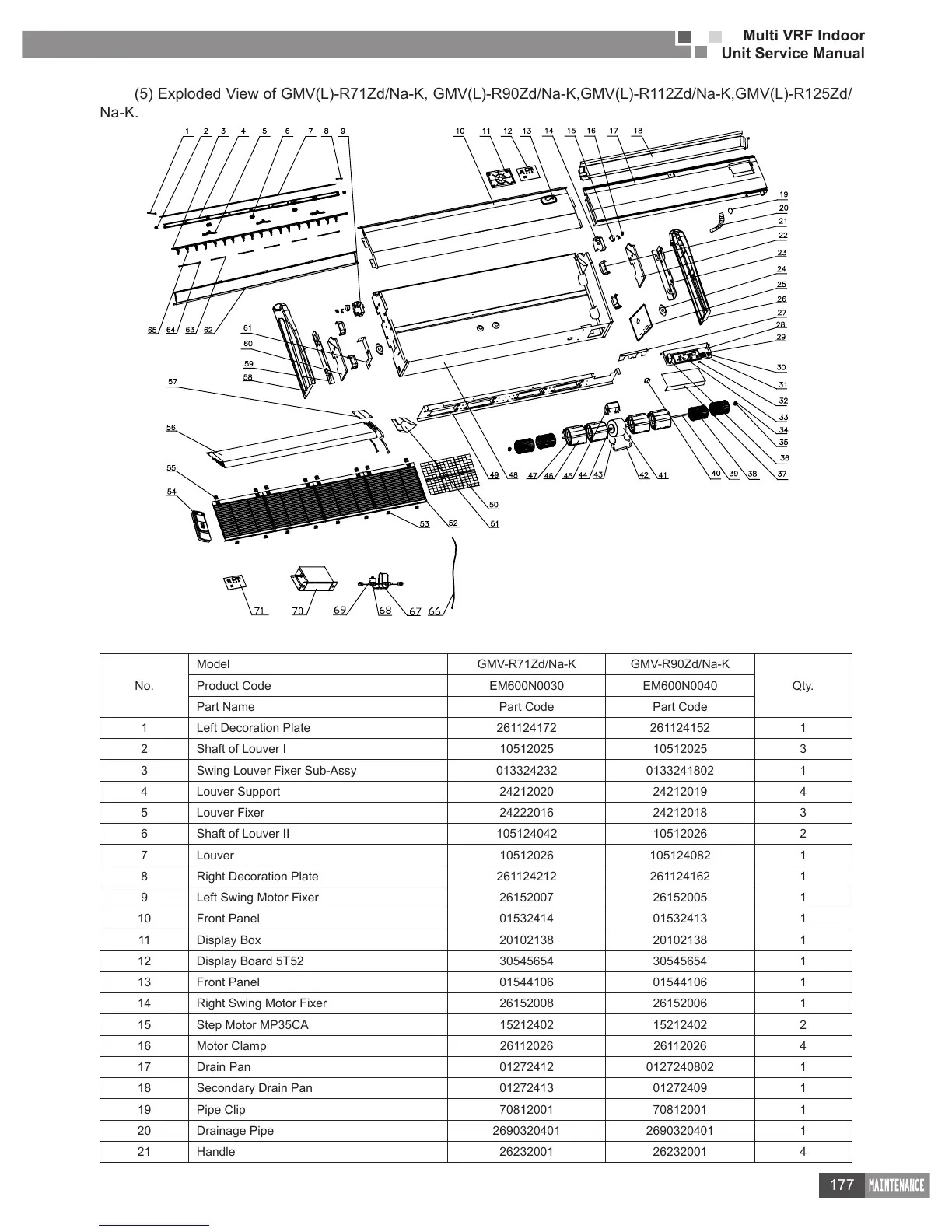

(5) Exploded View of GMV(L)-R71Zd/Na-K, GMV(L)-R90Zd/Na-K,GMV(L)-R112Zd/Na-K,GMV(L)-R125Zd/
Na-K.
No.
Model GMV-R71Zd/Na-K GMV-R90Zd/Na-K
Qty.Product Code EM600N0030 EM600N0040
Part Name Part Code Part Code
1 Left Decoration Plate 261124172 261124152 1
2 Shaft of Louver I 10512025 10512025 3
3 Swing Louver Fixer Sub-Assy 013324232 0133241802 1
4 Louver Support 24212020 24212019 4
5 Louver Fixer 24222016 24212018 3
6 Shaft of Louver II 105124042 10512026 2
7 Louver 10512026 105124082 1
8 Right Decoration Plate 261124212 261124162 1
9 Left Swing Motor Fixer 26152007 26152005 1
10 Front Panel 01532414 01532413 1
11 Display Box 20102138 20102138 1
12 Display Board 5T52 30545654 30545654 1
13 Front Panel 01544106 01544106 1
14 Right Swing Motor Fixer 26152008 26152006 1
15 Step Motor MP35CA 15212402 15212402 2
16 Motor Clamp 26112026 26112026 4
17 Drain Pan 01272412 0127240802 1
18 Secondary Drain Pan 01272413 01272409 1
19 Pipe Clip 70812001 70812001 1
20 Drainage Pipe 2690320401 2690320401 1
21 Handle 26232001 26232001 4
To Next Page
