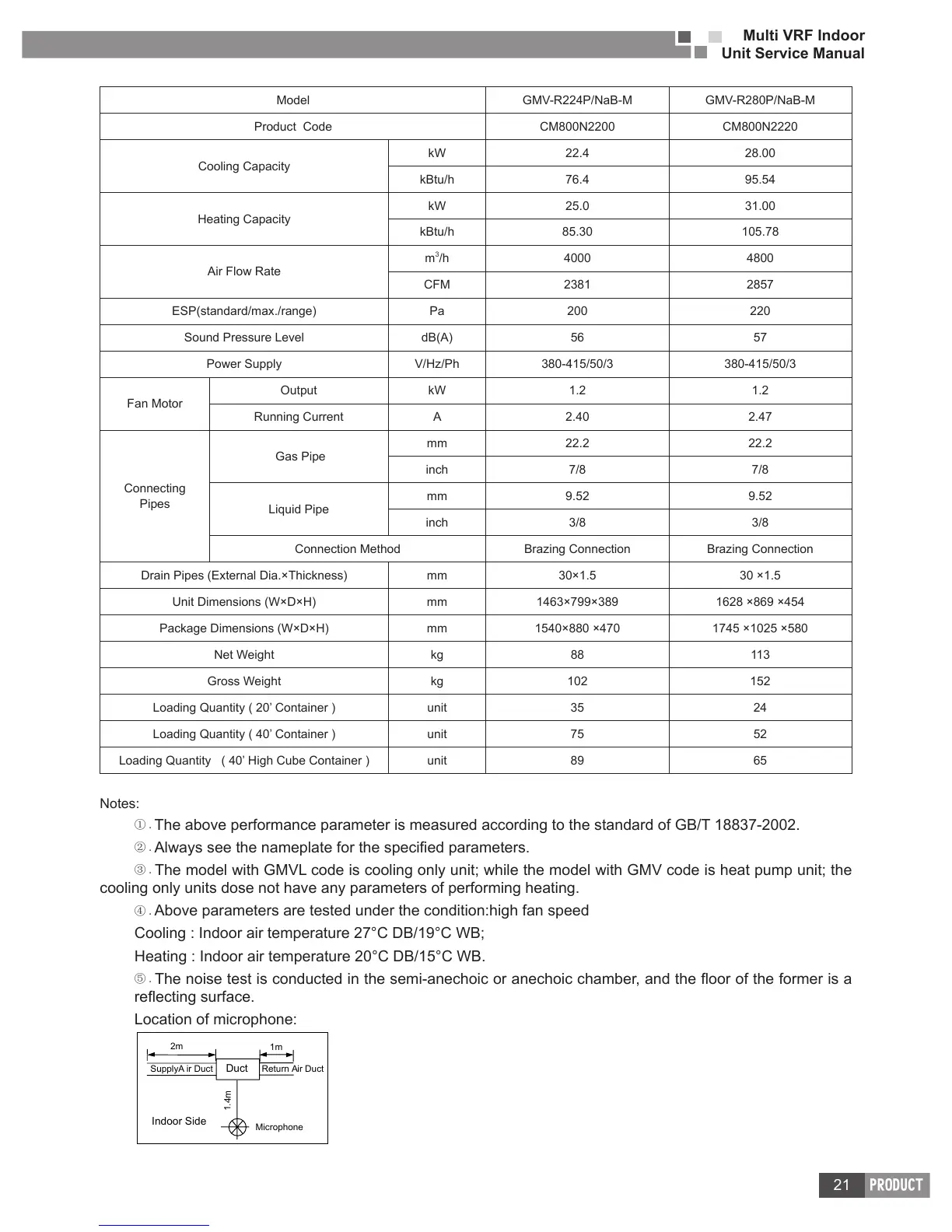

Multi VRF Indoor
Unit Service Manual
21
PRODUCT
Model GMV-R224P/NaB-M GMV-R280P/NaB-M
Product Code CM800N2200 CM800N2220
Cooling Capacity
kW 22.4 28.00
kBtu/h 76.4 95.54
Heating Capacity
kW 25.0 31.00
kBtu/h 85.30 105.78
Air Flow Rate
m
3
/h 4000 4800
CFM 2381 2857
ESP(standard/max./range) Pa 200 220
Sound Pressure Level dB(A) 56 57
Power Supply V/Hz/Ph 380-415/50/3 380-415/50/3
Fan Motor
Output kW 1.2 1.2
Running Current A 2.40 2.47
Connecting
Pipes
Gas Pipe
mm 22.2 22.2
inch 7/8 7/8
Liquid Pipe
mm 9.52 9.52
inch 3/8 3/8
Connection Method Brazing Connection Brazing Connection
Drain Pipes (External Dia.×Thickness) mm 30×1.5 30 ×1.5
Unit Dimensions (W×D×H) mm 1463×799×389 1628 ×869 ×454
Package Dimensions (W×D×H) mm 1540×880 ×470 1745 ×1025 ×580
Net Weight kg 88 113
Gross Weight kg 102 152
Loading Quantity ( 20’ Container ) unit 35 24
Loading Quantity ( 40’ Container ) unit 75 52
Loading Quantity ( 40’ High Cube Container ) unit 89 65
Notes:
①.
The above performance parameter is measured according to the standard of GB/T 18837-2002.
②.
③.
The model with GMVL code is cooling only unit; while the model with GMV code is heat pump unit; the
cooling only units dose not have any parameters of performing heating.
④.
Above parameters are tested under the condition:high fan speed
Cooling : Indoor air temperature 27°C DB/19°C WB;
Heating : Indoor air temperature 20°C DB/15°C WB.
⑤ .
Location of microphone:
Return Air Duct
2m
1m
1
.4
m
Indoor Side
Microphone
SupplyA ir Duct
Duct
