22
Multi VRF Indoor
Unit Service Manual
PRODUCT

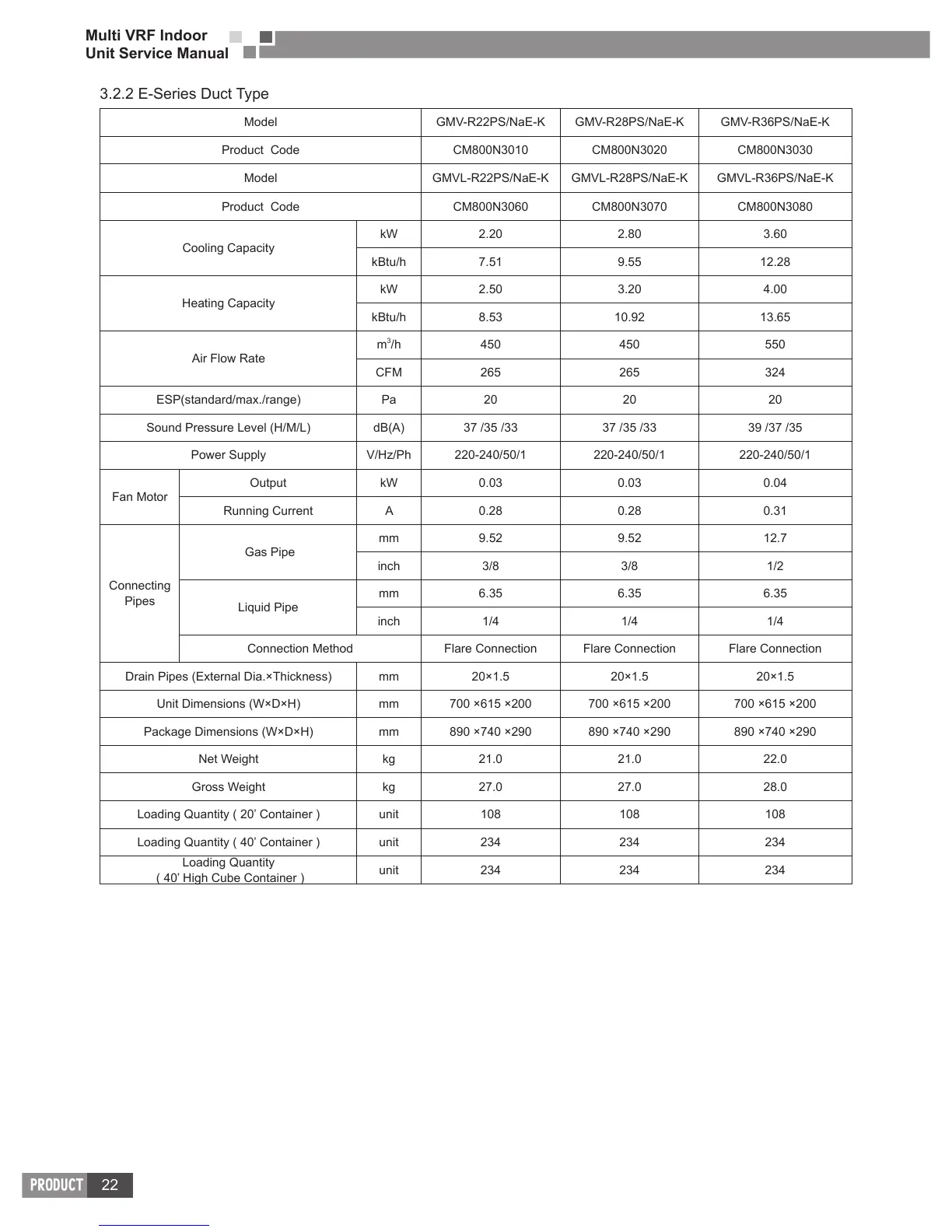

3.2.2 E-Series Duct Type
Model GMV-R22PS/NaE-K GMV-R28PS/NaE-K GMV-R36PS/NaE-K
Product Code CM800N3010 CM800N3020 CM800N3030
Model GMVL-R22PS/NaE-K GMVL-R28PS/NaE-K GMVL-R36PS/NaE-K
Product Code CM800N3060 CM800N3070 CM800N3080
Cooling Capacity
kW 2.20 2.80 3.60
kBtu/h 7.51 9.55 12.28
Heating Capacity
kW 2.50 3.20 4.00
kBtu/h 8.53 10.92 13.65
Air Flow Rate
m
3
/h 450 450 550
CFM 265 265 324
ESP(standard/max./range) Pa 20 20 20
Sound Pressure Level (H/M/L) dB(A) 37 /35 /33 37 /35 /33 39 /37 /35
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.03 0.03 0.04
Running Current A 0.28 0.28 0.31
Connecting
Pipes
Gas Pipe
mm 9.52 9.52 12.7
inch 3/8 3/8 1/2
Liquid Pipe
mm 6.35 6.35 6.35
inch 1/4 1/4 1/4
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 20×1.5 20×1.5 20×1.5
Unit Dimensions (W×D×H) mm 700 ×615 ×200 700 ×615 ×200 700 ×615 ×200
Package Dimensions (W×D×H) mm 890 ×740 ×290 890 ×740 ×290 890 ×740 ×290
Net Weight kg 21.0 21.0 22.0
Gross Weight kg 27.0 27.0 28.0
Loading Quantity ( 20’ Container ) unit 108 108 108
Loading Quantity ( 40’ Container ) unit 234 234 234
Loading Quantity
( 40’ High Cube Container )
unit 234 234 234
