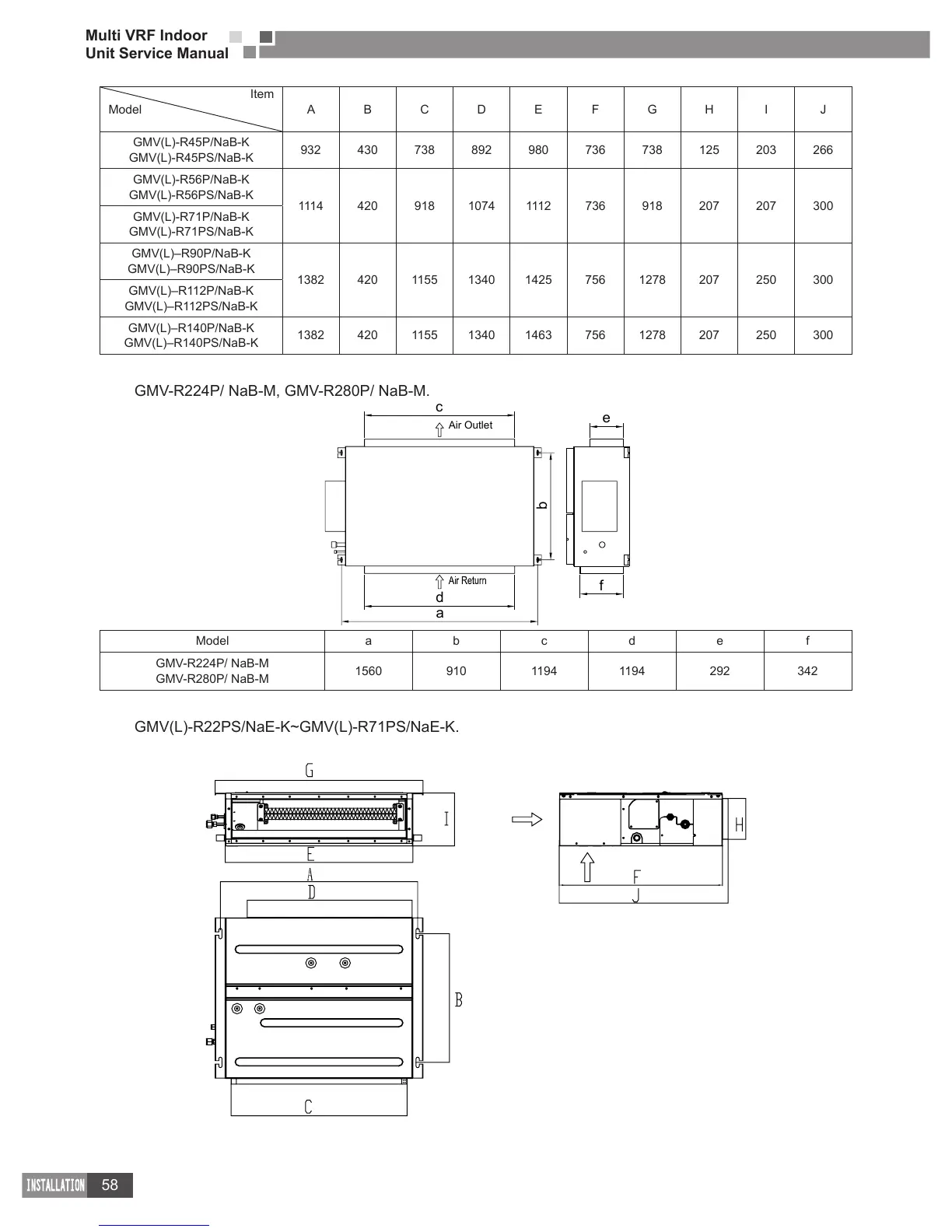

Gree GMV-R series

58
Multi VRF Indoor
Unit Service Manual
Item
Model A B C D E F G H I J
GMV(L)-R45P/NaB-K
GMV(L)-R45PS/NaB-K
932 430 738 892 980 736 738 125 203 266
GMV(L)-R56P/NaB-K
GMV(L)-R56PS/NaB-K
1114 420 918 1074 1112 736 918 207 207 300
GMV(L)-R71P/NaB-K
GMV(L)-R71PS/NaB-K
GMV(L)–R90P/NaB-K
GMV(L)–R90PS/NaB-K
1382 420 1155 1340 1425 756 1278 207 250 300
GMV(L)–R112P/NaB-K
GMV(L)–R112PS/NaB-K
GMV(L)–R140P/NaB-K
GMV(L)–R140PS/NaB-K
1382 420 1155 1340 1463 756 1278 207 250 300
GMV-R224P/ NaB-M, GMV-R280P/ NaB-M.
a
d
c
b
f
e
Air Outlet
Model a b c d e f
GMV-R224P/ NaB-M
GMV-R280P/ NaB-M
1560 910 1194 1194 292 342
GMV(L)-R22PS/NaE-K~GMV(L)-R71PS/NaE-K.
