Item
Model A B C D E F G H I J
GMV(L)-R22PS/NaE-K
742 491 662 620 700 615 782 156 200 635GMV(L)-R28PS/NaE-K
GMV(L)-R36PS/NaE-K
GMV(L)-R45PS/NaE-K
942 491 862 820 900 615 982 156 200 635
GMV(L)-R56PS/NaE-K
GMV(L)-R71PS/NaE-K 1142 491 1062 1020 1100 615 1182 156 200 635

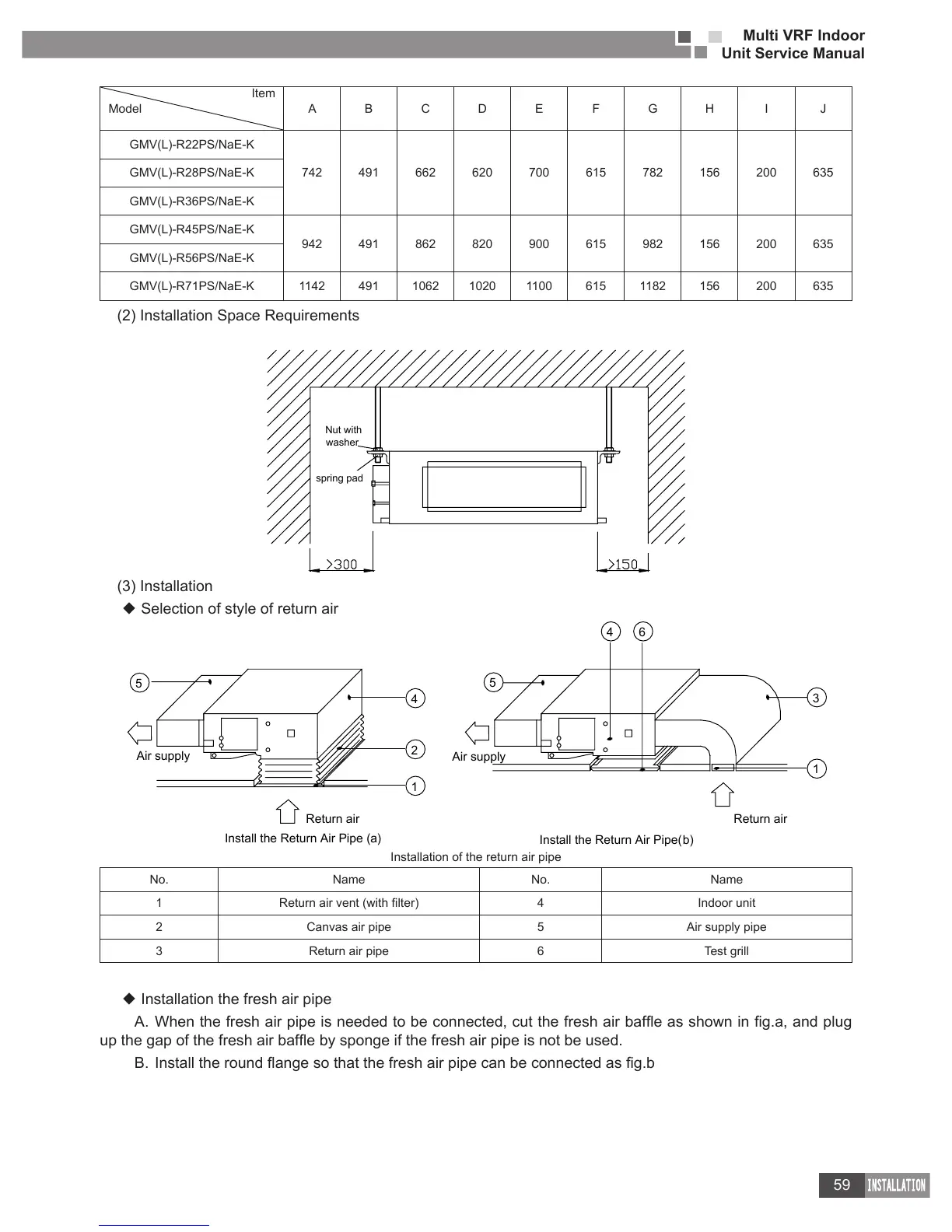

(2) Installation Space Requirements
Nut with
washer
spring pad
(3) Installation
◆
Selection of style of return air
1
Return air Return air
Install the Return Air Pipe (a)
Air supply
Air supply
Install the Return Air Pipe(b)
1
2
4
5
3
64
5
Installation of the return air pipe
No. Name No. Name
1  4 Indoor unit
2 Canvas air pipe 5 Air supply pipe
3 Return air pipe 6 Test grill
◆
Installation the fresh air pipe



