1990 Dieless Hydraulic Crimping Tool
Identification
Serial Code WH
1. The crimping head is slightly tapered.
2. The fixed die is a bolt-on assembly which includes
four bright zinc-plated die plates.
3. The two arms on the cylinder each have two
machined slots for the die assembly to engage.
4. Serial number begins with “WH” prefix.
5. The pump block is covered with a black rubber
coating.
6. The handles are bonded assemblies and include
fiberglass inserts.
7. The handle grips are lobed.
Note: The Greenlee 44999 is similar in appearance to these
tools, with some major differences:
• Serial Code is not WH or YM.
• Movable die is yellow.
• Decal on the handle identifies it as a utility tool.
•“44999” is molded into the rubber covering on the block.
For repair instructions for this tool, see Service Bulletin SB 243.
Serial Code YM
1. The crimping head is more steeply tapered.
2. The fixed die is one-piece steel casting, colored
black.
3. The two arms on the cylinder are not slotted.
4. Serial number begins with “YM” prefix.
5. The pump block is covered with a green rubber
coating.
6. The handles are one-piece cast aluminum, covered
with green rubber.
7. The handle grips have “motorcycle style” ribs.
The WH series and YM series crimping tools have
several distinguishing characteristics, which are listed
here. But be aware that, since many parts are inter-
changeable, a tool sent to you for repair may be a
hybrid — if it has been repaired previously, it may have
a mixture of parts from the WH series and YM series.
See Retrofit Kits in this manual for an explanation of
interchangeable parts.
Most of the instructions in this service manual apply to
both WH series and YM series. However, some indi-
vidual steps and some procedures apply to only one or
the other, and are so noted.

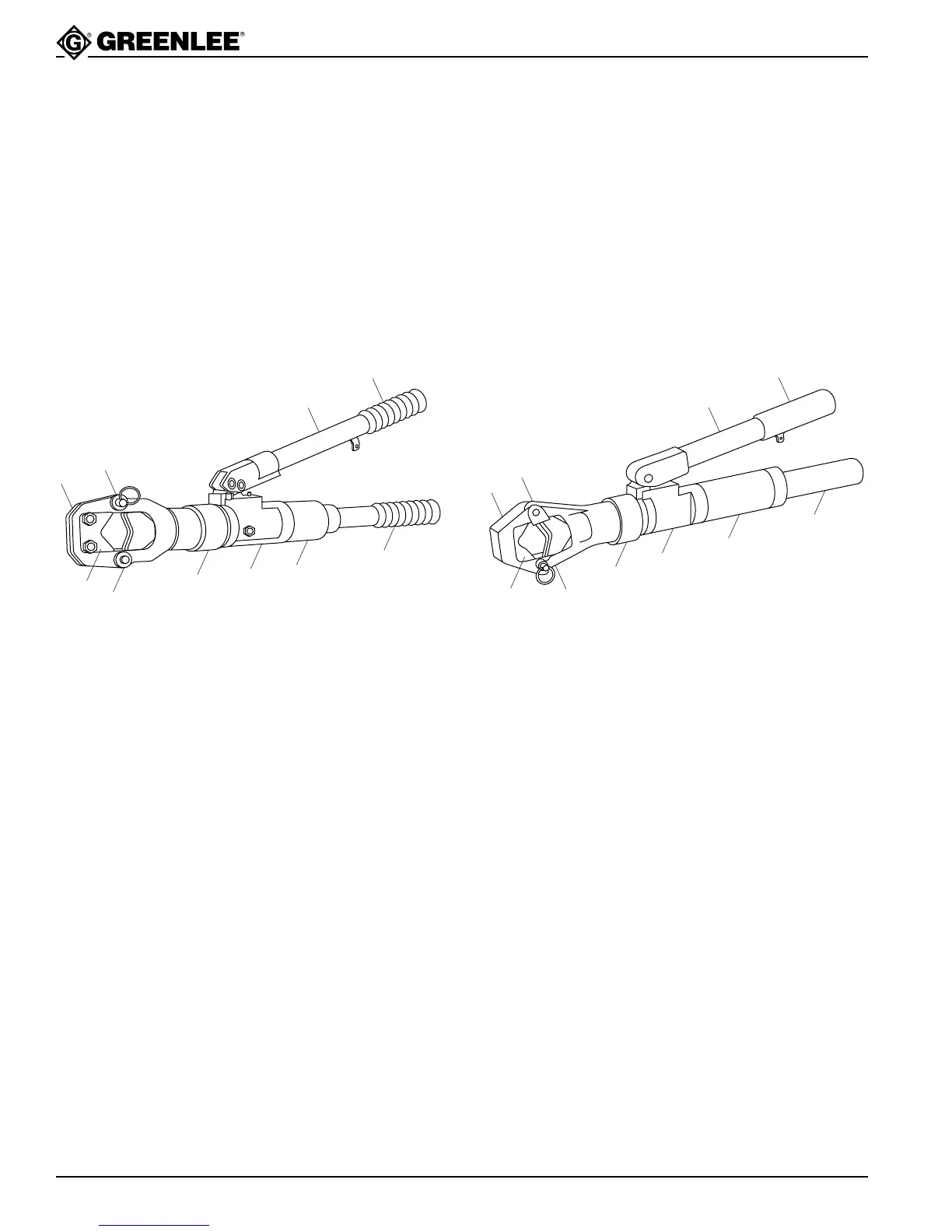

1990 Dieless Crimping Tool
1
3
6
7
3
2
4
5
7
6
1
3
6
7
3
4
5
7
6
2
