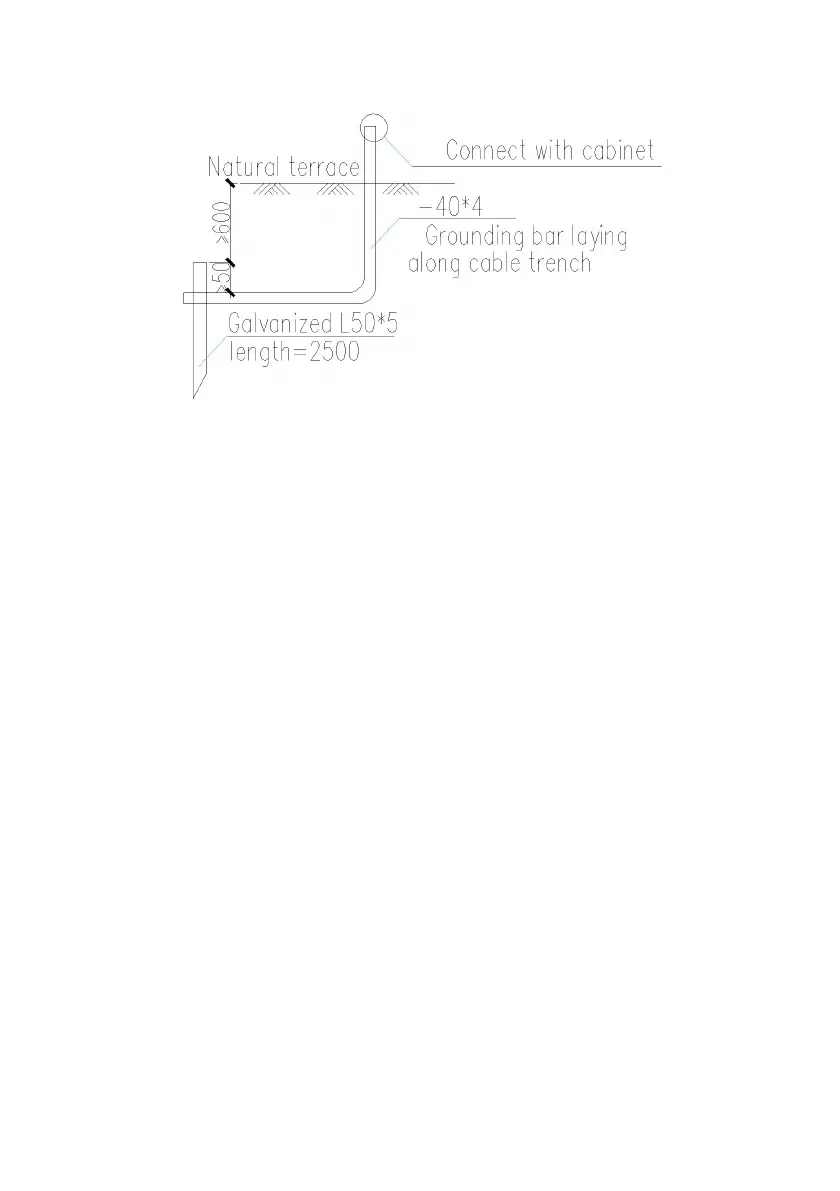

6.9 Route power supply cables
Prepare the cable and use standardized cable only.For AC cable, we suggest using RVVZ
cable which can stand on over 70°C, F2-EU 60kw cabinet cable size is
600V/1000V-ZA-RVV-3*50+2*25mm²-Outdoor cable-CE.
6.10 Protection against electric shock and short circuits
Protection against electric shock
The charging station contains the following devices to protect against electric shock:
•
IMD (Insulation Monitoring Device). One on each outlet on CHAdeMO and CCS2.
•
RCD (Residual Current Device) on 12 Vdc power supply
•
Surge protector
•
MCCB for AC Input
The following device is not included in the unit and must be installed in the switchboard
upstream:
•
Refer to local regulations, maximum current and voltage drop to select the device
against electric shock in switchboard upstream.
Short circuit protection
The charging station contains the following devices to protect against short circuit:
•
CCS2 and CHAdeMO outlet is protected by fuse.
