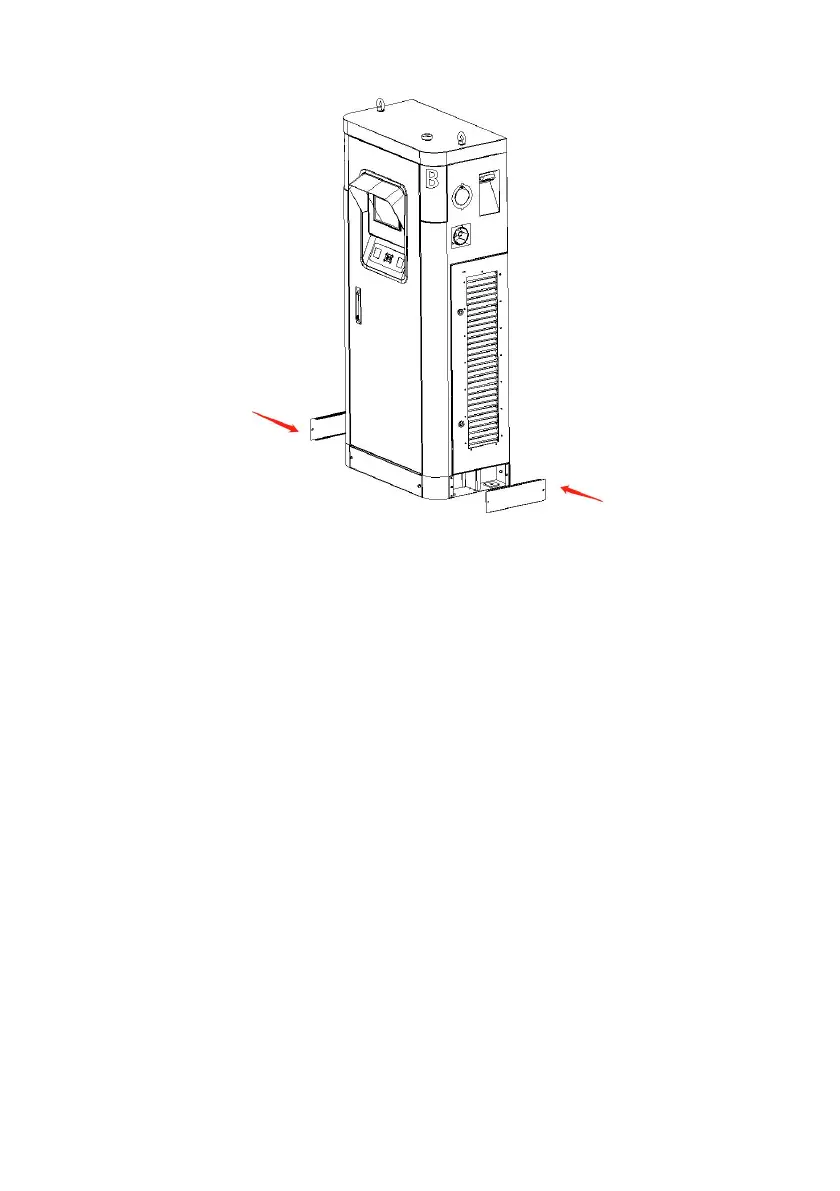

2. Install the left and right plinth at the bottom of the charging station.
7.6 Electrical Connections
Cable connection
1. Open the front door.
2. Take live lines, neutral line and earth line from outside to inside through protecting holes
on the bottom of equipment cabinet.
3. Connect earth line to PE strip. Connect 3 live lines and 1neutral line to L1\L2\L3\N
screws. Follow the instruction as showing below.
4. Sealing the protecting holes to prevent the enter of foreign matter by using fireproofing
mud.
