7.4 Remove the left and right plinth and the wooden pallet
Tool: Phillips screwdriver

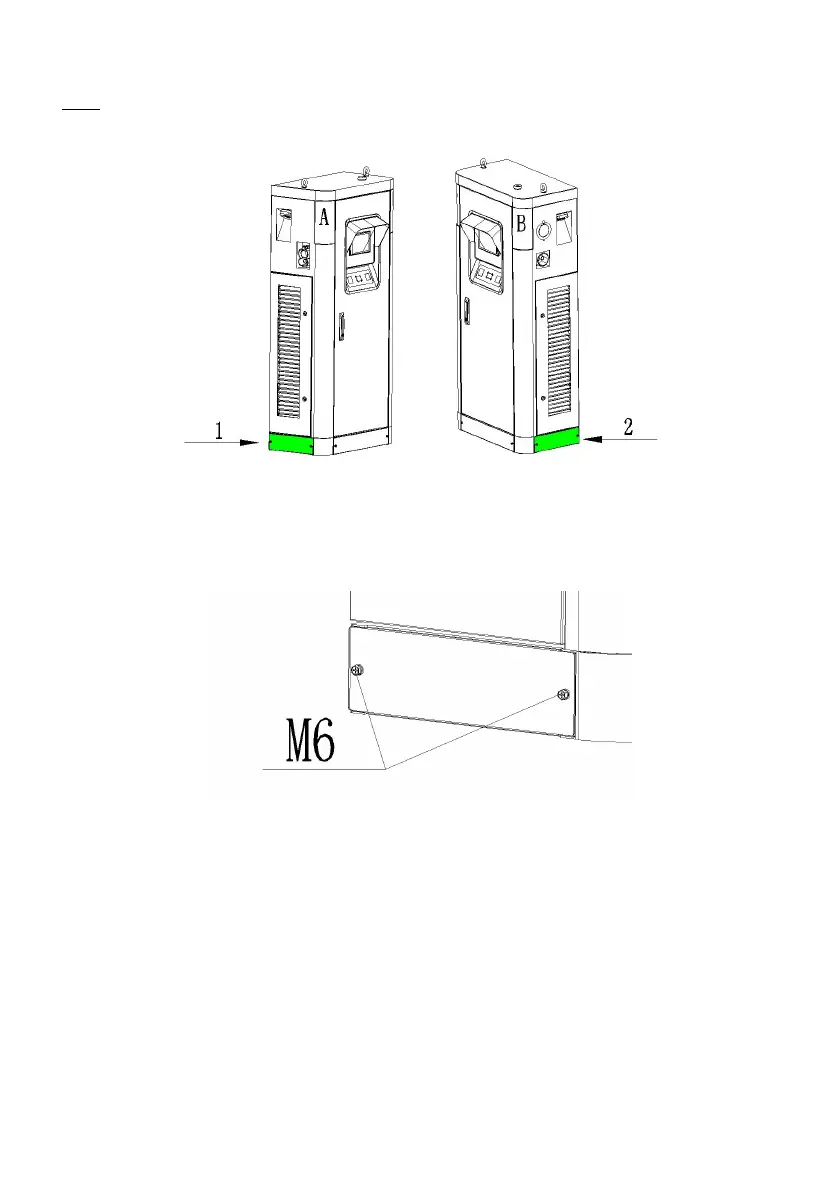

1. Locate the left and right plinth.
1. Left plinth; 2. right plinth.
2. Loosen 2pcs M6 nuts on each side.
