Model G0725 (Mfd. Since 03/18)
-19 -
To Install the dust collection chute and bag:
1. Install the dust chute by attaching the dust
chute to the chip exhaust and tighten the hex
nut.
2. Slip the bag clamp over the collection bag,
then attach the collection bag to the chute
and clamp it, as shown in Figure 20.
Power Connection
After you have completed all previous setup
instructions and circuit requirements, the machine
is ready to be connected to the power supply.
To avoid unexpected startups or property dam-
age, use the following steps whenever connecting
or disconnecting the machine.
Connecting Power

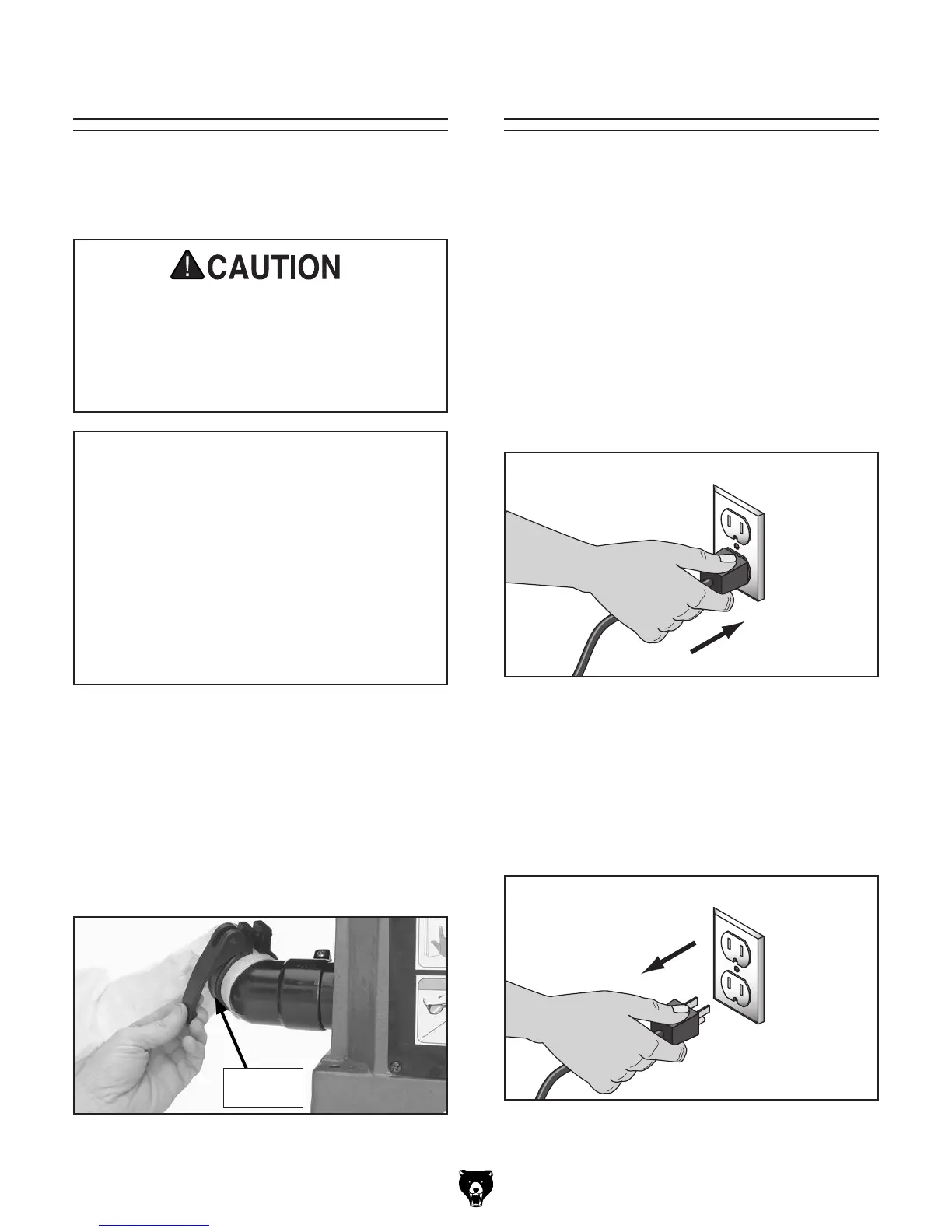

Figure 21. Connecting power.
1. TurnthemachinepowerswitchOFF.
2.
Insert the power cord plug into a
power supply receptacle. The machine
nowconnectedtothepowersource.
Disconnecting Power
Figure 22. Disconnecting power.
1. TurnthemachinepowerswitchOFF.
2.
Graspthemoldedplugandpullit
outofthereceptacle.Donotpullbythe
asthismaydamagethewiresinside.
Figure 20. Attaching the dust collection bag.
Bag
Clamp
Dust Collection
DO NOT operate the Model G0725 with-
out an adequate dust collection system.
This machine creates substantial amounts
of wood dust while operating. Failure to use
a dust collection system can result in short
and long-term respiratory illness.
Recommended CFM at Dust Port: 150 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col-
lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal-
culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.
The Model G0725 has a built in dust collection
fan and includes a dust collection bag. It can also
be hooked up to a pre-existing dust collection
system.
