Model G0725 (Mfd. Since 03/18)
-23-
To set the 90º stop:
1. DISCONNECT JOINTER FROM POWER!
2. With the fence positioned over the bed and
with the sliding handle locked, loosen the
fence tilting handle.
3. Press the forward tab of the limit plate into
the rear slot of the limit block.
4. Pull the fence as far as it will go towards 90º
(perpendicular to the table), then tighten the
fence tilting handle.
Note: When you pull the fence towards 90º,
it will stop when it hits the limit block shaft.
5. Use a machinist's combination square to
check the angle of the fence, as shown in
Figure 27.
—If the fence is perpendicular to the table
according to the machinist's square, the
90º stop is set correctly. Move ahead to set
the 45º stops, on the next page.
—If the fence is not perpendicular to the
table, adjust the 90º stop by doing Steps
6–9.
6. Loosen the fence tilting handle, bring the
fence to 90º with the machinist's square set
against the fence, then tighten the handle.
Note: Keep the limit plate in the rear slot of
the limit block (see Figure 26).

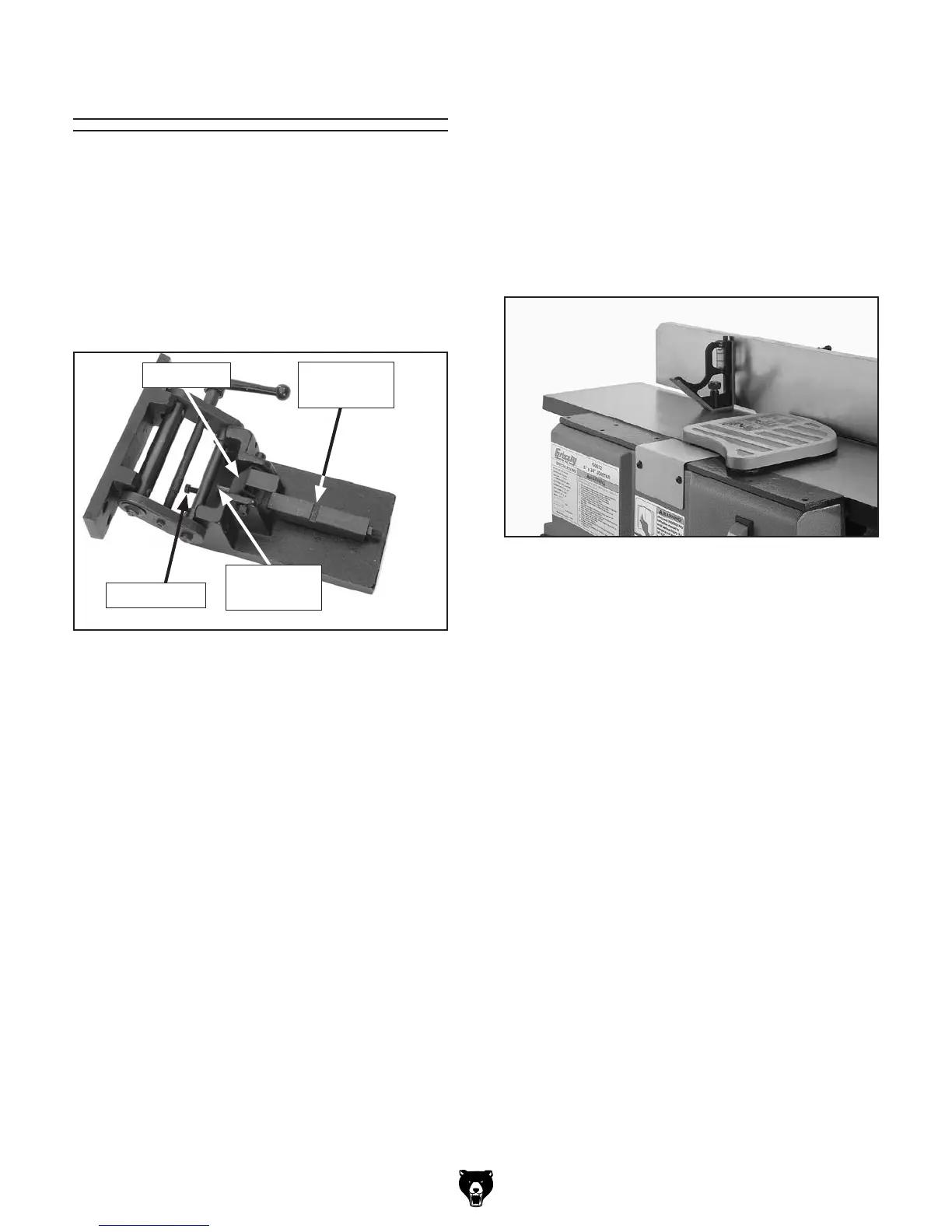

Figure 27. Checking the 90º stop.
Fence Angle Stops
Using the angle stops, you can quickly set the
fence angle at 90º (perpendicular to the tables),
45º inward, and 45º outward. This section pro-
vides instructions for setting the fence stops pre-
cisely at these angles.
Before making these adjustments, take a moment
to identify the various stop parts of the fence
bracket assembly (see Figure 26).
Figure 26. Fence stop parts identification.
Limit Plate
Limit Block
Rear Slot
Inward Stop
Limit Block
Shaft
