-24-
Model G0725 (Mfd. Since 03/18)
7. Loosen the jam nut located at the rear of the
limit block shaft.
8. Using a screwdriver, turn the limit block set
screw until the limit block shaft contacts the
fence.
9. Tighten the jam nut. The 90º stop is now set
precisely.
To set the inward 45º stop:
1. DISCONNECT JOINTER FROM POWER!
2. With the fence positioned over the bed and
the sliding handle locked, loosen the fence
tilting handle.
3. Tip the fence towards the table as far as it will
go, then tighten the fence tilting handle.
Note: When you tip the fence towards the
table, it will stop when it contacts the inward
stop bolt.
4. Use a machinist's combination square to
check the angle of the fence, as shown in
Figure 28.

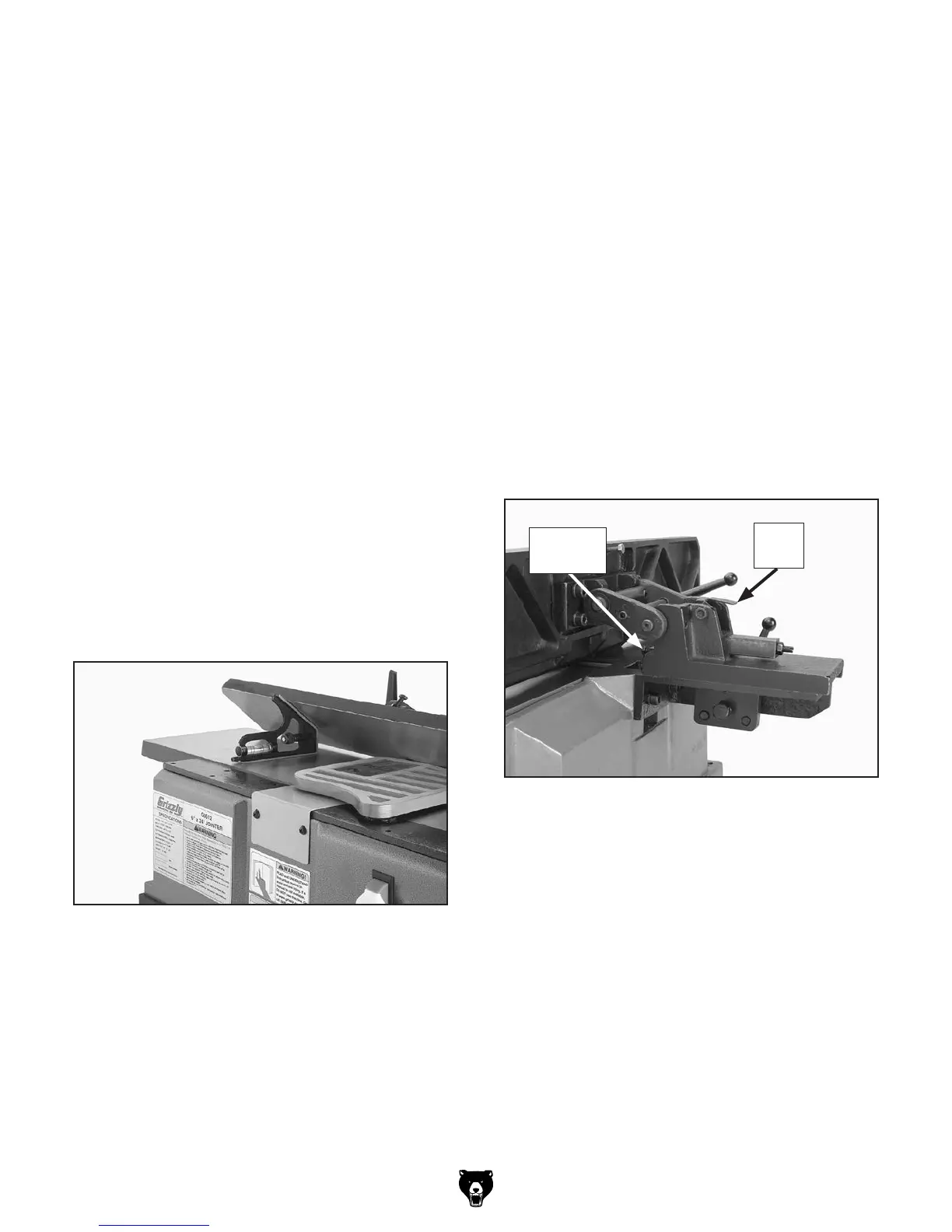

Figure 28. Checking the inward 45º stop.
5. Loosen the fence tilting handle, bring the
fence to 45º with the machinist's square set
against the fence, then tighten the handle.
Note: Keep the limit plate in the rear slot of
the limit block.
—If the fence leans 45º towards the table,
the inward 45º stop is set correctly; move
ahead to set the outward 45º stop.
—If the fence does not lean 45º towards
the table, adjust the inward 45º stop by
repeating Step 5. .
6. Remove the limit block from the fence bracket
assembly and set it aside.
7. Adjust the inward stop bolt (see Figure 29)
until it contacts the fence at precisely 45º
inward, then tighten the jam nut (where the
bolt meets the bracket assembly) while hold-
ing the stop bolt in place. Replace the limit
block and set the limit plate.
To set the outward 45º stop:
1. DISCONNECT JOINTER FROM POWER!
2. Loosen the fence tilting handle, remove the
limit block and set it aside.
3. Tip the fence back (away from the table) until
it stops.
Note: The fence will stop when the outward
stop bolt hits the fence bracket.
Figure 29. Adjusting the inward stop.
Inward
Stop Bolt
Limit
Plate
To Next Page
