Model G0725 (Mfd. Since 03/18)
-25-
4. Use a machinist's combination square to
check the angle of the fence, as shown in
Figure 30.

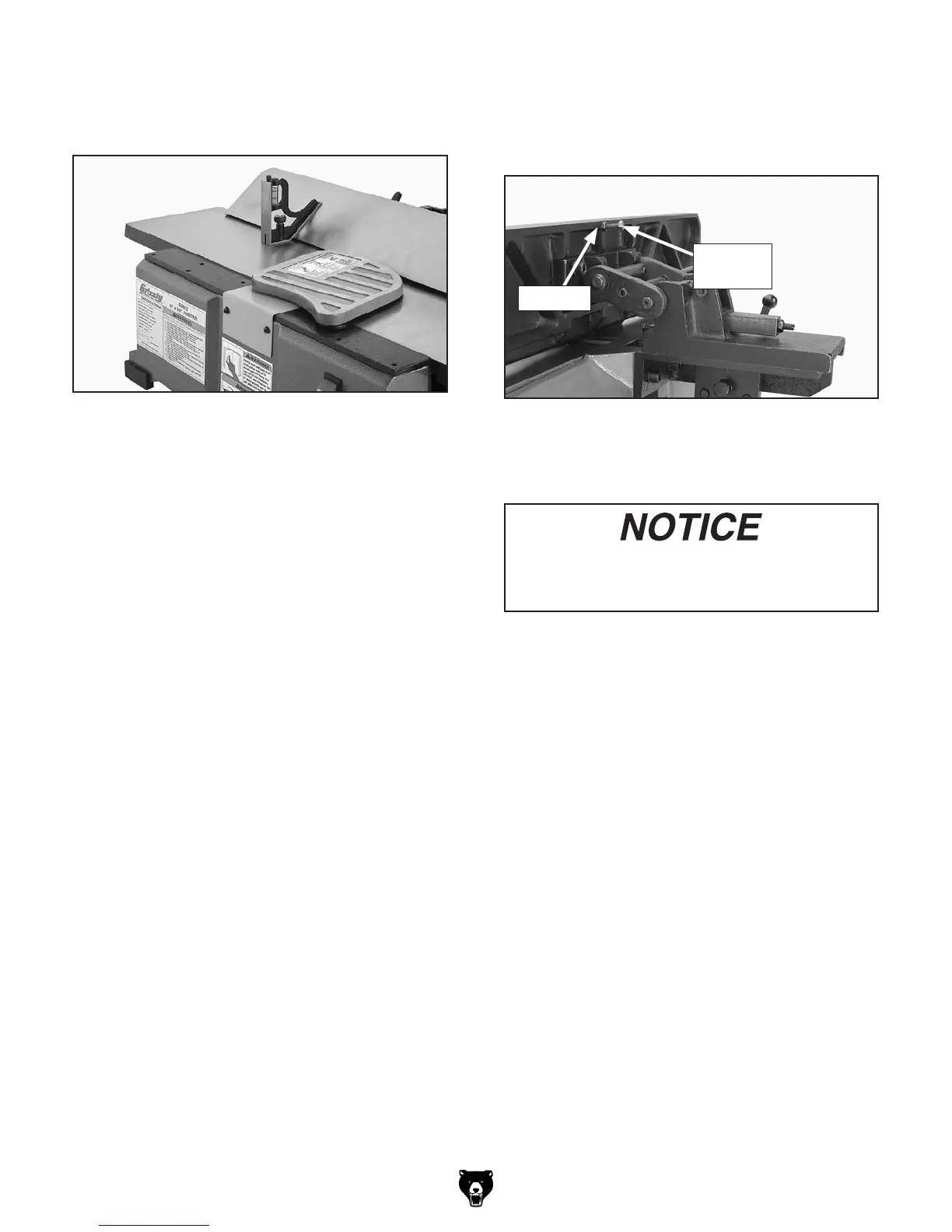

Figure 30. Checking the outward 45º stop.
—If the fence is tilting away from the table at
45º, the outward stop is set correctly. Put
the limit block back, bring the fence to 90°
and tighten the tilting handle.
—If the fence is not tilting away from the table
at 45º, do Steps 5–6 to set the outward
stop correctly.
5. With the outward stop bolt resting against the
fence bracket, adjust the length of the stop
until the fence is at 45º, then tighten the jam
nut (see Figure 31).
6. Put the limit block back, bring the fence to 90º
and tighten the fence tilting handle.
Check the accuracy of these settings fre-
quently with a machinist's combination
square and readjust them if necessary.
Figure 31. Outward stop bolt detail.
Outward
Stop Bolt
Jam Nut
To Next Page
