Model G0803Z (Mfd. Since 12/18)
-25-
Aligning Table
To ensure cutting accuracy, the table should be
aligned so that the miter slot is parallel to the
bandsaw blade.
Item(s) Needed Qty
Precision Straightedge ...................................... 1
Precision Ruler
.................................................. 1
Hex Wrench 6mm
.............................................. 1
Adjusting Miter Slot Parallelism
1. Make sure blade is tracking properly and cor-
rectly tensioned (refer to Pages 17 & 21).
2.
DISCONNECT MACHINE FROM POWER!
3.
Place straightedge along blade so it barely
touches both front and back of blade without
going across a tooth (see Figure
29).
4.
Measure distance between straightedge and
miter slot (see Figure
29). Distance should
be same at front and back of table.
— If distance is same at front and back of
table, no adjustment is necessary.
— If distance is not same at front and back
of table, it must be adjusted; proceed to
Step 5.

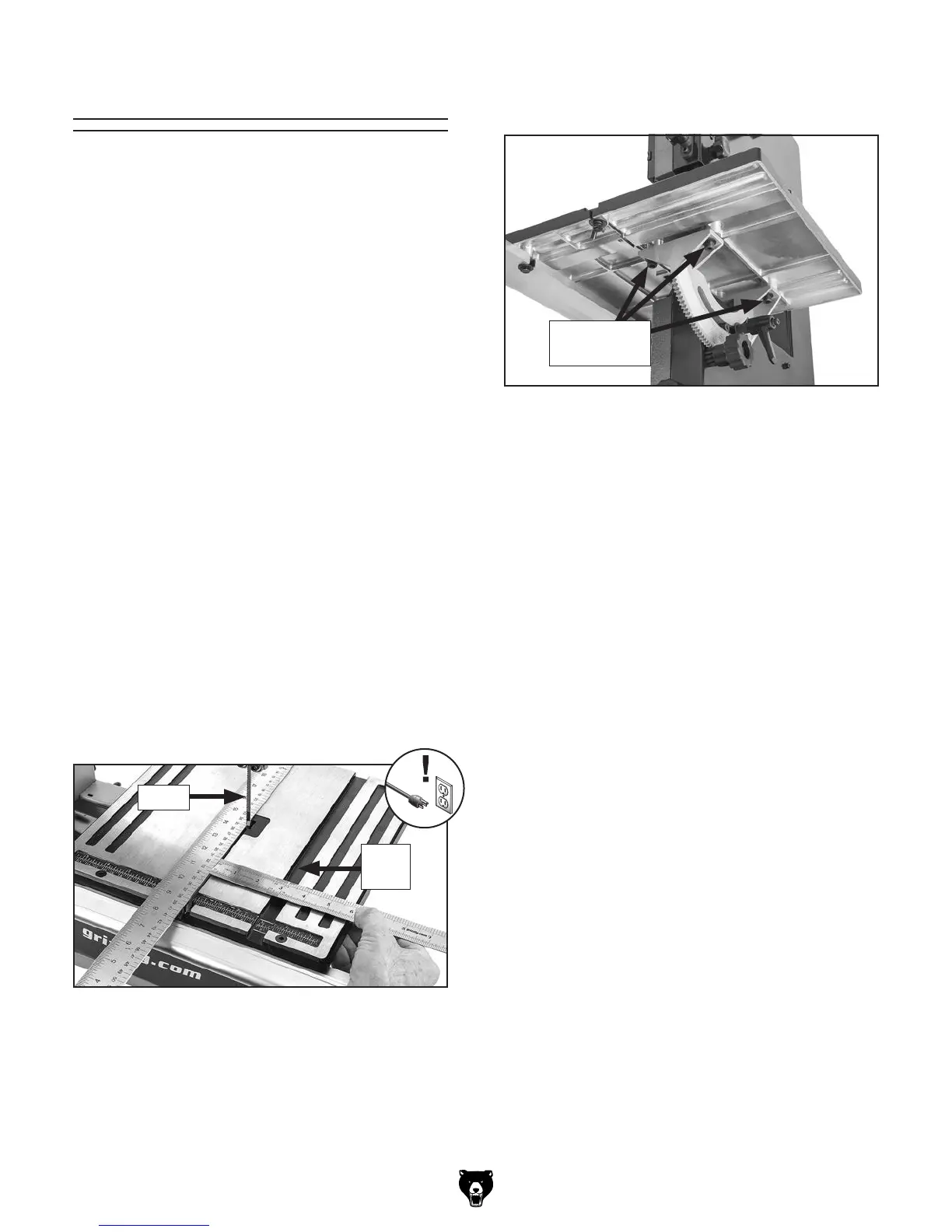

Figure 29. Example of placing a straightedge
along blade and measuring to miter slot.
Miter
Slot
Blade
Adusting Miter Slot Parallelism
Aligning Table
Figure 30. Location of trunnion cap screws.
5. Loosen trunnion cap screws that secure table
(see Figure
30).
6. Adjust table until distance between straight-
edge and miter slot is same at front and back
of table.
7.
Taking care not to move table, retighten trun-
nion cap screws, then repeat Step
4 to verify
adjustment.
Cap Screws
(3 of 4)
