-26-
Model G0803Z (Mfd. Since 12/18)
Aligning Fence
To ensure cutting accuracy, the fence should be
aligned parallel with the blade. This is achieved by
aligning the fence to the miter slot.
Note:
Occasionally, even after aligning the fence,
a symptom known as "blade lead" will develop,
requiring the fence to be skewed slightly to
compensate for the blade lead problem. Refer
to Blade Lead, beginning on Page 47 for more
information on blade lead and skewing the fence.
Item(s) Needed Qty
Hex Wrench 4mm .............................................. 1
To align fence:
1.
DISCONNECT MACHINE FROM POWER!
2. Make sure table is aligned with blade (see
Adjusting Miter Slot Parallelism on Page 25
for instructions).
3.
Install fence on right side of blade, aligned
with edge of miter slot, then lock it in place.
— If fence is parallel with miter slot, no
adjustment is necessary.
— If fence is not parallel with miter slot, pro-
ceed to Step 4.
4
. Remove cover caps and loosen (2) fence
adjustment cap screws (see
Figure 31),
adjust fence parallel with miter slot, then
re-tighten cap screws to secure setting.
Re-install cover caps.
Aligning Fence

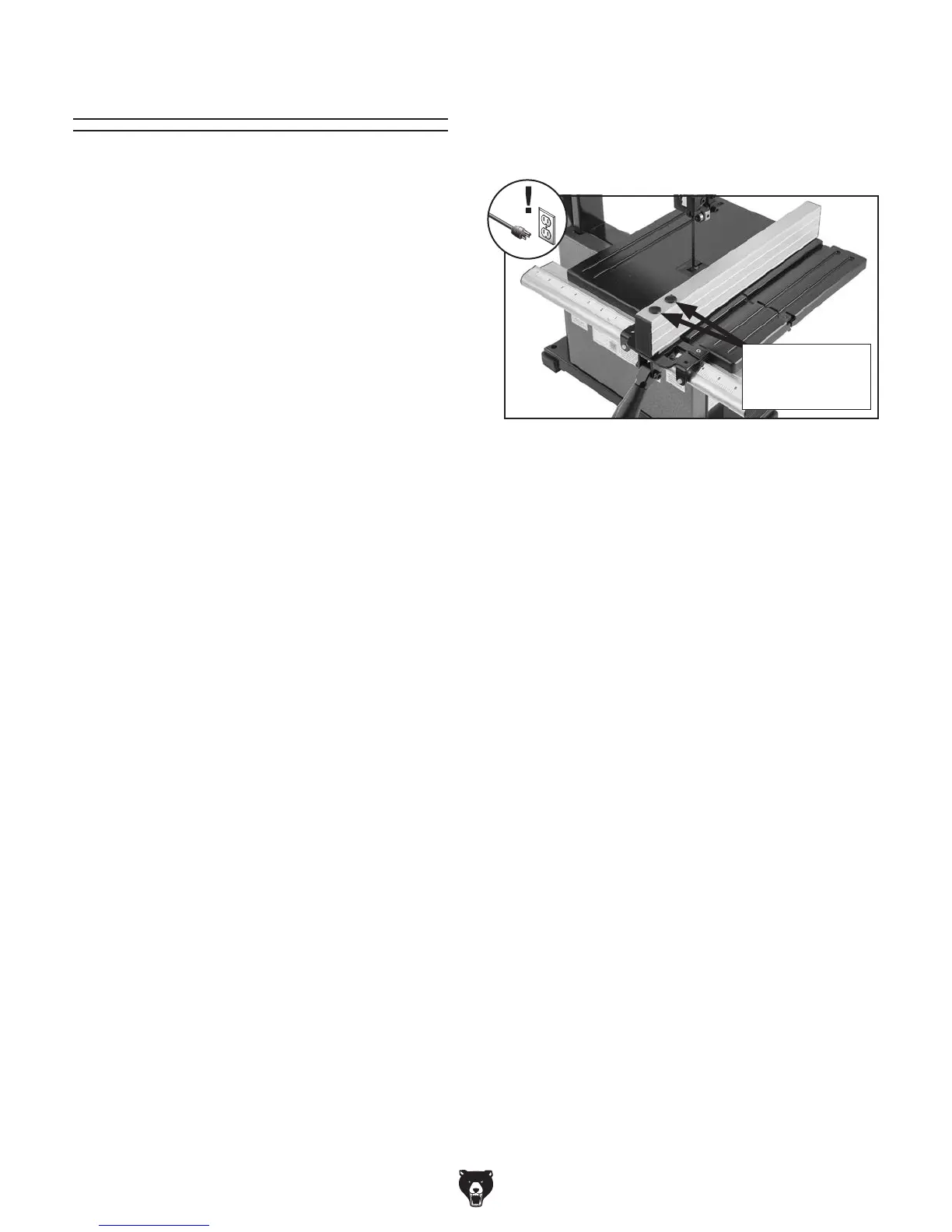

Figure 31. Location of fence adjustment cap
screws.
Remove Cover
Caps to Access
Cap Screws
4. Remove cover caps and loosen (2) fence
adjustment cap screws (see
Figure 31),
adjust fence parallel with miter slot, then
re-tighten cap screws to secure setting.
Re-install cover caps.
