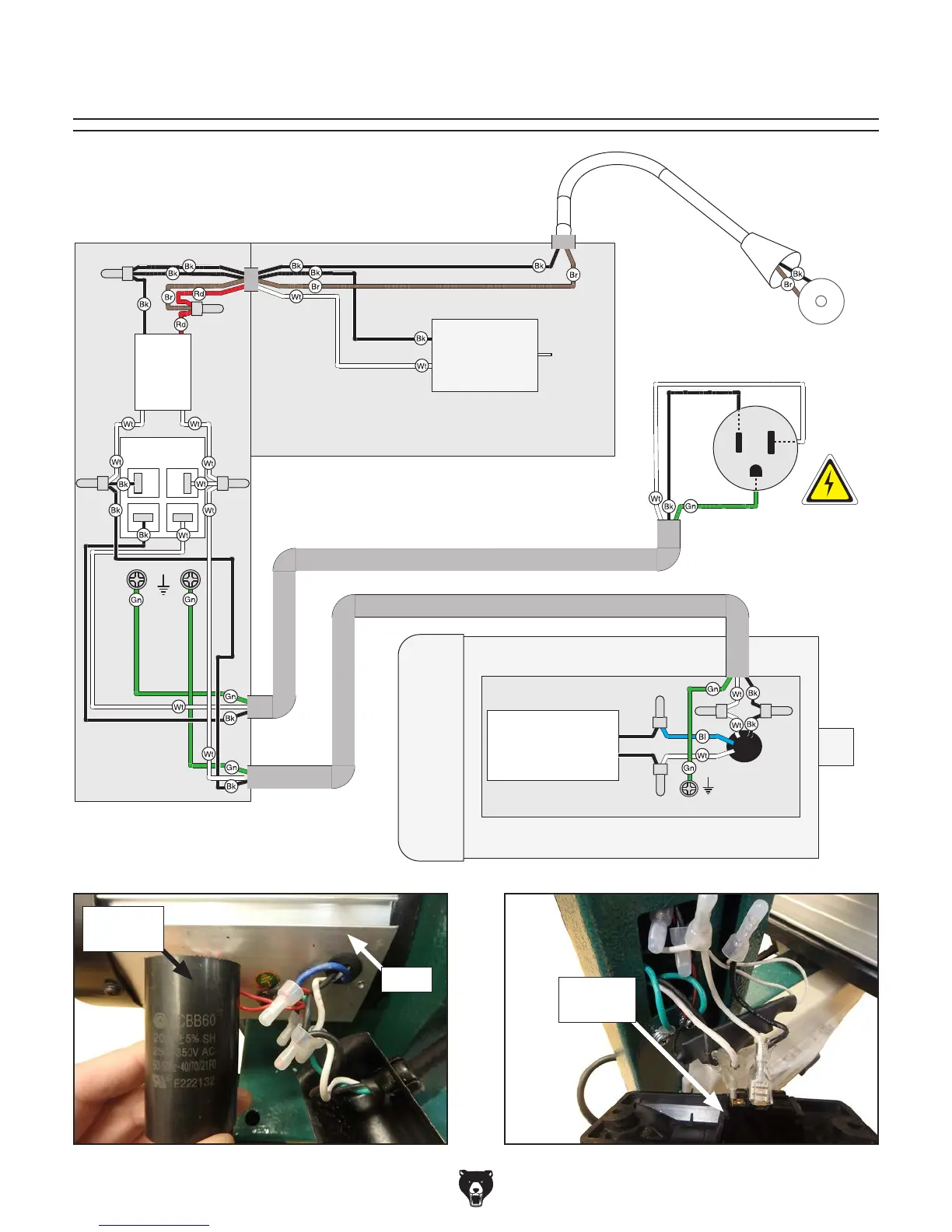

Grizzly G0803Z - Wiring Diagram

-50-
Model G0803Z (Mfd. Since 12/18)
120V Motor
Ground
Run Capacitor
20uF 250-350VAC
Work Lamp
Bandsaw Body
Bandsaw Column
5-15 Plug
120VAC
Ground
Hot
Neutral
Ground
Chip Blower Motor
Nanjing
12V 3.5W
LED Light
Nanjing
12V 1W
ON/OFF Switch
KEDU HY18
250V 12A
Transformer
Feng 009F
120V
Wiring Diagram
Figure 62. Motor and run capacitor wiring.
Figure 63. ON/OFF switch wiring.
ON/OFF
Switch
Motor
Run
Capacitor
