-40-
Model T31739 (Mfd. Since 11/19)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
REF PART # DESCRIPTION REF PART # DESCRIPTION
110 PT31739110 SPEED SENSOR CORD 24G 3W 10" 116 PT31739116 DRIFT KEY
113 PT31739113 HEX WRENCH 3MM 117 PT31739117 FLANGE SCREW M6-1 X 12
114 PT31739114 HEX WRENCH 4MM 118 PT31739118 EXT RETAINING RING 12MM
115 PT31739115 HEX WRENCH 5MM 119 PT31739119 SET SCREW M8-1.25 X 12

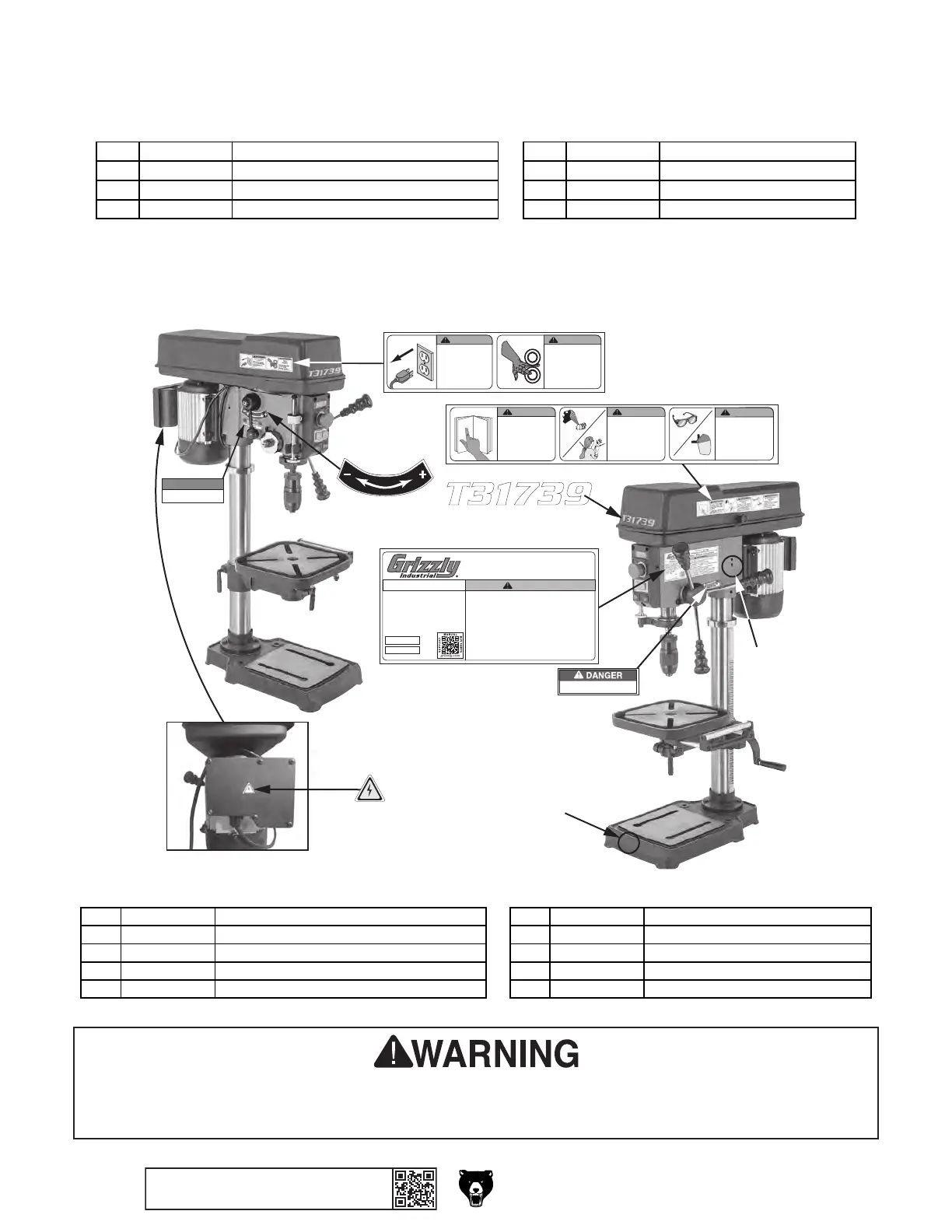

Main Parts List (Cont.)
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 PT31739201 SHOCK/PINCH HAZARD LABEL 206 PT31739206 MACHINE ID LABEL
202 PT31739202 MANUAL/ENTANGLEMENT/EYE-FACE LABEL 207 PT31739207 LASER LABEL
203 PT31739203 SPEED ADJUSTMENT LABEL 208 PT31739208 ELECTRICITY LABEL
204 PT31739204 SPEED NOTICE LABEL 209 PT31739209 TOUCH-UP PAI NT GRI ZZLY GREEN
205 PT31739205 MODEL NUMBER LABEL 210 PT31739210 TOUCH-UP PAI NT GRI ZZLY BLACK
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
Labels & Cosmetics
T31739
INJURY/SHOCK
HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.
Always keep this
cover closed
during operation.
PINCH
HAZARD!
WARNING!
WARNING!
ENTANGLEMENT
HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual, call
(800) 523-4777 or go to
www.grizzly.com.
WARNING!
Always wear
ANSI-approved safety
glasses and face
shield when using
this machine.
EYE/FACE INJURY
HAZARD!
WARNING!
WARNING!
+
–
201
202
203
204
205
206
207
208
MODEL T31739
12" VARIABLE-SPEED BENCHTOP
DRILL PRESS WITH LASER
Motor: 1/3 HP, 120V, 4.3A, 1-Ph, 60 Hz
Max Distance Spindle to Column: 6"
Max Distance Spindle to Table: 13-1/4"
Max Distance Spindle to Base: 20-1/4"
Spindle Speed Range: 300-3000 RPM
Drilling Capacity Mild Steel: 5/8"
Spindle Travel: 3-1/2"
Spindle Taper: MT#2
Weight: 93 lbs.
Specifications
WARNING!
Date
Mfd. for Grizzly in Taiwan
S/N
To reduce the risk of serious injury when using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear approved safety glasses.
3. Only plug power cord into a grounded outlet.
4. Disconnect power before setting up or servicing.
5. Tie back long hair, roll up long sleeves, and DO NOT wear loose
clothing, gloves, or jewelry.
6. Keep all guards and covers in place during operation.
7. Clamp workpiece to table to prevent rotation.
8. Avoid putting hands where they could slip into rotating bits.
9. Always remove chuck keys and other tools before starting.
10. Use correct speeds for drilling accessories and workpiece.
11. Do not expose to rain or use in wet locations.
12. Prevent unauthorized use by children or untrained users.
DO NOT look directly into the laser.
Serious eye damage will occur.
209
NOTICE
Only change speed while
spindle is turning.
210
To Next Page
