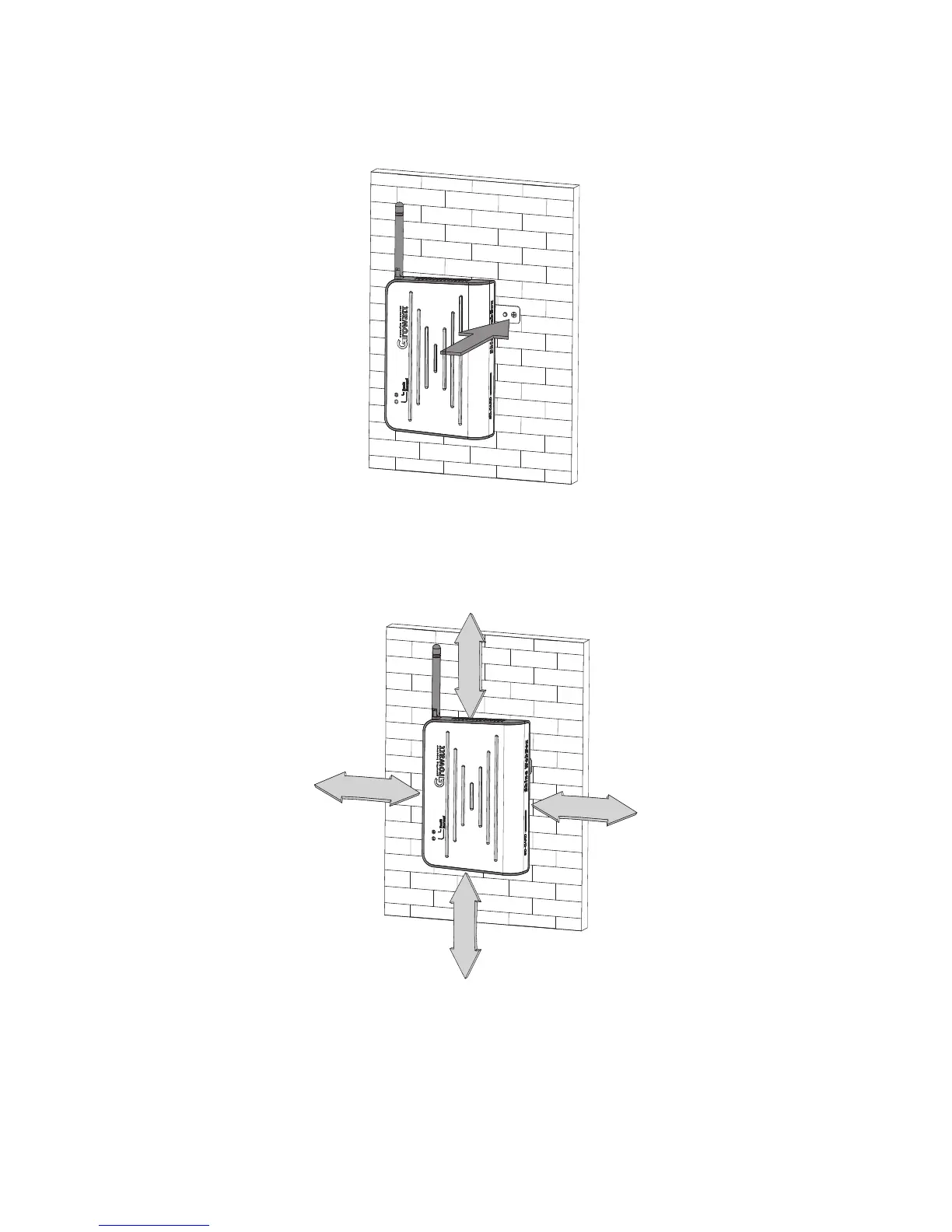

2. Hang Shine WebBox onto the bracket through the calabash ports in the back of
Shine WebBox.
3. Finish the mounting of Shine WebBox, notice the clearance of mounting.
4. Connect the Shine WebBox and inverter using RS485 cables via the RS485 ports on
them. Or Insert the ZigBee wireless module into RS232 port on inverter. Refer to
ZigBee Wireless Module User Manual.
5. Connect the network cable: insert the network connector to the LAN port on Shine
WebBox.
