7 Power Management
Shine WebBox power management is composed of active power reduction and
reactive power control components. To enable power management, a ripple control
receive is required. This function is available when user activates it. The COM ports of

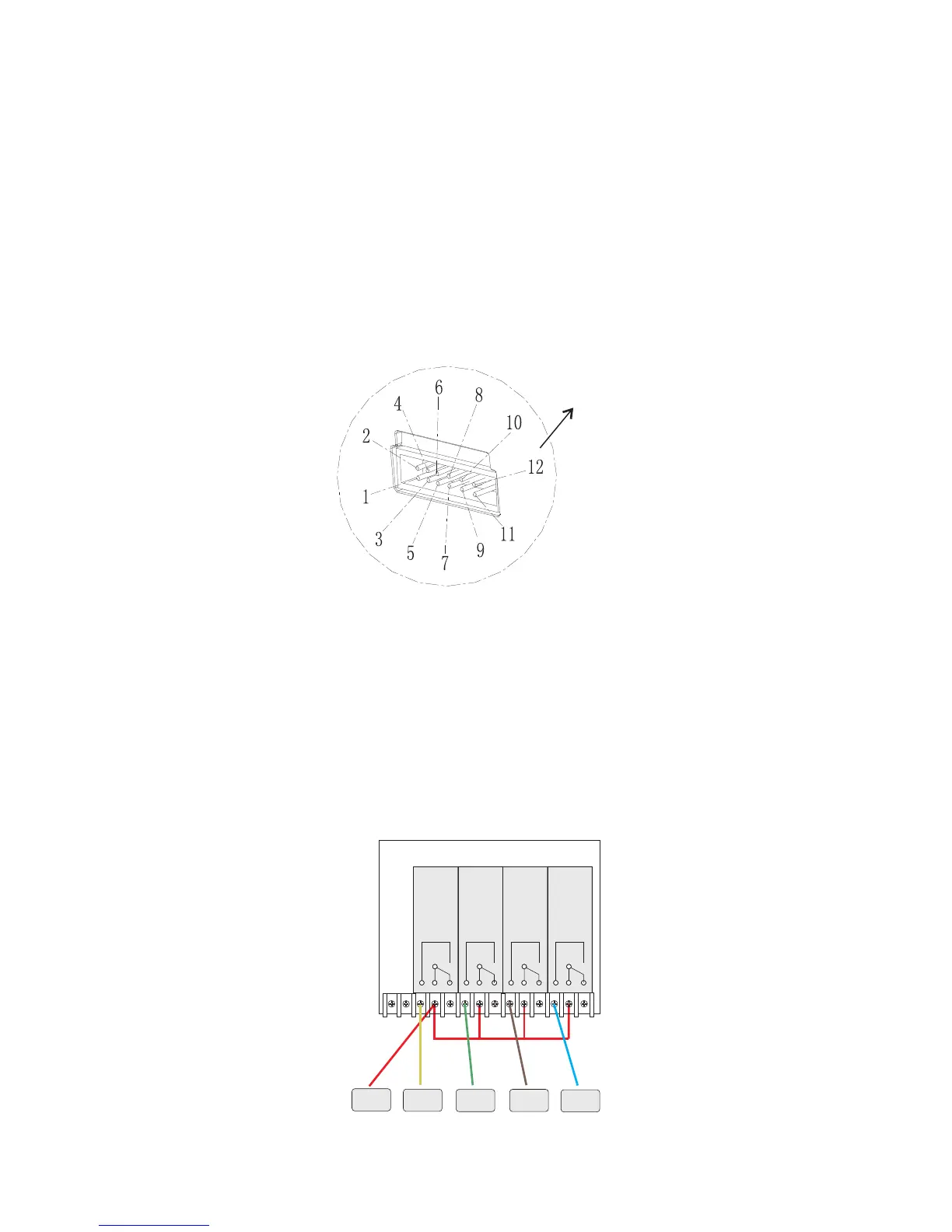

the Shine WebBox are shown as below. Pin 1,3,5,7,9,11 are used to connect the
ripple control receiver.
COM
7.1 Active Power Reduction
There are 4 power levels, 100%, 60%, 30% and 0%. The connection between ripple
control receiver and Shine WebBox is shown as below.
1
5
3
7
9
100%
60%
30%
0%
30
