The output reactive power of inverter depends on the operating relay. The detailed
information is shown as below. Pin 11 is connected to 3.3V dc source.
Pin
Explanation
9
7
5
3
0.99 PF
0.98 PF
0.97 PF
0.95 PF
Status
When the relay corresponding to pin 9 actions,
the power factor of the output power is 0.99
When the relay corresponding to pin 9 actions,
the power factor of the output power is 0.98
When the relay corresponding to pin 7 actions,
the power factor of the output power is 0.97
When the relay corresponding to pin 9 actions,
the power factor of the output power is 0.95
7.3 Manage Active and Reactive Power Simultaneously

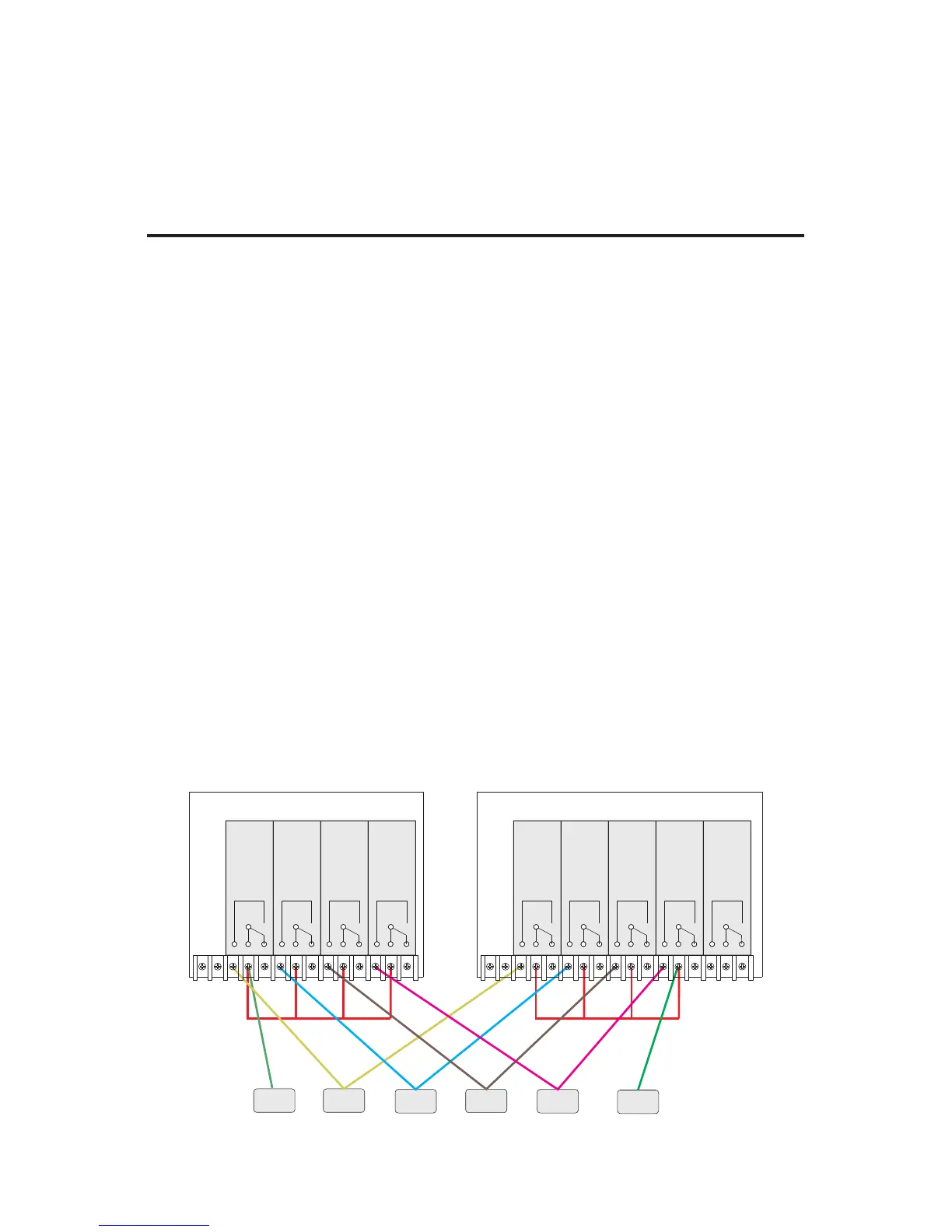

If active power and reactive power need to be managed at the same time, connect
the Shine WebBox with two ripple control receivers as below.
1
5
7
9
11
3
32
