Growatt SPH-UP Series User Manual

This manual will provide the users who use the SPH Series of GROWATT NEW ENERGY
TECHNOLOGY CO.LTD.SHENZHEN (Short for GROWATT New Energy as below) with the
detailed product information and the installation instructions. Please read this manual
carefully and put this manual on some place where is convenient to installation,
operation, obtain. Any modifications of GROWATT new energy, we will not notify the
user.
SPH inverter must be installed by professional electrical personnel who have obtained
the certification of the relevant departments.
We have two kinds of SPH inverter for different battery types, one is for lithium battery
and the other is for lead-acid battery. We recommend customer should decide which kind
of inverter if required prior to purchasing. GROWATT can only provide lithium battery
that is compatible with inverter, no lead-acid battery will be provided by Growatt as
customer can easily buy these from the market. It is dangerous if customer choose
inverter compatible with lithium battery (which must be provide by GROWATT) but uses it
for lead-acid battery or uses lead-acid battery for lithium battery inverter.
Installer can install SPH Series inverters rapidly, build communication system or
troubleshoot by reading this manual carefully. If you have any questions in the process of
installation, you can login in www.growatt.com and leave some message. Or you can call
our 24-hour service hotline +86 (0)755 2747 1942
1.2 Target Group
1 Brief Introduction
1.1 Preface
SPH Series is used to store energy generated by the photovoltaic cell panels or energy
from grid if it is allowed in the battery, also energy can be sent to power grid through
SPH for self consumption or when Grid power is lost, SPH can be used as backup
power.
SPH series has six kinds of type:
• SPH 3000 TL BL-UP
• SPH 3600 TL BL-UP
• SPH 4000 TL BL-UP
• SPH 4600 TL BL-UP
• SPH 5000 TL BL-UP
• SPH 6000 TL BL-UP
Note: we describe this series as “SPH” as below.
Note: In different country, we provide different power. Such as in Germany, we can
provide SPH 3000~SPH 4600TL BL-UP, but we don't provide SPH 5000TL BL-UP and
SPH 6000TL BL-UP.

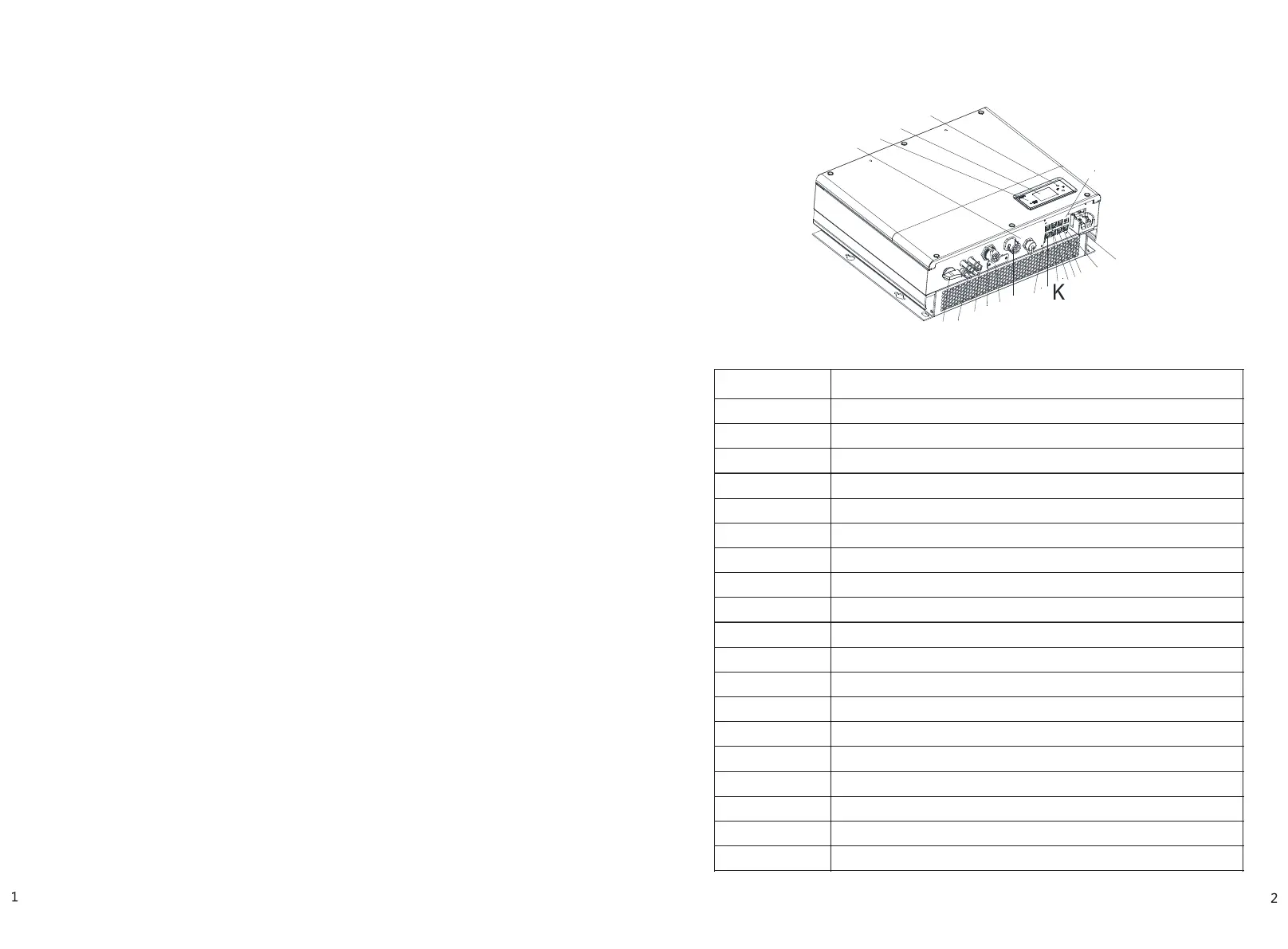

1.3 Product Description
Position
Description
A
USB interface
B
LED of status display
C
LCD screen
D
Function button
E
Dry contact
F
Battery terminal
G
VPP communication
H
RS485-2 communication
I
RS485-1 communication
J
NTC: Lead-acid temperature sensor terminal
K
CAN communication interface of Lithium battery
L
RJ45 interface of DRMs(used only in Australia)
M
RS485 communication interface of Merter/CT input terminal
N
AC Grid (on grid connection)
O
RSD(do not open except by Professional staff)
P
EPS output(off grid connection)
Q
Ground point
R
PV input
S
PV switch
Overview:
Chart 1.1
A
B
C
D
E
F
G
H
I
J
L
M
N
O
P
Q
R
S

Growatt SPH-UP Series Specifications

General

Type	Hybrid Inverter
Protection Rating	IP65
Number of MPPTs	2
AC Voltage Range	180-280V
THDi	<3%
AC Grid Frequency	50/60Hz
Communication Interfaces	Wi-Fi, RS485, USB
Nominal AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Cooling
