Growatt SPH-UP Series User Manual

3 Product Description
3.1 SPH series inverter

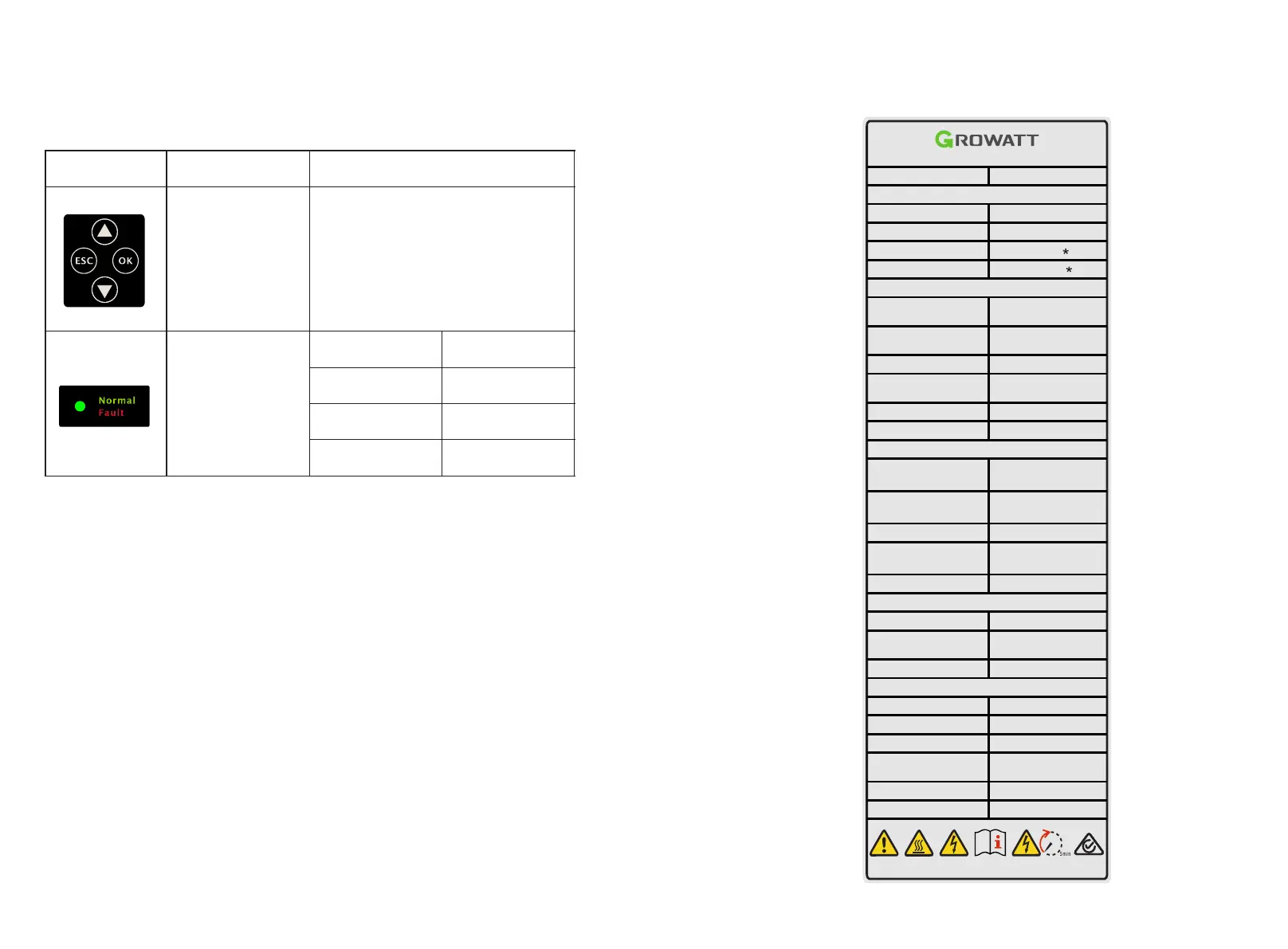

Marks of SPH
Mark
Description
Explanation
Push-button
Operation of display screen and set system
Status symbol of SPH
Green light on
SPH run normally
Red light on
Fault state
Green light blinking
1.Alarm state
Red light blinking
2.Software updating
7
8
3.2 Label Explanation
4
3
Made in China
PV input data
PV voltage range
Max. input current
Nominal voltage
Power factor range
Nominal Frequency
Model name
Max.PV voltage
0.8leading~0.8lagging
Hybrid Inverter
50/60 Hz
Stand alone data
Battery data
Battery voltage range
Type of battery
Others
Safety level
Ingress Protection
Operation Ambient
Temperature
Nominal AC output
power
Nominal AC output
voltage
Nominal AC output
Frequency
50/60 Hz
Max. charging and
discharging current
Class I
-25°C - +60°C
AC output/input data
Nominal input/output
power
Max. output apparent
power
Max. input/output
current
Lithium / Lead-acid
Certificate No.
Growatt SPH 5000
550 d.c.V
120-550 d.c.V
4999/4999 W
4999 VA
230 a.c.V
22/22 a.c.A
3000 W
230 a.c.V
42-59 d.c.V
66 d.c.A
SAA181155
X
13.5 d.c.A 2
Made in China
PV input data
PV voltage range
Max. input current
Nominal voltage
Power factor range
Power factor range
Nominal Frequency
Model name
Max.PV voltage
0.8leading~0.8lagging
0.8leading~0.8lagging
Hybrid Inverter
50 Hz
EPS output data
Battery data
Battery voltage range
Rated output current
Type of battery
Others
Safety level
Ingress Protection
Operation Ambient
Temperature
Rated AC output
power
Rated AC output
voltage
Rated AC output
Frequency
50 Hz
Rated charging and
discharging current
Class I
IP65
-25°C - +60°C
AC output/input data
Rated input/output
power
Rated output apparent
power
Rated input/output
current
Lithium / Lead-acid
Certificate No
SPH 6000TL BL-UP
550 d.c.V
120-550 d.c.V
6000/6000 W
6000 VA
230 a.c.V
27/27 a.c.A
4000 VA
230 a.c.V
17.5 a.c.A
42-59 d.c.V
85 d.c.A
SAA211107
X
13.5 d.c.A 2
Overvoltage category
PV:II AC:III Others:I
Inverter topology
Non-isolated
PV IscPV Isc
20 d.c.A 2

Growatt SPH-UP Series Specifications

General

Type	Hybrid Inverter
Protection Rating	IP65
Number of MPPTs	2
AC Voltage Range	180-280V
THDi	<3%
AC Grid Frequency	50/60Hz
Communication Interfaces	Wi-Fi, RS485, USB
Nominal AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Cooling
