Growatt SPH-UP Series User Manual

4 Unpacking

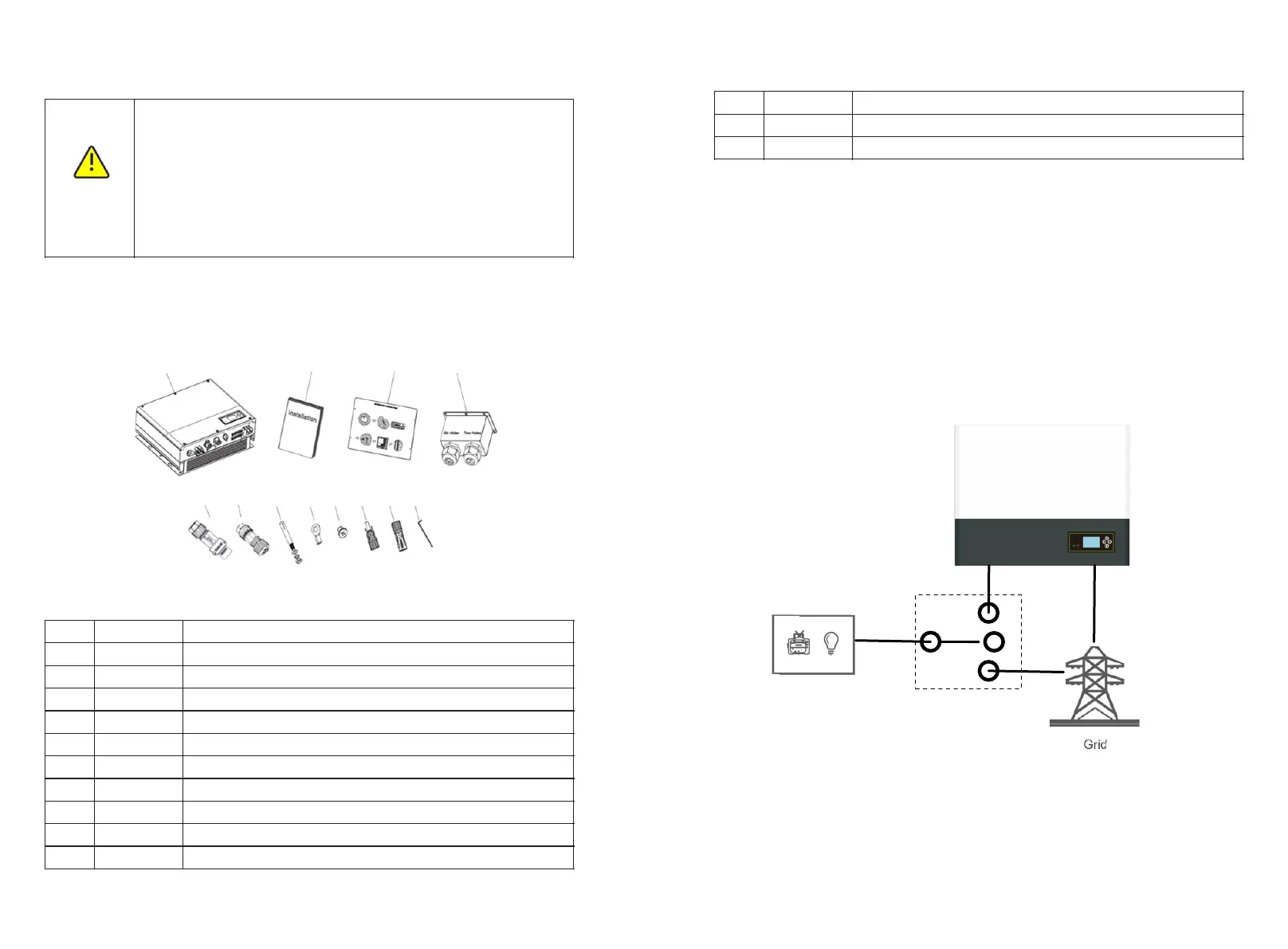

Growatt SPH series and accessories as follows:
Chart 4.1
× Please check that the package is in good condition before
unpacking to ensure that there are no transportation or handling
damage that may affect the insulation integrity or safety clearance;
Failure to do so could result in a safety hazard.
× Unauthorized removal of necessary protections, improper use,
incorrect installation and operation may lead to serious safety and shock
hazards and/or equipment damage.
× In order to reduce the damage caused by the moving process, please
move the inverter correctly. The total weight of the SPH series inverter is
up to 27KG.
Warning
Please check whether external damage to the goods before unpacking.
After unpacking, please check whether the unit damage or missing parts, if it is happen,
please contact with supplier.
Item
Number
Description
A
1
SPH inverter
B
1
User Manual
C
1
Paper board(installation guide)
D
1
Waterproof cover
E
1
AC Grid connector
F
1
EPS output connector
G
4
M6 setscrew
H
2
Battery power terminal
I
6
screw
J
2
MC4 connector
12
11
Item
Number
Description
K
2
MC4 connector
M
1
Hex screwdriver
1
0
2
EPS Grid
SWITCH
EPS Load
SPH-UP has an Uninterrupted Power Supply(UPS) level switch with a
maximum 16ms transfer time. But can not use it as a Uninterrupted
Power Supply(UPS) for critical scenarios like medical power source. For
maintenance purposes, a T5B-2-8400/E is needed on EPS and on-grid
side. T5B-2-8400/E is an optional choice for installers, it will provide a
power supply for EPS load when SPH-UP is under maintenance.
0.The EPS load is vacant;
1.The EPS load is powered from the EPS side;
2.The EPS load is powered from the Grid side.
Chart 4.2
A B C D
E F G H I J K M

Growatt SPH-UP Series Specifications

General

Type	Hybrid Inverter
Protection Rating	IP65
Number of MPPTs	2
AC Voltage Range	180-280V
THDi	<3%
AC Grid Frequency	50/60Hz
Communication Interfaces	Wi-Fi, RS485, USB
Nominal AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Cooling
