Grundfos CME Installation And Operating Instrictions

13
English (US)

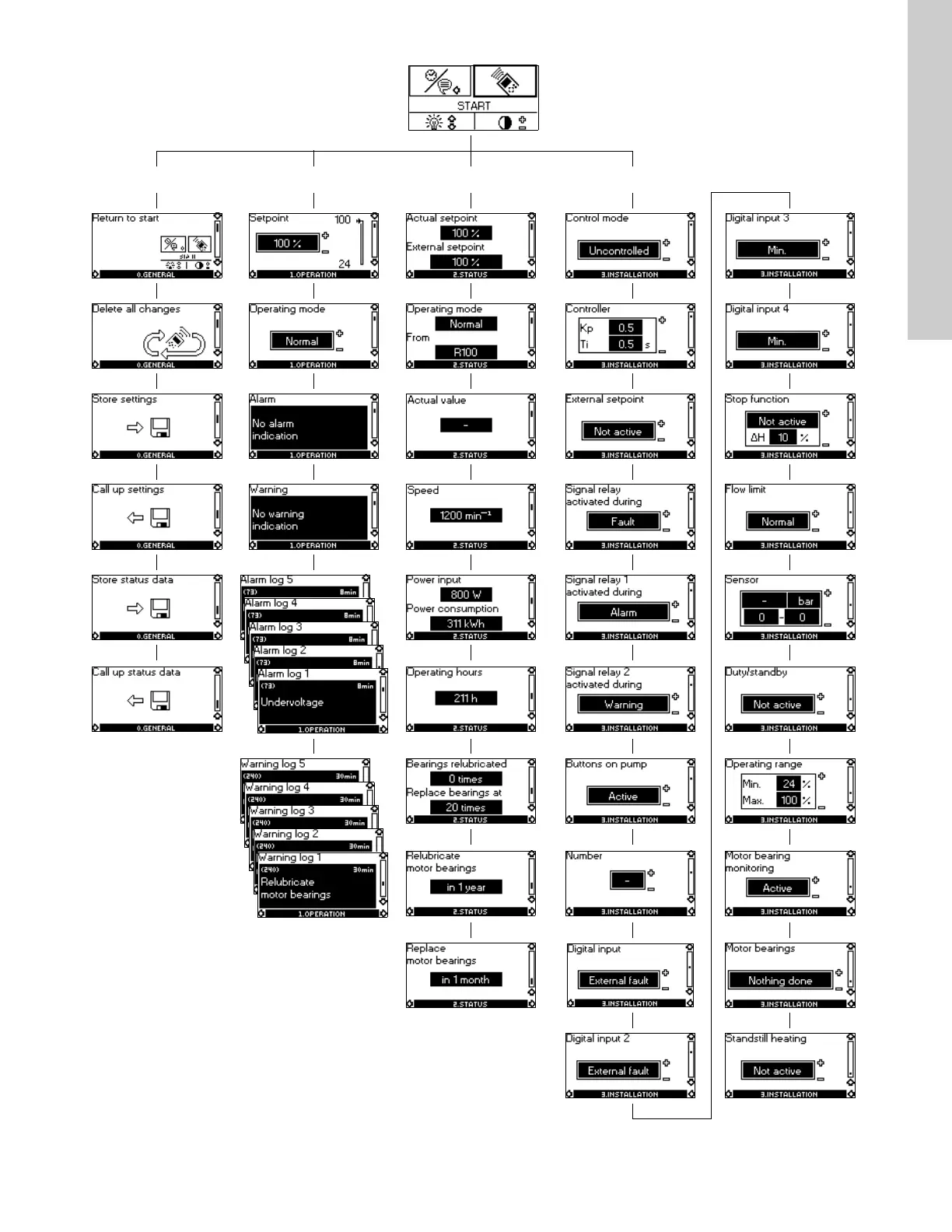

Fig. 26 Menu overview
0. GENERAL 1. OPERATION 2. STATUS 3. INSTALLATION
10.1.1 10.2.1 10.3.1 10.3.7
10.1.2 10.2.2 10.3.2 10.3.7
10.1.3 10.2.3 10.3.3 10.3.8
10.1.3 (1) 10.2.4 10.3.4 (3) 10.3.9 (1)
10.1.4 10.2.5 10.3.4 - 1 (2) 10.3.10
10.2.6 10.3.4 - 2 (2) 10.3.11 (1)
10.1.4 (1) 10.2.7 (2) 10.3.5 10.3.12
10.2.8 (2) 10.3.6 10.3.13 (1)
10.2.9 (1) 10.3.7 10.3.14 (1)
10.3.7 10.3.15 (1)
(1) This display only appears for three-phase pumps, 1.5 - 30 hp.
(2) This display only appears for three-phase pumps, 15 - 30 hp.
(3) This display only appears for three-phase pumps, 1.5 - 10 hp.

Grundfos CME Specifications

General

Liquid temperature range	0 °C to +60 °C
Maximum operating pressure	10 bar
Series	CME
Frequency	50/60 Hz
Max Pressure	10 bar
Pump Type	Centrifugal
Material	Stainless steel
Applications	pressure boosting, irrigation
Pumped liquid	Clean water
Approvals	CE
Max Liquid Temperature	60°C
Power Supply	1-phase or 3-phase
