7
English (US)

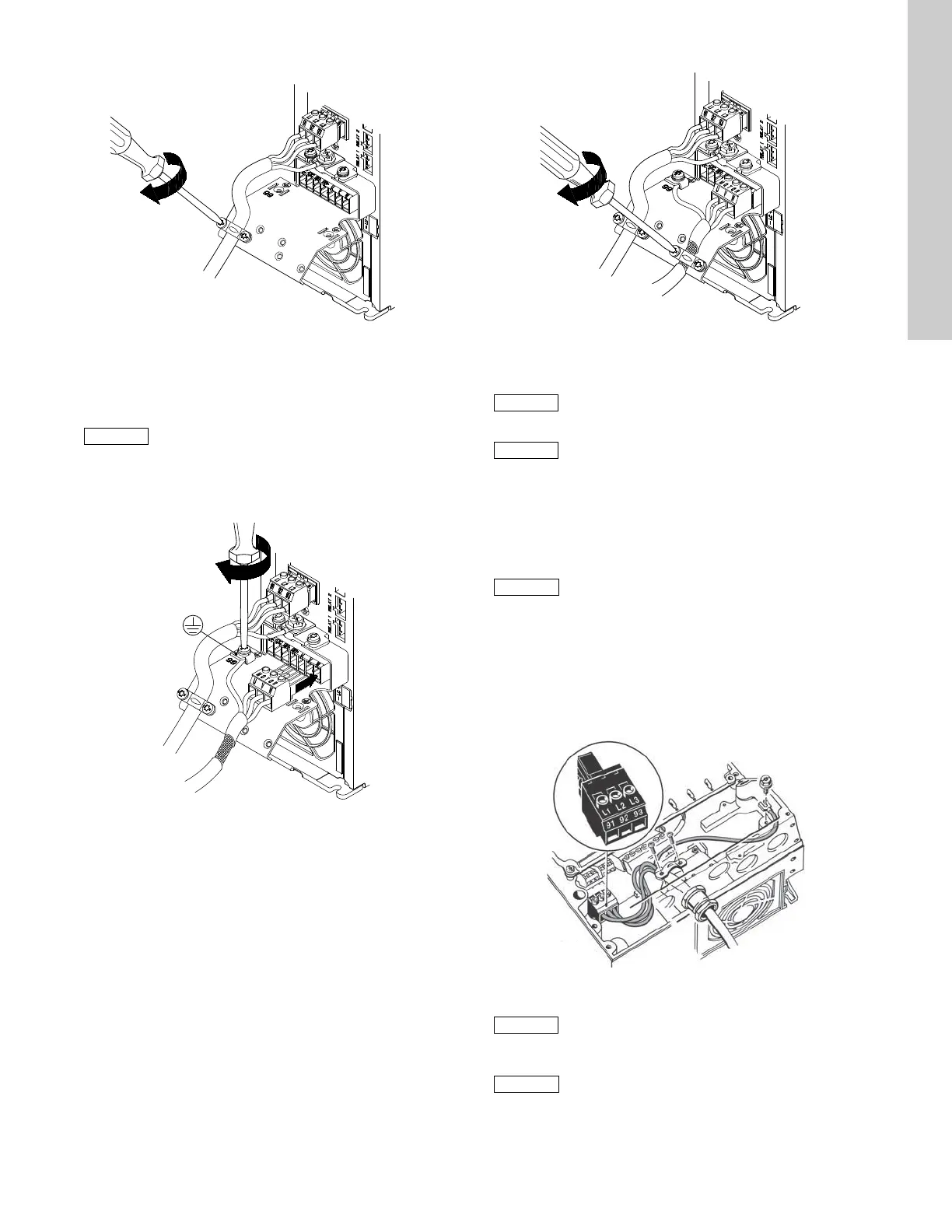

3. Fix the mains cable to the mounting plate.
Fig. 9 Fixing the mains cable
7.2.4 Motor connection, enclosures A2 and A3
For information about enclosures, see table in section
17.1 Enclosure.
1. Connect the ground conductor to terminal 99 (PE) on the
mounting plate. Connect the motor conductors to
terminals 96 (U), 97 (V), 98 (W) of the motor plug.
Fig. 10 Connecting the ground conductor and motor
conductors
2. Put the motor plug into the socket marked MOTOR. Fix the
screened cable to the mounting plate with a cable clamp.
Fig. 11 Connecting the motor plug and fixing the screened
cable
7.2.5 Enclosures A4 and A5
For information about enclosure, see table in section
17.1 Enclosure.
Mains connection
1. Connect the ground conductor to terminal 95 (PE).
See fig. 12.
2. Connect the mains conductors to terminals 91 (L1), 92 (L2),
93 (L3) of the mains plug.
3. Put the mains plug into the socket marked "MAINS".
4. Fix the mains cable with a cable clamp.
Fig. 12 Mains connection, A4 and A5
Motor connection
TM03 9014 2807
The motor cable must be screened for the CUE to
meet EMC requirements.
TM03 9013 2807
TM03 9012 2807
Cable screens must be grounded at both ends.
The cable screen must be exposed and in
physical contact with the mounting plate and
clamp.
Check that mains voltage and frequency
correspond to the values on the nameplate of the
CUE and the motor.
TM03 9017 2807
For single-phase connection, use L1 and L2.
The motor cable must be screened for the CUE to
meet EMC requirements.
