1. Connect the ground conductor to terminal 99 (PE).
See figs 16 and 17.
2. Connect the motor conductors to terminals 96 (U), 97 (V),
98 (W).
3. Fix the screened cable with a cable clamp.

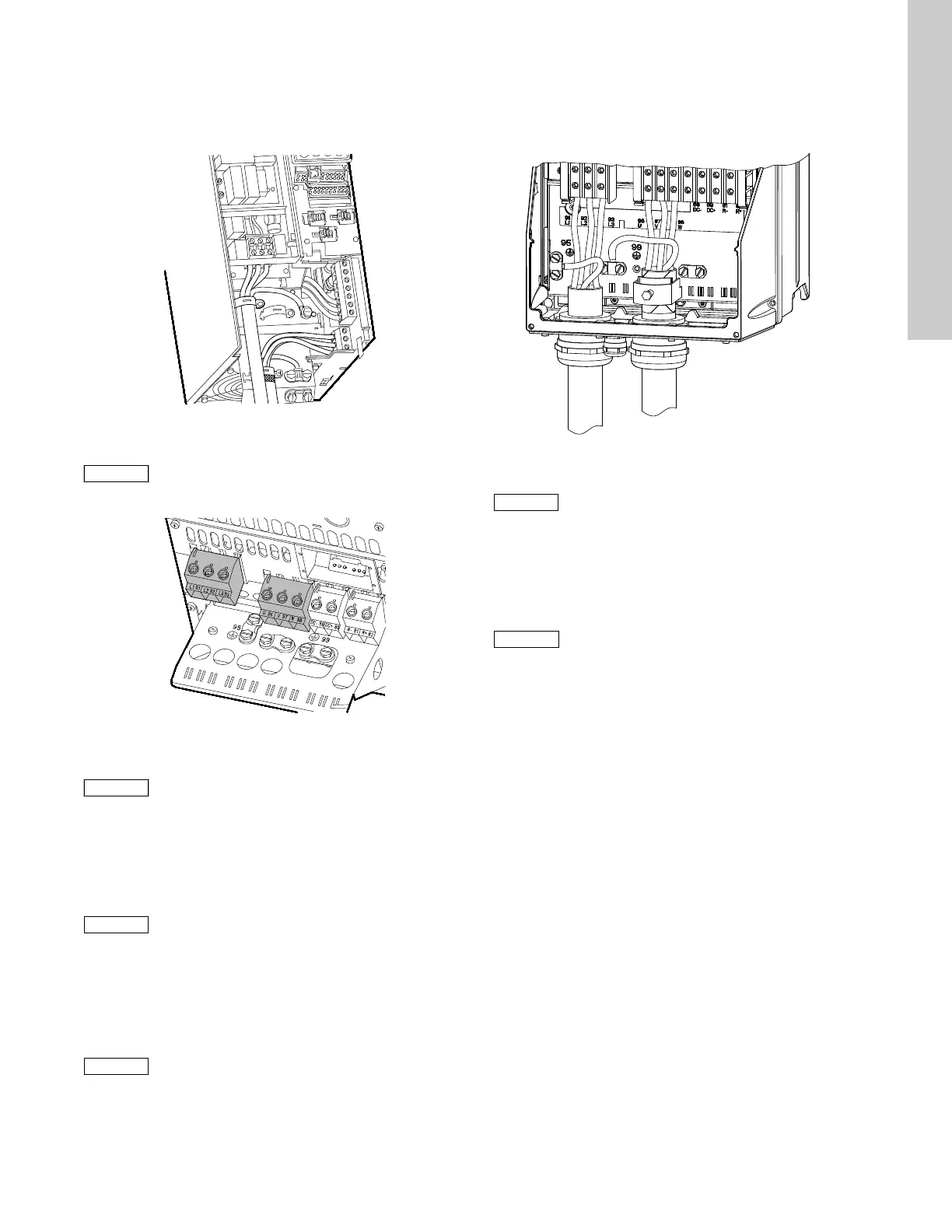

Fig. 16 Mains and motor connection, B3
Fig. 17 Mains and motor connection, B4
7.2.8 Enclosures C1 and C2
For information about enclosure, see table in section
17.1 Enclosure.
Mains connection
1. Connect the ground conductor to terminal 95 (PE).
See fig. 18.
2. Connect the mains conductors to terminals 91 (L1), 92 (L2),
93 (L3).
Motor connection
1. Connect the ground conductor to terminal 99 (PE).
See fig. 18.
2. Connect the motor conductors to terminals 96 (U), 97 (V),
98 (W).
3. Fix the screened cable with a cable clamp.
Fig. 18 Mains and motor connection, C1 and C2
7.2.9 Enclosures C3 and C4
For information about enclosure, see table in section
17.1 Enclosure.
Mains connection
1. Connect the ground conductor to terminal 95 (PE).
See figs 19 and 20.
2. Connect the mains conductors to terminals 91 (L1), 92 (L2),
93 (L3).
TM03 9446 4007
The cable screen must be exposed and in
physical contact with the mounting plate and
clamp.
TM03 9449 4007
The cable screen must be exposed and in
physical contact with the mounting plate and
clamp.
Check that mains voltage and frequency
correspond to the values on the nameplate of the
CUE and the motor.
The motor cable must be screened for the CUE to
meet EMC requirements.
TM03 9016 2807
The cable screen must be exposed and in
physical contact with the mounting plate and
clamp.
Check that mains voltage and frequency
correspond to the values on the nameplate of the
CUE and the motor.
