Grundfos MAGNA1 C Series User Manual

Appendix
34
Appendix 1

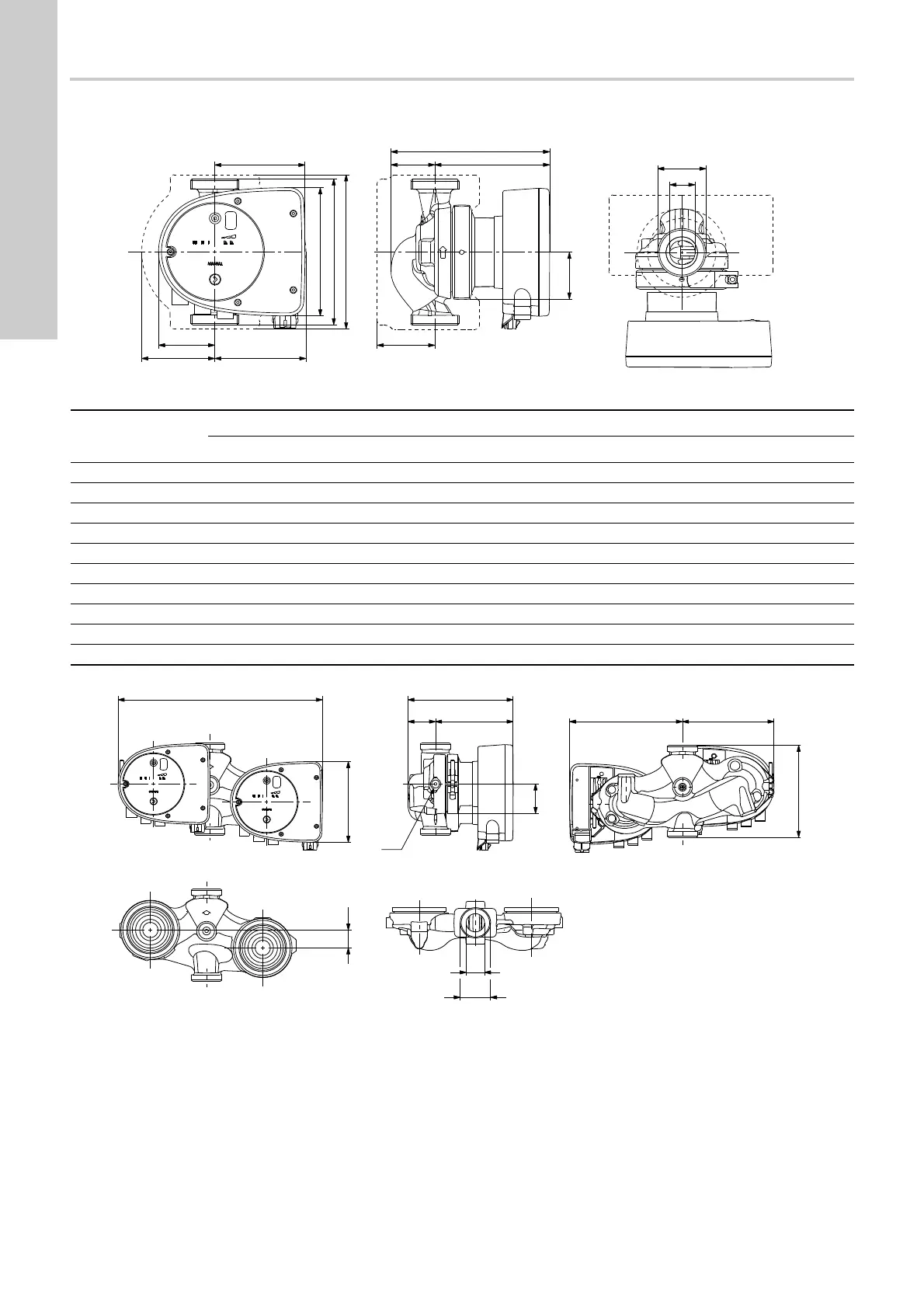

1. Dimensions, threaded versions
Fig. 1 Single-head pump dimensions, threaded version
Fig. 2 Twin-head pump dimensions, threaded version
TM06 9948 3717
Pump type
Dimensions [mm] [inch]
L1 L5 L6 B1 B2 B4 B6 B7 H1 H2 H3 H4 D1 G
MAGNA1 25-40 (N) 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2
MAGNA1 25-60 (N) 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2
MAGNA1 25-80 (N) 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2
MAGNA1 25-100 (N) 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2
MAGNA1 25-120 (N) 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2
MAGNA1 32-40 (N) 180 158 190 58 111 69 90 113 54 142 196 71 32 2
MAGNA1 32-60 (N) 180 158 190 58 111 69 90 113 54 142 196 71 32 2
MAGNA1 32-80 (N) 180 158 190 58 111 69 90 113 54 142 196 71 32 2
MAGNA1 32-100 (N) 180 158 190 58 111 69 90 113 54 142 196 71 32 2
MAGNA1 32-120 (N) 180 158 190 58 111 69 90 113 54 142 196 71 32 2
D1
G
L6 L1
B6
B4
L5
B7
B2
H3
H2
B1
H1
H4
TM07 0068 4117
B1
G
D1
L5
B3 H3
H1
L1
L7
B5 B4H2
M3

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
