Grundfos MAGNA1 C Series User Manual

Appendix
35
2. Dimensions, flanged versions

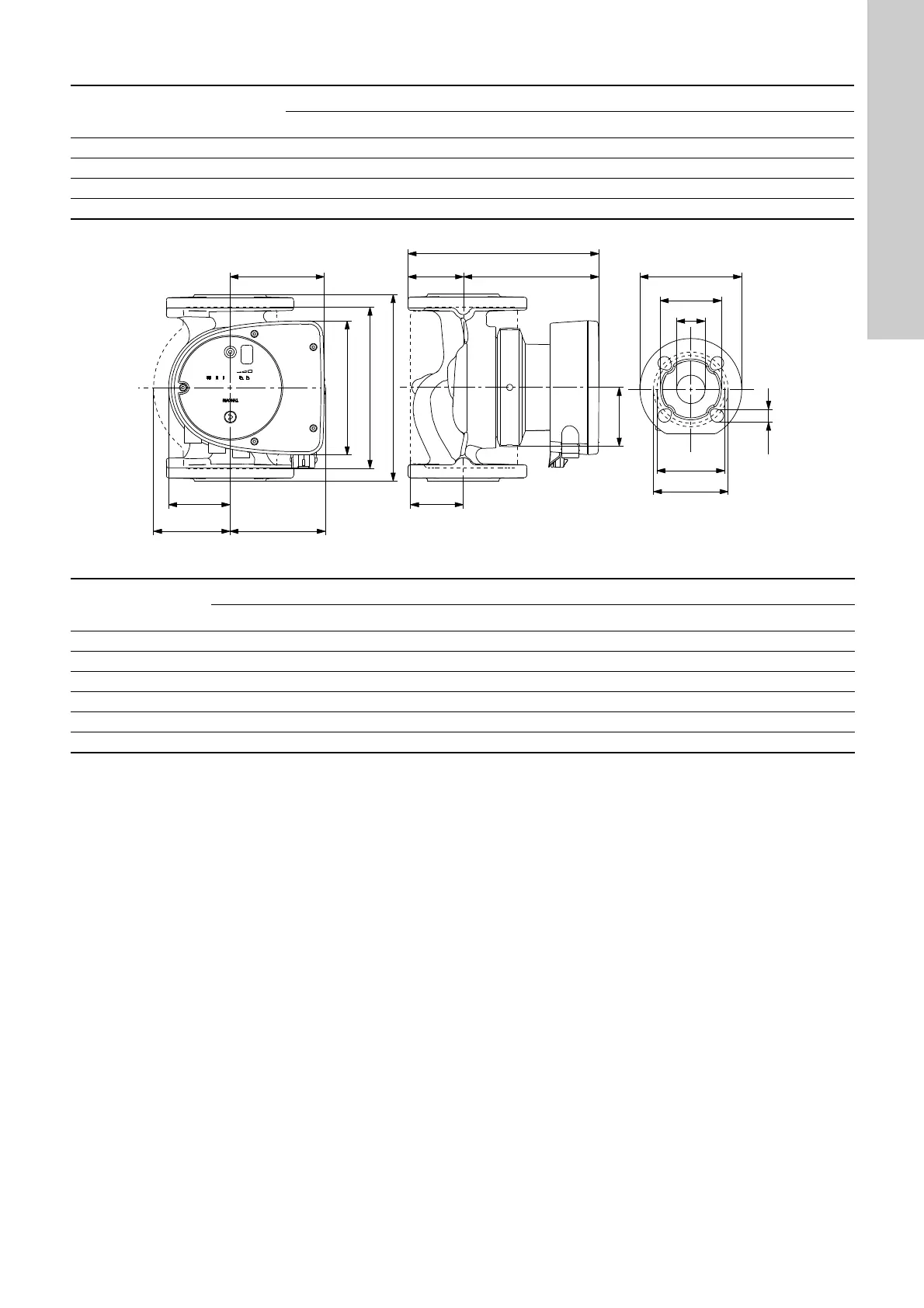

Fig. 3 Single-head pump dimensions, plug-connected versions, flanged version
Pump type
Dimensions [mm] [inch]
L1 L5 L7 B1 B3 B4 B5 H1 H2 H3 D1 G M3
MAGNA1 D 32-40 180 158 35 58 400 179 221 54 142 196 32 2 1/4
MAGNA1 D 32-60 180 158 35 58 400 179 221 54 142 196 32 2 1/4
MAGNA1 D 32-80 180 158 35 58 400 179 221 54 142 196 32 2 1/4
MAGNA1 D 32-100 180 158 35 58 400 179 221 54 142 196 32 2 1/4
TM07 0067 4117
D4
D2
D1
B1
H1 H2
H3
H4B4
B6 B7
L5
L6
L1
B2
D5
D3
D3
Pump type
Dimensions [mm]
L1 L5 L6 B1 B2 B4 B6 B7 H1 H2 H3 H4 D1 D2 D3 D4 D5
MAGNA1 32-40 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 32-60 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 32-80 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 32-100 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 40-40 F (N) 220 158 220 58 111 69 105 105 65 156 221 83 40 84 100/110 150 14/19
MAGNA1 40-60 F (N) 220 158 220 58 111 69 105 105 65 156 221 83 40 84 100/110 150 14/19

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
